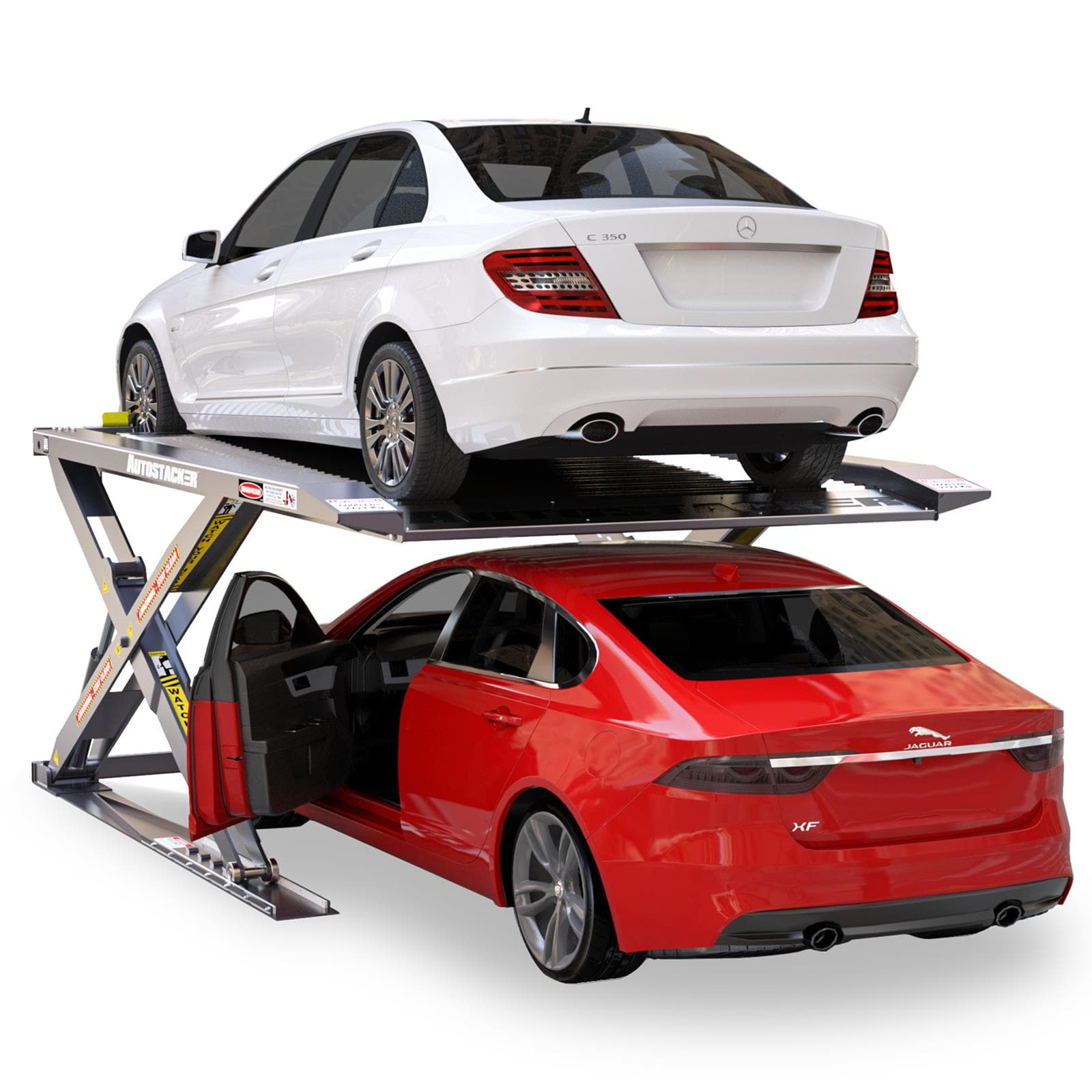

BendPak 5175281 A6S-OPT3-G Parking Lift – 6K, Aft, Galv.
- 6,000 lb. Standard Aft Control Galvanized AutoStacker parking lift
- Platform 83.75" x 124"; 6 automatic lock positions
- Galvanized deck; corrosion resistant; indoor or outdoor
$12,005.00
/each
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Product Summary
6000 lbs. Lifting Capacity, 91" Overall Height
- 6,000 lb. Standard Aft Control Galvanized AutoStacker parking lift
- Platform 83.75" x 124"; 6 automatic lock positions
- Galvanized deck; corrosion resistant; indoor or outdoor
- Requires separate MPU
- Overall width 103"; length 144"; 48" approach ramps available
Need To Know
Truck Shipment
Truck shipments must be pre-paid with a credit card, certified check or money order
Need help?
855.313.9176Quick and Easy Returns
Return PolicyBendPak 5175281 Details
BendPak 5175281 Details
The Autostacker A6S-OPT3-G is the galvanized aft-control 6,000 lb. parking lift — same specifications as the A6S-OPT3 with hot-dipped galvanized platform and structure for corrosion resistance in outdoor or high-humidity environments. Requires a separate Master Power Unit (MPU) for operation.
- Capacity: 6,000 lbs.; Platform: 83.75" x 124"; 5 lock positions
- Overall width: 103"; Overall length: 144"
- Galvanized construction; indoor or outdoor use
- Requires separate MPU (sold separately)
Height Range:
90.971"
Length Range:
144.11
Width Range:
103.15
Max Lifting Height:
85
Drive Thru Under Clearance on Top Lock Comb Units:
76.13" / 1933 mm
Drive Thru Width Range Comb Units:
83.13"
Drive Thru Width Standard Configuration Comb Units:
83.13" / 2112 mm
Height Overall Comb Units:
91" / 2311 mm
Overall Length Comb Units:
144.13" / 3660 mm
Overall Width Max Comb Units:
103.13" / 2620 mm
BendPak 5175281 Specifications
BendPak 5175281 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 5175281 |
| Brand | BendPak |
| Lifting Capacity | 6000 lbs. |
| Overall Height | 91" |
| GENERAL | |
| Notes | 6,000 Lb. Capacity Parking Lift / Standard / Aft Control Kit / Galvanized / Requires MPU Std Aft Control Galv; Requires MPU; Platform 83.75"×124" |
| Sold in Quantity | Each |
| Overall Width | 103" |
| Overall Length | 144" |
| Max Lifting Height | 81.25" |
