Product Summary

EFI Fuel System Type, Multi-port Injection Style, Black

  • 6000-8000+ Ideal operating range(for sub 4 inch stroke applications)
  • Cast from 319 Aluminum
  • 1 map sensor location in rear with 1 additional user optional location
  • LS3 map sensor bore
  • Made in USA
See more details

Key Specs

MFG. Part #IMA-03-BLK
BrandBTR
RPM Range6,000-8,000
Material TypeAluminum
See more specs

Need To Know

Quick and Easy Returns

Return Policy

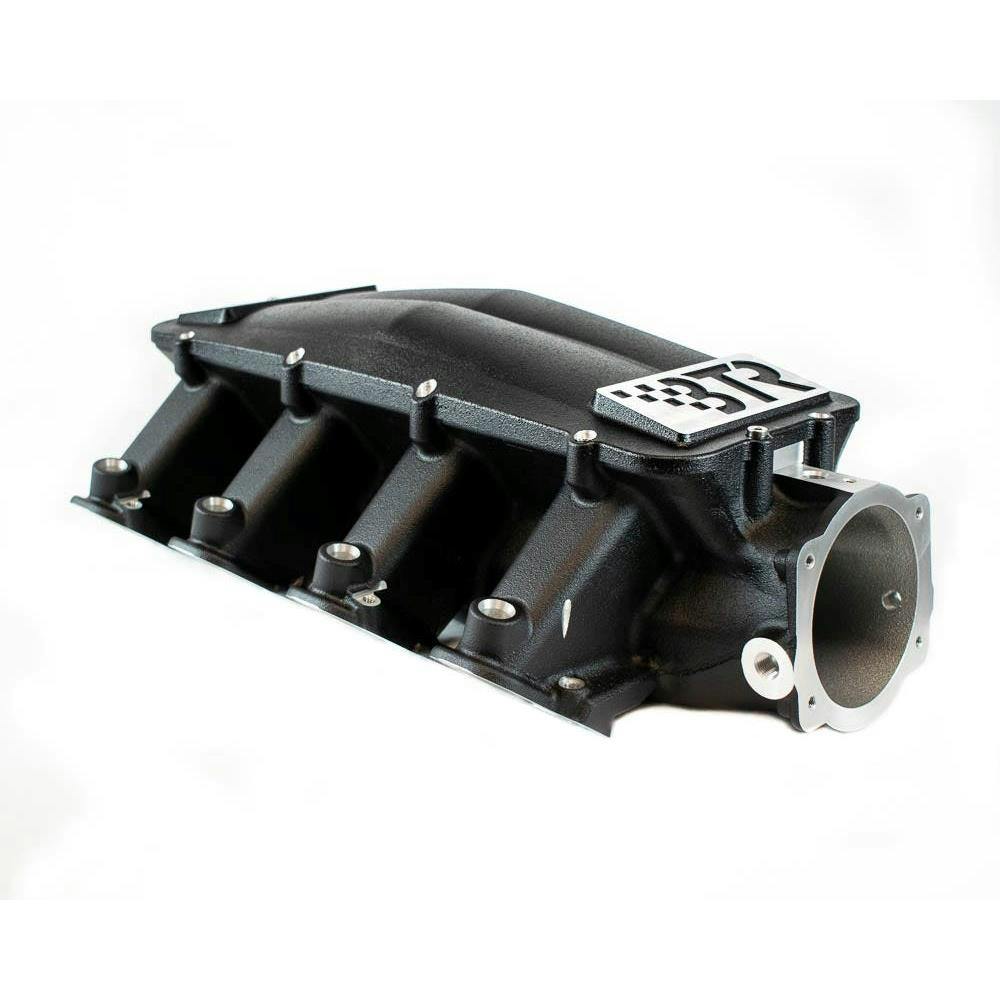

BTR IMA-03-BLK Details

  • 6000-8000+ Ideal operating range(for sub 4 inch stroke applications)
  • Cast from 319 Aluminum
  • 1 map sensor location in rear with 1 additional user optional location
  • LS3 map sensor bore
  • Made in USA
  • O-Ringed port openings and Lid surface
  • Easy Insert Steep Chamfer Injector Bores for trouble free Injector o-ring insertion
  • Underslung Plenum design for Maximum Hood Clearance
  • 102mm Profiled Throttle Bore
  • ISO9001:2015 Certified Machining
  • 2 piece design for easy porting access
  • Lightweight CAD generated design
  • Profiled Port Openings for Optimum Out of The Box Performance
  • All threads are roll form aircraft standard DSDV
  • Clears F-Body Cowls
  • Clears C5 Cowls with minimal massaging to intake
  • Not compatible with truck accessories

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

BTR IMA-03-BLK Specifications

KEY SPECS
MFG. Part #IMA-03-BLK
BrandBTR
RPM Range6,000-8,000
Material TypeAluminum
GENERAL
Fuel System TypeEFI
Injection StyleMulti-port
FinishPowder Coated
ColorBlack
EGRNo
Cylinder Head ConfigurationRectangular Port
Throttle Body Bore Size102mm
Throttle Body IncludedNo
Injectors IncludedNo
Aftermarket Fuel Rail RequiredYes
Fuel Rails IncludedNo
Sold in QuantityEach
NotesFits LS3 and L99 square port cylinder heads. 102mm profiled throttle bore. Clears F-body cowls and C5 cowls with minimal massaging to intake.

Fitment

  • GM LS3

  • GM LS3

  • GM LS3

  • GM LS3
