BTR IMA-01 Equalizer 1 Intake Manifold, Cathedral Port

#36984132

BTR IMA-01 Equalizer 1 Intake Manifold, Cathedral Port

Cast from 319 Aluminum
O-Ringed port openings and Lid surface
Easy Insert steep chamfer injector bores for trouble free injector o-ring insertion

$749.99

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Multi-port Injection Style, 6000-8000 RPM Range

Cast from 319 Aluminum
O-Ringed port openings and Lid surface
Easy Insert steep chamfer injector bores for trouble free injector o-ring insertion
6000-8000+ RPM Ideal operating range (for sub 4” stroke applications)
Underslung plenum design for maximum hood clearance

See more details

Key Specs

MFG. Part #	IMA-01
Brand	BTR
Injection Style	Multi-port
RPM Range	6000-8000
Material Type	Aluminum

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

BTR IMA-01 Details

This intake is designed for combinations that are looking to make peak power between 6000 and 8000 rpm. Boosted engine combinations are actually more reliable making peak power in this higher RPM range compared to making peak power around 6500 rpm like most stock style intakes, provided the valve train is engineered properly.

Cast from 319 Aluminum
O-Ringed port openings and Lid surface
Easy Insert steep chamfer injector bores for trouble free injector o-ring insertion
6000-8000+ RPM Ideal operating range (for sub 4” stroke applications)
Underslung plenum design for maximum hood clearance
102mm profiled throttle bore
1 MAP sensor location in rear with 2 additional optional locations
Additional user defined LS3 and LS1/LS2/LS6 MAP sensor bores
ISO9001:2015 certified machining
2-piece design for easy porting access
Lightweight CAD-generated design
Profiled port openings for optimum out of the box performance
All threads are roll form aircraft standard DSDV
Clears F-Body cowls
Clears C5 cowls with minimal massaging to intake
Does NOT work with truck accessories

Guides & Documents

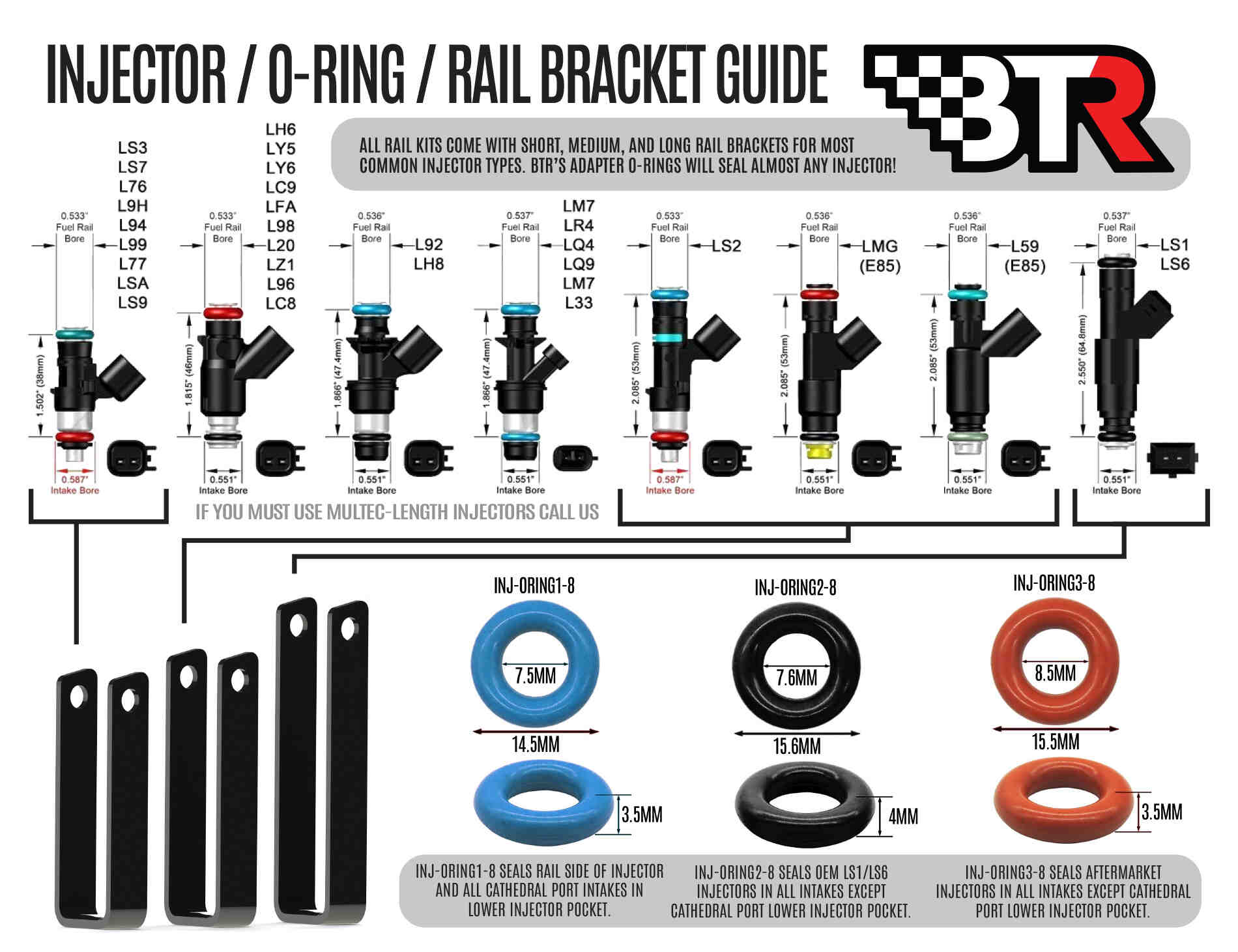

Intake Manifolds Technical Information (36984132)

CA Prop 65

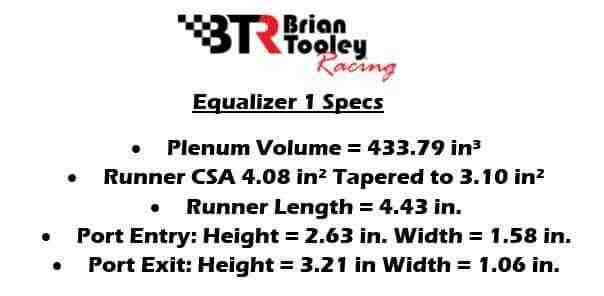

BTR IMA-01 Specifications

KEY SPECS
MFG. Part #	IMA-01
Brand	BTR
Injection Style	Multi-port
RPM Range	6000-8000
Material Type	Aluminum

GENERAL
EGR	No
Cylinder Head Configuration	Cathedral Port LS1/LS2/LS6
Throttle Body Bore Size	102mm
Intake Section Included	Complete
Throttle Body Included	No
Injectors Included	No
Aftermarket Fuel Rail Required	Yes

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

2004 Buick Rainier

Chevy LS V8 Gen 3 5.3 LM4

2004-2005 Cadillac CTS

Chevy LS V8 Gen 3 5.7 LS6

2006-2007 Cadillac CTS

Chevy LS V8 Gen 4 6.0 LS2

2002-2011 Cadillac Escalade

Chevy LS V8 Gen 3 5.3 LM7
Chevy LS V8 Gen 3 6.0 LQ9

2003-2006 Cadillac Escalade ESV

Chevy LS V8 Gen 3 5.3 LM7
Chevy LS V8 Gen 3 6.0 LQ9

2002-2006 Cadillac Escalade EXT

Chevy LS V8 Gen 3 5.3 LM7
Chevy LS V8 Gen 3 6.0 LQ9

2007-2011 Chevy Avalanche

Chevy LS V8 Gen 4 5.3 LC9
Chevy LS V8 Gen 4 5.3 LMG
Chevy LS V8 Gen 4 5.3 LY5
Chevy LS V8 Gen 4 6.0 L76

2012-2013 Chevy Avalanche

Chevy LS V8 Gen 4 5.3 LY5

2002-2006 Chevy Avalanche 1500

Chevy LS V8 Gen 3 5.3 LM7

2000-2002 Chevy C1500

Chevy LS V8 Gen 3 5.3 LM7
Chevy LS V8 Gen 3 6.0 LQ4

1998-2002 Chevy Camaro

Chevy LS V8 Gen 3 5.7 LS1

1997-2000 Chevy Corvette

Chevy LS V8 Gen 3 5.7 LS1

2001-2004 Chevy Corvette

Chevy LS V8 Gen 3 5.7 LS1
Chevy LS V8 Gen 3 5.7 LS6

2005-2007 Chevy Corvette

Chevy LS V8 Gen 4 6.0 LS2

2006-2009 Chevy Impala

Chevy LS V8 Gen 4 5.3 LS4

2006-2007 Chevy Monte Carlo

Chevy LS V8 Gen 4 5.3 LS4

1999 Chevy Silverado 1500

Chevy LS V8 Gen 3 5.3 LM7

2000-2011 Chevy Silverado 1500

Chevy LS V8 Gen 3 5.3 LM7
Chevy LS V8 Gen 4 4.8 L20
Chevy LS V8 Gen 4 4.8 LY2

2012-2014 Chevy Silverado 1500

Chevy LS V8 Gen 3 5.3 LM7

2007 Chevy Silverado 1500 Classic

Chevy LS V8 Gen 3 6.0 LQ4

2001-2003 Chevy Silverado 1500 HD

Chevy LS V8 Gen 3 6.0 LQ4

2005-2006 Chevy Silverado 1500 HD

Chevy LS V8 Gen 3 6.0 LQ4

2007 Chevy Silverado 1500 HD

Chevy LS V8 Gen 3 6.0 LQ9

2007 Chevy Silverado 1500 HD Classic

Chevy LS V8 Gen 3 6.0 LQ4

2019 Chevy Silverado 1500 LD

Chevy LS V8 Gen 4 6.0 L98

2000-2004 Chevy Silverado 2500

Chevy LS V8 Gen 3 5.3 LM7
Chevy LS V8 Gen 3 6.0 LQ4

2005 Chevy Silverado 2500

Chevy LS V8 Gen 3 6.0 LQ9
Chevy LS V8 Gen 4 6.0 L98

2006-2014 Chevy Silverado 2500

Chevy LS V8 Gen 4 6.0 L98

2001-2011 Chevy Silverado 2500 HD

Chevy LS V8 Gen 3 6.0 LQ4

2012-2014 Chevy Silverado 2500 HD

Chevy LS V8 Gen 4 6.0 L98

2007 Chevy Silverado 2500 HD Classic

Chevy LS V8 Gen 3 6.0 LQ4

2001-2006 Chevy Silverado 3500

Chevy LS V8 Gen 3 6.0 LQ4

2007-2013 Chevy Silverado 3500

Chevy LS V8 Gen 4 6.0 L98

2015-2018 Chevy Silverado 3500

Chevy LS V8 Gen 4 6.0 L98

2007 Chevy Silverado 3500 Classic

Chevy LS V8 Gen 3 6.0 LQ4

2007-2011 Chevy Silverado 3500 HD

Chevy LS V8 Gen 3 6.0 LQ4

2012 Chevy Silverado 3500 HD

Chevy LS V8 Gen 4 6.0 L98

2013 Chevy Silverado 3500 HD

Chevy LS V8 Gen 4 6.0 LZ1

2003-2004 Chevy SSR

Chevy LS V8 Gen 3 5.3 LM4

2005-2006 Chevy SSR

Chevy LS V8 Gen 4 6.0 L77

2014 Chevy Suburban

Chevy LS V8 Gen 4 5.3 LMG
Chevy LS V8 Gen 4 5.3 LY5

2000-2001 Chevy Suburban 1500

Chevy LS V8 Gen 3 5.3 LM7

2002-2006 Chevy Suburban 1500

Chevy LS V8 Gen 3 5.3 L59
Chevy LS V8 Gen 3 5.3 LM7

2007-2009 Chevy Suburban 1500

Chevy LS V8 Gen 4 5.3 LC9
Chevy LS V8 Gen 4 5.3 LMG
Chevy LS V8 Gen 4 5.3 LY5

2010-2011 Chevy Suburban 1500

Chevy LS V8 Gen 4 5.3 LC9
Chevy LS V8 Gen 4 5.3 LMG

2012-2014 Chevy Suburban 1500

Chevy LS V8 Gen 4 5.3 LMG
Chevy LS V8 Gen 4 5.3 LY5

2000-2006 Chevy Suburban 2500

Chevy LS V8 Gen 3 6.0 LQ4

2007-2011 Chevy Suburban 2500

Chevy LS V8 Gen 4 6.0 L96

2012-2013 Chevy Suburban 2500

Chevy LS V8 Gen 4 5.3 LMG
Chevy LS V8 Gen 4 5.3 LY5

2000-2006 Chevy Tahoe

Chevy LS V8 Gen 3 5.3 L59
Chevy LS V8 Gen 3 5.3 LM7

2007 Chevy Tahoe

Chevy LS V8 Gen 4 5.3 LMG
Chevy LS V8 Gen 4 5.3 LY5

2008-2011 Chevy Tahoe

Chevy LS V8 Gen 4 5.3 LC9
Chevy LS V8 Gen 4 5.3 LMG
Chevy LS V8 Gen 4 6.0 LZ1

2012-2014 Chevy Tahoe

Chevy LS V8 Gen 4 5.3 LMG
Chevy LS V8 Gen 4 5.3 LY5

2002-2005 Chevy Trailblazer

Chevy LS V8 Gen 4 5.3 LH6

2006-2009 Chevy Trailblazer

Chevy LS V8 Gen 4 6.0 LS2

2002-2009 GMC Envoy

Chevy LS V8 Gen 3 5.3 LM4

2002-2006 GMC Envoy XL

Chevy LS V8 Gen 3 5.3 LM4

2004-2005 GMC Envoy XUV

Chevy LS V8 Gen 3 5.3 LM4

2001-2005 GMC Savana 1500

Chevy LS V8 Gen 3 5.3 LM7
Chevy LS V8 Gen 3 6.0 LQ4

2006 GMC Savana 1500

Chevy LS V8 Gen 3 5.3 L33
Chevy LS V8 Gen 3 5.3 LM7
Chevy LS V8 Gen 3 6.0 LQ4

2007-2014 GMC Savana 1500

Chevy LS V8 Gen 3 5.3 L33
Chevy LS V8 Gen 3 6.0 LQ4

2001-2005 GMC Savana 2500

Chevy LS V8 Gen 3 5.3 LM7
Chevy LS V8 Gen 3 6.0 LQ4

2006-2013 GMC Savana 2500

Chevy LS V8 Gen 3 5.3 L33
Chevy LS V8 Gen 3 6.0 LQ4

2002-2005 GMC Savana 3500

Chevy LS V8 Gen 3 5.3 LM7
Chevy LS V8 Gen 3 6.0 LQ4

2006-2013 GMC Savana 3500

Chevy LS V8 Gen 3 5.3 L33
Chevy LS V8 Gen 3 6.0 LQ4

1999-2011 GMC Sierra 1500

Chevy LS V8 Gen 4 4.8 L20
Chevy LS V8 Gen 4 5.3 LC9
Chevy LS V8 Gen 4 5.3 LMG
Chevy LS V8 Gen 4 6.0 LZ1

2007 GMC Sierra 1500 Classic

Chevy LS V8 Gen 3 5.3 L33
Chevy LS V8 Gen 3 5.3 L59
Chevy LS V8 Gen 3 5.3 LM7

2001-2003 GMC Sierra 1500 HD

Chevy LS V8 Gen 3 6.0 LQ4

2005-2006 GMC Sierra 1500 HD

Chevy LS V8 Gen 3 6.0 LQ4

2007 GMC Sierra 1500 HD Classic

Chevy LS V8 Gen 3 6.0 LQ4

1999-2001 GMC Sierra 2500

Chevy LS V8 Gen 3 5.3 LM7
Chevy LS V8 Gen 3 6.0 LQ4

2002-2004 GMC Sierra 2500

Chevy LS V8 Gen 3 6.0 LQ4

2001-2011 GMC Sierra 2500 HD

Chevy LS V8 Gen 3 6.0 LQ4

2015-2019 GMC Sierra 2500 HD

Chevy LS V8 Gen 4 6.0 L96

2007 GMC Sierra 2500 HD Classic

Chevy LS V8 Gen 3 6.0 LQ4

2001-2006 GMC Sierra 3500

Chevy LS V8 Gen 3 6.0 LQ4

2007 GMC Sierra 3500

Chevy LS V8 Gen 4 6.0 L96

2007 GMC Sierra 3500 Classic

Chevy LS V8 Gen 3 6.0 LQ4

2007-2011 GMC Sierra 3500 HD

Chevy LS V8 Gen 4 6.0 L96

2015-2019 GMC Sierra 3500 HD

Chevy LS V8 Gen 4 6.0 L96

2001 GMC Sierra C3

Chevy LS V8 Gen 3 6.0 LQ4

2000-2007 GMC Yukon

Chevy LS V8 Gen 3 5.3 LM7
Chevy LS V8 Gen 4 4.8 L20
Chevy LS V8 Gen 4 4.8 LY2

2008-2011 GMC Yukon

Chevy LS V8 Gen 3 5.3 LM7
Chevy LS V8 Gen 4 4.8 L20
Chevy LS V8 Gen 4 4.8 LY2
Chevy LS V8 Gen 4 6.0 LZ1

2012-2013 GMC Yukon

Chevy LS V8 Gen 4 5.3 LC9
Chevy LS V8 Gen 4 5.3 LMG
Chevy LS V8 Gen 4 6.0 LZ1

2000 GMC Yukon XL 1500

Chevy LS V8 Gen 3 5.3 LM7

2001-2011 GMC Yukon XL 1500

Chevy LS V8 Gen 3 5.3 L59
Chevy LS V8 Gen 3 5.3 LM7
Chevy LS V8 Gen 3 6.0 LQ4

2012-2014 GMC Yukon XL 1500

Chevy LS V8 Gen 4 6.0 L96

2000-2011 GMC Yukon XL 2500

Chevy LS V8 Gen 3 6.0 LQ4

2012-2013 GMC Yukon XL 2500

Chevy LS V8 Gen 4 6.0 L96

2003-2007 Hummer H2

Chevy LS V8 Gen 3 6.0 LQ4

2008-2009 Hummer H3

Chevy LS V8 Gen 4 5.3 LH8

2010 Hummer H3

Chevy LS V8 Gen 4 5.3 LH9

2009 Hummer H3T

Chevy LS V8 Gen 4 5.3 LH8

2010 Hummer H3T

Chevy LS V8 Gen 4 5.3 LH9

1998-2002 Pontiac Firebird

Chevy LS V8 Gen 3 5.7 LS1

2004 Pontiac GTO

Chevy LS V8 Gen 3 5.7 LS1

2005-2006 Pontiac GTO

Chevy LS V8 Gen 4 6.0 LS2
