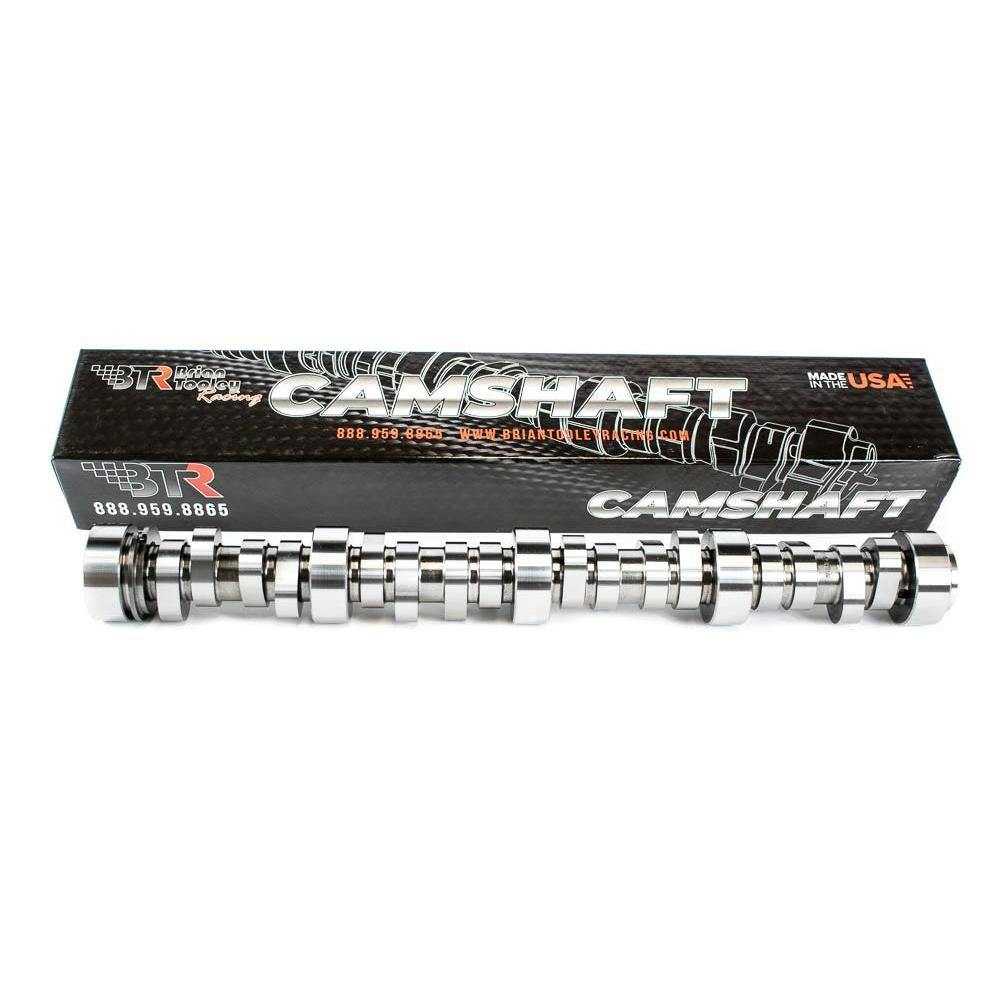

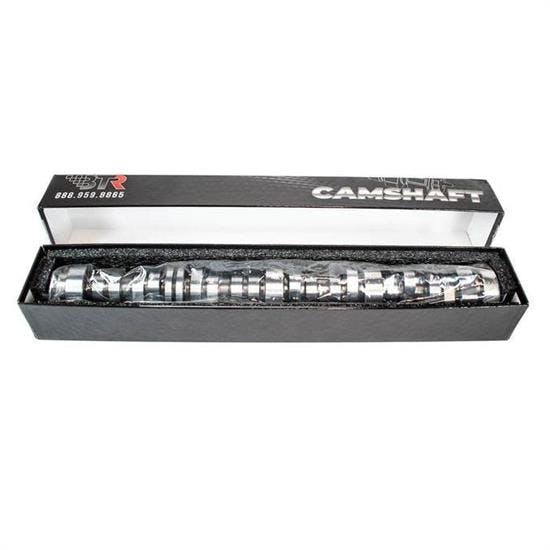

Brian Tooley Racing BTR-TURBOSTG2 Stage 2 Camshaft, Turbo, LS
Brian Tooley Racing BTR-TURBOSTG2 Stage 2 Camshaft, Turbo, LS
BTR

|

#36983263

Brian Tooley Racing BTR-TURBOSTG2 Stage 2 Camshaft, Turbo, LS

  • Specs:226/231 .610"/.608" 113+4
  • In our opinion, this is the most versatile turbo camshaft on the market today
  • The Stage 2 has been proven to be an excellent camshaft choice for cathedral port headed 5.3s and 6.0s utilizing a wide range of different turbos
See More

Discontinued


This item is currently not available

Shop all Camshafts

Product Summary

Hydraulic Roller Camshaft Type, 4000-7000 RPM Range

  • Specs:226/231 .610"/.608" 113+4
  • In our opinion, this is the most versatile turbo camshaft on the market today
  • The Stage 2 has been proven to be an excellent camshaft choice for cathedral port headed 5.3s and 6.0s utilizing a wide range of different turbos
  • Whether you're putting together a budget street build with a small 7275 turbo or aiming for the fences with a Borg Warner S488, this camshaft will make sure the valve events are optimized for your pressurized application
  • Turbocharged LS
See more details

Key Specs

Camshaft TypeHydraulic Roller
RPM Range4000-7000
Intake Duration (.050" Lift)226
Exhaust Duration (.050" Lift)231
Lobe Separation113 °
See more specs

Need To Know

Need help?

855.313.9176
View the Help Center

Quick and Easy Returns

Return Policy

BTR BTR-TURBOSTG2 Details

In our opinion, this is the most versatile turbo camshaft on the market today. The Stage 2 has been proven to be an excellent camshaft choice for cathedral port headed 5.3s and 6.0s utilizing a wide range of different turbos. Whether you're putting together a budget street build with a small 7275 turbo or aiming for the fences with a Borg Warner S488, this camshaft will make sure the valve events are optimized for your pressurized application.

  • Specs:226/231 .610"/.608" 113+4
  • Turbocharged LS
  • Hydraulic Roller
  • Sold as Each

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.
CA Prop 65
CARB warning

BTR BTR-TURBOSTG2 Specifications

KEY SPECS
MFG. Part #BTR-TURBOSTG2
BrandBTR
Camshaft TypeHydraulic Roller
RPM Range4000-7000
Intake Duration (.050" Lift)226
Exhaust Duration (.050" Lift)231
Lobe Separation113 °
GENERAL
Gear Attachment3-Bolt
Intake Valve Lift w/ Rocker Arm Ratio.610"
Exhaust Valve Lift w/ Rocker Arm Ratio.608"
Computer Controlled CompatibleYes
Sold in QuantityEach
Valve Springs RequiredYes
NotesFor Stage 2 Turbocharged Applications

Fitment

  • GM LM4

  • GM LM7

  • GM LQ9

  • 6.2 Chevy LS V8

  • GM LM7

  • GM LQ9

  • 6.2 Chevy LS V8

  • GM LM7

  • GM LQ9

  • 6.2 Chevy LS V8

  • GM L76

  • GM LC9

  • GM LMG

  • GM LY5

  • GM LY5

  • GM LM7

  • 4.8 Chevy LS V8

  • GM LM7

  • GM LQ4

  • GM LS1

  • GM LS1

  • GM LS4

  • GM LS4

  • 4.8 Chevy LS V8

  • GM LM7

  • 4.8 Chevy LS V8

  • GM L20

  • GM LM7

  • GM LY2

  • 4.8 Chevy LS V8

  • GM LM7

  • GM LQ4

  • GM LQ4

  • GM LQ4

  • GM LQ9

  • GM LQ4

  • GM LM7

  • GM LQ4

  • GM LQ9

  • GM LQ4

  • GM LQ4

  • GM LQ4

  • GM LQ4

  • GM LQ4

  • GM LM4

  • GM LMG

  • GM LY5

  • GM LM7

  • GM L59

  • GM LM7

  • GM LC9

  • GM LMG

  • GM LY5

  • GM LC9

  • GM LMG

  • GM LMG

  • GM LY5

  • GM LQ4

  • GM LMG

  • GM LY5

  • 4.8 Chevy LS V8

  • GM L59

  • GM LM7

  • 4.8 Chevy LS V8

  • GM LMG

  • GM LY5

  • 6.2 Chevy LS V8

  • GM LC9

  • GM LMG

  • GM LC9

  • GM LMG

  • GM LMG

  • GM LY5

  • GM LH6

  • GM LM4

  • GM LM4

  • GM LM4

  • 4.8 Chevy LS V8

  • GM LM7

  • GM LQ4

  • 4.8 Chevy LS V8

  • GM L33

  • GM LM7

  • GM LQ4

  • 4.8 Chevy LS V8

  • GM L33

  • GM LQ4

  • 4.8 Chevy LS V8

  • GM LM7

  • GM LQ4

  • 4.8 Chevy LS V8

  • GM L33

  • GM LQ4

  • 4.8 Chevy LS V8

  • GM LM7

  • GM LQ4

  • 4.8 Chevy LS V8

  • GM L33

  • GM LQ4

  • GM L20

  • GM LC9

  • GM LMG

  • GM L33

  • GM L59

  • GM LM7

  • GM LQ4

  • GM LQ4

  • GM LQ4

  • GM LM7

  • GM LQ4

  • GM LQ4

  • GM LQ4

  • GM LQ4

  • GM LQ4

  • GM LQ4

  • GM LQ4

  • 4.8 Chevy LS V8

  • GM L20

  • GM LM7

  • GM LY2

  • GM LC9

  • GM LMG

  • GM LM7

  • GM L59

  • GM LM7

  • GM LQ4

  • GM LQ4

  • GM LQ4

  • 6.2 Chevy LS V8

  • GM LH8

  • GM LH8

  • GM LS1

  • GM LS1
