Product Summary

396, 402, 427, 454, 496, 502, 572, V-Belt Belt Type

  • Satin black finish
  • Steel construction
  • Lightweight
  • For Big Block Chevy long style water pumps
  • Replace lost or damaged original pulleys

Comes as a Kit

Key Specs

BrandSpeedway Motors
Water Pump StyleLong

Need To Know

Free Shipping on Orders Over $149

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Details

Pair up a new set of pulleys sure to match for your Big Block Chevy equipped with a long-style water pump.  These convienent combos feature a satin black finish.

  • Satin black finish
  • Steel construction
  • Lightweight
  • For Big Block Chevy long style water pumps
  • Replace lost or damaged original pulleys
  • Double groove water pump pulley for two V-belts
  • Triple groove crank pulley for three V-belts

Kit Includes:

  • (1) BBC Satin Black Long Water Pump Pulley - Double Groove
  • (1) BBC Satin Black Long Pump Crank Pulley - Triple Groove

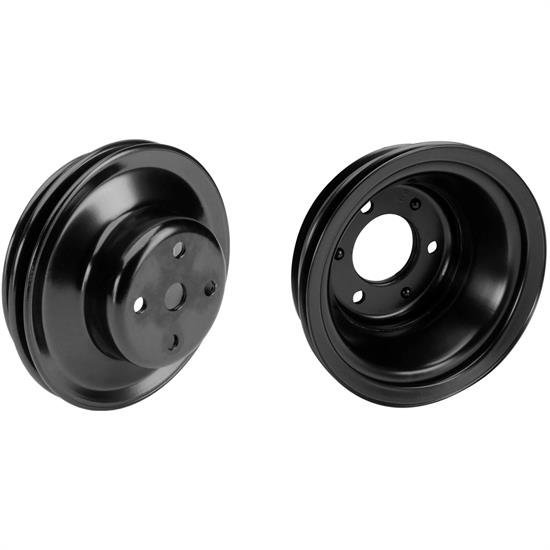

BBC Satin Black Long Water Pump Pulley - Double Groove

  • Diameter is 6-1/4"
  • Mounted Length: 2.19"
  • Shaft Diameter: .63"
  • Belt Width: .38"
  • Outside of front to outside of back of pulley is 2-3/4"
  • Center of large diameter pulley to front of pulley is 1-5/8"
  • Center of small diameter pulley to front of pulley is 2-3/8"



BBC Satin Black Long Pump Crank Pulley - Triple Groove

  • Outside Diameter is 7.625"
  • Overall Length: .76"
  • Mounted Length: 3"
  • Belt Width: .38"



Notes:

  1. It may be necessary to shim either or both of the pulleys to achieve perfect belt alignment. There are variances between manufacturers of both water pumps and pulleys.
  2. Water Pump Pulley: Mounted length is from the face of the water pump pulley mount towards the front of the engine.
  3. Crank Pulley: Mounted length is from the face of the harmonic balancer towards the front of the vehicle.

Get the correct pulleys for your application by learning which water pump you have as explained in our tech article. SBC - Short vs Long Water Pump.

Charts

Specifications

KEY SPECS
BrandSpeedway Motors
Water Pump StyleLong
GENERAL
Belt TypeV-Belt
Groove Count2-3
Material TypeSteel
FinishPainted
Sold in QuantityKit
ColorBlack
