TH400, 3400-3800 Stall Speed (RPM), Furnace-Brazed
Need help?
855.313.9176Quick and Easy Returns

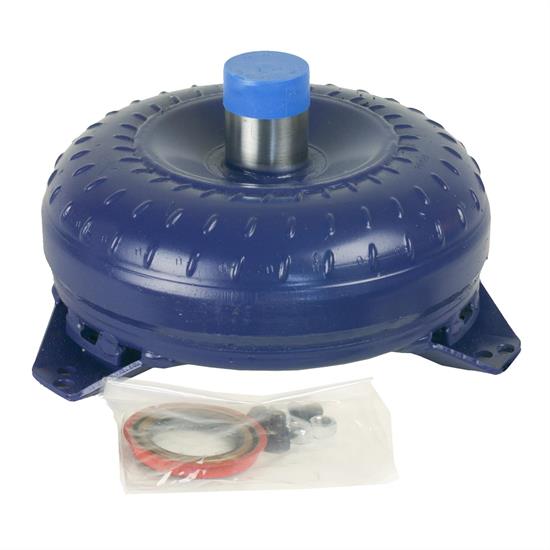

Return PolicyHoleShot 3600 for GM 1965 to 1991 TH400, 425, 375 and 1968 to 1981 TH350, 375B (not 350C) APPLICATION: HoleShot 3600 for GM 1965 to 1991 TH400, 425, 375 and 1968 to 1981 TH350, 375B (not 350C) A higher than stock stall speed as delivered by the Holeshot converter will provide several advantages and benefits in vehicles with modified engines. Many modifications, particularly big cams, tend to reduce low end power and torque. The high stall converter allows the engine to launch the car at higher rpm where more torque is available. The Holeshot is generally a very good choice for the typical street machine that is looking for better launch capability and more strength. Street rods with modified engines will also benefit from a Holeshot converter. If your vehicle is equipped with a plate type nitrous system, you will need a Nitrous Holeshot!! Stall speed listings are based on engines producing 230lb. ft. of torque at 2,500 rpm. More torque at 2,500 rpm will give you more stall speed, less torque at 2,500 rpm will give you less stall speed than the stall speed ratings indicated. Furnace brazed impeller. New precision steel alloy pump drive tube. New heavy duty needle bearing between stator and impeller (not a thrust washer). Needle bearing between stator and turbine. Furnace brazed turbine. Dual pattern drive lugs on some GM Holeshots. New turbine hub. New springs and rollers in stator.
Application
Charts
Guides & Documents
CA WARNING:
Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov
| KEY SPECS | |
|---|---|
| MFG. Part # | 20425 |
| Brand | B&M |
| Stall Speed (RPM) | 3400-3800 |
| GENERAL | |
| Bolt Circle Diameter | 10.75" |
| Furnace-Brazed | Yes |
| Notes | New needle bearings |
| Material Type | Steel |
| GTIN Code | 019695204259 |
| Flexplate Change Needed | Yes |
Be the first to ask a question.
1965-1985 Avanti II
1985-1990 Bentley Continental
1971-1984 Bentley Corniche
1984-1991 Bentley Eight
1981-1991 Bentley Mulsanne
1968-1976 Bentley T1 Series
1977-1980 Bentley T2 Series
1988-1990 Bentley Turbo R
1973-1975 Buick Apollo
1971-1973 Buick Centurion
1973-1981 Buick Century
1964-1981 Buick Electra
1970-1981 Buick Estate Wagon
1965-1967 Buick Gran Sport
1970-1972 Buick GS
1964-1981 Buick LeSabre
1973-1981 Buick Regal
1964-1978 Buick Riviera
1975-1980 Buick Skyhawk
1965-1979 Buick Skylark
1965-1969 Buick Special
1966-1972 Buick Sportwagon
1964-1969 Buick Wildcat
1987-1990 Cadillac Brougham
1965-1976 Cadillac Calais
1964-1983 Cadillac Commercial Chassis
1965-1981 Cadillac DeVille
1964-1979 Cadillac Eldorado
1965-1984 Cadillac Fleetwood
1964 Cadillac Series 60 Fleetwood
1964 Cadillac Series 62
1964 Cadillac Series 75 Fleetwood
1976-1978 Cadillac Seville
1975-1982 Checker Marathon
1969-1974 Checker Taxicab
1965-1975 Chevy Bel Air
1965-1972 Chevy Biscayne
1969-1990 Chevy Blazer
1969-1972 Chevy Brookwood
1975-1986 Chevy C10
1967-1984 Chevy C10 Suburban
1988-1990 Chevy C1500
1975-1986 Chevy C20
1967-1986 Chevy C20 Suburban
1988-1992 Chevy C2500
1975-1986 Chevy C30
1988-1990 Chevy C3500
1967-1981 Chevy Camaro
1966-1980 Chevy Caprice
1965-1972 Chevy Chevelle
1966-1967 Chevy Chevy II
1967-1980 Chevy Corvette
1965-1980 Chevy El Camino
1975-1990 Chevy G10
1975-1990 Chevy G20
1969-1974 Chevy G20 Van
1975-1990 Chevy G30
1965-1980 Chevy Impala
1975-1986 Chevy K10
1967-1984 Chevy K10 Suburban
1988-1990 Chevy K1500
1975-1986 Chevy K20
1967-1986 Chevy K20 Suburban
1988-1992 Chevy K2500
1977-1986 Chevy K30
1988-1990 Chevy K3500
1975-1986 Chevy K5 Blazer
1969-1972 Chevy Kingswood
1975-1976 Chevy Laguna
1973-1980 Chevy Malibu
1970-1980 Chevy Monte Carlo
1975-1980 Chevy Monza
1969-1978 Chevy Nova
1975-1990 Chevy P30
1964-1967 Chevy P30 Series
1987 Chevy R10
1990 Chevy R1500 Suburban
1987-1988 Chevy R20
1987-1988 Chevy R20 Suburban
1989 Chevy R2500
1989-1990 Chevy R2500 Suburban
1987-1988 Chevy R30
1989-1990 Chevy R3500
1969-1972 Chevy Townsman
1987 Chevy V10
1990 Chevy V1500 Suburban
1987 Chevy V20
1987-1988 Chevy V20 Suburban
1989-1990 Chevy V2500 Suburban
1987-1988 Chevy V30
1989-1990 Chevy V3500
1971-1977 Chevy Vega
1975-1978 GMC C15
1975-1978 GMC C15 Suburban
1968-1974 GMC C15/C1500 Pickup
1967-1974 GMC C15/C1500 Suburban
1979-1990 GMC C1500
1979-1984 GMC C1500 Suburban
1975-1978 GMC C25
1975-1978 GMC C25 Suburban
1967-1974 GMC C25/C2500 Pickup
1967-1974 GMC C25/C2500 Suburban
1979-1990 GMC C2500
1979-1986 GMC C2500 Suburban
1975-1978 GMC C35
1968-1974 GMC C35/C3500 Pickup
1979-1990 GMC C3500
1978-1980 GMC Caballero
1975-1978 GMC G15
1979-1990 GMC G1500
1975-1978 GMC G25
1979-1990 GMC G2500
1975-1978 GMC G35
1970-1974 GMC G35/G3500 Van
1979-1990 GMC G3500
1970-1990 GMC Jimmy
1975-1978 GMC K15
1975-1978 GMC K15 Suburban
1966-1974 GMC K15/K1500 Pickup
1967-1974 GMC K15/K1500 Suburban
1979-1990 GMC K1500
1979-1984 GMC K1500 Suburban
1975-1978 GMC K25
1975-1978 GMC K25 Suburban
1967-1974 GMC K25/K2500 Pickup
1967-1974 GMC K25/K2500 Suburban
1979-1990 GMC K2500
1979-1986 GMC K2500 Suburban
1977-1978 GMC K35
1970-1974 GMC K35/K3500 Pickup
1979-1990 GMC K3500
1987 GMC R1500
1990 GMC R1500 Suburban
1987-1989 GMC R2500
1987-1990 GMC R2500 Suburban
1987-1990 GMC R3500
1971-1977 GMC Sprint
1973-1974 GMC Transmode
1987 GMC V1500
1990 GMC V1500 Suburban
1987 GMC V2500
1987-1990 GMC V2500 Suburban
1987-1990 GMC V3500
1979 Jaguar XJ12
1980-1992 Jaguar XJS
1974-1979 Jeep Cherokee
1972-1979 Jeep CJ5
1972-1975 Jeep CJ6
1976-1979 Jeep CJ7
1972-1979 Jeep DJ5
1965 Jeep J-200
1966-1973 Jeep J-2500
1966-1973 Jeep J-2600
1966-1969 Jeep J-2700
1966-1968 Jeep J-2800
1964-1965 Jeep J-300
1966-1970 Jeep J-3500
1966-1970 Jeep J-3600
1966-1970 Jeep J-3700
1966-1968 Jeep J-3800
1971-1973 Jeep J-4500
1971-1973 Jeep J-4600
1970-1973 Jeep J-4700
1970-1973 Jeep J-4800
1974-1979 Jeep J10
1974-1979 Jeep J20
1966-1971 Jeep Jeepster
1965 Jeep Truck
1965-1979 Jeep Wagoneer
1965-1971 Oldsmobile 442
1965-1980 Oldsmobile 98
1971-1980 Oldsmobile Custom Cruiser
1968-1981 Oldsmobile Cutlass
1978-1980 Oldsmobile Cutlass Calais
1975-1980 Oldsmobile Cutlass Salon
1975-1980 Oldsmobile Cutlass Supreme
1976 Oldsmobile Cutlass Tiara
1967-1968 Oldsmobile Delmont 88
1968-1980 Oldsmobile Delta 88
1965-1972 Oldsmobile F85
1973-1979 Oldsmobile Omega
1965-1980 Oldsmobile Starfire
1966-1978 Oldsmobile Toronado
1968-1975 Oldsmobile Vista Cruiser
1968-1971 Pontiac Acadian
1975-1977 Pontiac Astre
1965-1980 Pontiac Bonneville
1965-1980 Pontiac Catalina
1967-1970 Pontiac Executive
1967-1981 Pontiac Firebird
1973-1980 Pontiac Grand Am
1975-1980 Pontiac Grand LeMans
1965-1980 Pontiac Grand Prix
1975-1978 Pontiac Grand Safari
1971-1975 Pontiac Grandville
1966-1973 Pontiac GTO
1965-1980 Pontiac LeMans
1977-1979 Pontiac Phoenix
1965-1966 Pontiac Star Chief
1976-1980 Pontiac Sunbird
1965-1970 Pontiac Tempest
1971-1977 Pontiac Ventura
1975-1987 Rolls-Royce Camargue
1971-1985 Rolls-Royce Corniche
1986-1991 Rolls-Royce Corniche II
1968-1969 Rolls-Royce Phantom
1968-1976 Rolls-Royce Silver Shadow
1977-1980 Rolls-Royce Silver Shadow II
1981-1991 Rolls-Royce Silver Spirit
1981-1991 Rolls-Royce Silver Spur
1977-1980 Rolls-Royce Silver Wraith II
