B&M 10231 Chrysler SFI Flexplate 8-Bolt Crank, A727 A904 1962

-7%

B&M 10231 Chrysler SFI Flexplate 8-Bolt Crank, A727 A904 1962
B&M

|

#20010231

B&M 10231 Chrysler SFI Flexplate 8-Bolt Crank, A727 A904 1962

$189.95

/each

Factory Shipped

$205.95

Save $16.00


Quantity

Need Help? Call to Order

Add to a list

Share

Select an engine to verify Fitment

Select Engine

Product Summary

904, Torqueflite 727, 10.84" Outside Diameter

    See more details

    Key Specs

    MFG. Part #10231
    BrandB&M
    Engine BalanceInternal
    SFI Rating29.1
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    B&M 10231 Details

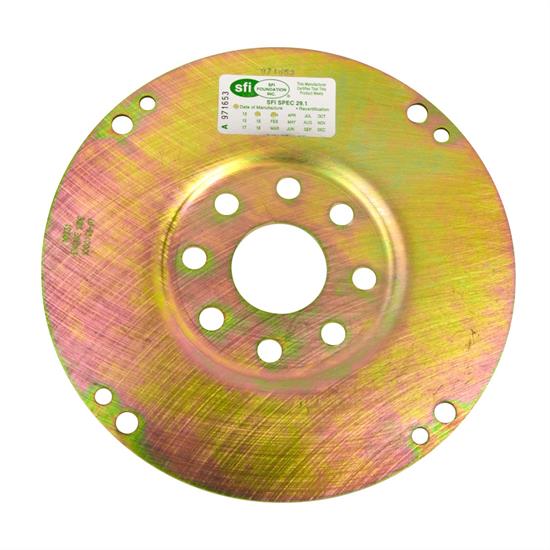

    This Chrysler flexplate has a 10 in. bolt pattern and is SFI 29.1 approved(recertification required every 3 yrs.). Fits 1962 and later Dodge, Chrysler and Plymouth's with a Torqueflite A727 or A904 automatic transmission and has an 8 bolt hole pattern. Works with internally balanced crankshafts. NHRAIHRA legal for all classes and is ideal for street applications to extreme duty racing and high RPM (use above 6,000 RPM). B&M's new Radial Tension Technology puts a new spin on flexplate technology. As engine performance levels increase, stronger flexplates become necessary. Until this point, stronger flexplates meant thicker flexplates. This works, but it adds unwanted weight and prohibited the flexplates from working as it was designed. Flexplates are designed to provide a protection against converter and transmission run out or OEM misalignment, which will cause transmission andor converter failure. A rigid flexplate gives no protection. The ultimate design for a flexplate is extreme strength, flexibility and minimal weight. B&M's new RTT performance flexplate accomplishes this goal. B&M's design allows for the removal of unnecessary material from non-critical stress areas. Less material means less weight giving you the benefits of a lightweight, flexible design with thicker material for maximum strength!

    • NHRA and IHRA Legal For All Classes
    • To Extreme Duty Racing
    • Includes SFI Certification Sticker
    • Ideal For Street Applications

    Application

    Fits 1962 and newer Chrysler, Dodge, Plymouth Torqueflite A727 and A904 automatic transmissions. Bolts onto 8 bolt internally balanced crankshaft with a 10 inch bolt pattern.

    Charts

    B&M 10231 Specifications

    KEY SPECS
    MFG. Part #10231
    BrandB&M
    Engine BalanceInternal
    SFI Rating29.1
    GENERAL
    Outside Diameter10.84"
    Weight3.5 lbs.
    Sold in QuantityEach
    GTIN Code019695102319
    Crankshaft Bolt Hole Count8
    Dual PatternNo
    NHRA LegalYes
    IHRA LegalYes

    Questions & Answers

    Be the first to ask a question.

    Fitment

    • 413 Mopar

    • 383 B Engine

    • 413 Mopar

    • 383 B Engine

    • 413 Mopar

    • 426 Chrysler Big Block V8

    • 383 B Engine

    • 413 Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 318 LA Engine Mopar

    • 413 Mopar

    • 318 LA Engine Mopar

    • 318 LA Engine Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 413 Mopar

    • 413 Mopar

    • 426 Chrysler Big Block V8

    • 413 Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 413 Mopar

    • 413 Mopar

    • 426 Chrysler Big Block V8

    • 413 Mopar

    • 383 B Engine

    • 413 Mopar

    • 383 B Engine

    • 360 Mopar

    • 383 B Engine

    • 360 Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 383 B Engine

    • 383 RB Engine

    • 383 B Engine

    • 383 RB Engine

    • 413 Mopar

    • 383 B Engine

    • 413 Mopar

    • 383 B Engine

    • 413 Mopar

    • 426 Chrysler Big Block V8

    • 383 B Engine

    • 413 Mopar

    • 383 B Engine

    • 318 LA Engine Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 383 B Engine

    • 383 RB Engine

    • 383 B Engine

    • 383 B Engine

    • 426 Chrysler Big Block V8

    • 383 B Engine

    • 426 Chrysler Big Block V8

    • 318 LA Engine Mopar

    • 318 LA Engine Mopar

    • 318 LA Engine Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 383 B Engine

    • 318 LA Engine Mopar

    • 360 Mopar

    • 383 B Engine

    • 318 LA Engine Mopar

    • 360 Mopar

    • 383 B Engine

    • 318 LA Engine Mopar

    • 383 B Engine

    • 318 LA Engine Mopar

    • 360 Mopar

    • 383 B Engine

    • 318 LA Engine Mopar

    • 360 Mopar

    • 383 B Engine

    • 318 LA Engine Mopar

    • 383 B Engine

    • 318 LA Engine Mopar

    • 360 Mopar

    • 383 B Engine

    • 318 LA Engine Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 318 LA Engine Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 426 Chrysler Big Block V8

    • 383 B Engine

    • 318 LA Engine Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 426 Chrysler Big Block V8

    • 383 B Engine

    • 318 LA Engine Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 426 Chrysler Big Block V8

    • 383 B Engine

    • 318 LA Engine Mopar

    • 360 Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 383 B Engine

    • 318 LA Engine Mopar

    • 383 B Engine

    • 318 LA Engine Mopar

    • 360 Mopar

    • 383 B Engine

    • 318 LA Engine Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 318 LA Engine Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 383 B Engine

    • 413 Mopar

    • 383 B Engine

    • 318 LA Engine Mopar

    • 383 B Engine

    • 318 LA Engine Mopar

    • 360 Mopar

    • 383 B Engine

    • 318 LA Engine Mopar

    • 360 Mopar

    • 413 Mopar

    • 383 B Engine

    • 413 Mopar

    • 426 Chrysler Big Block V8

    • 383 B Engine

    • 318 LA Engine Mopar

    • 383 B Engine

    • 318 LA Engine Mopar

    • 360 Mopar

    • 383 B Engine

    • 318 LA Engine Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 318 LA Engine Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 360 Mopar

    • 383 B Engine

    • 318 LA Engine Mopar

    • 383 B Engine

    • 318 LA Engine Mopar

    • 360 Mopar

    • 383 B Engine

    • 318 LA Engine Mopar

    • 360 Mopar

    • 383 B Engine

    • 318 LA Engine Mopar

    • 383 B Engine

    • 318 LA Engine Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 383 B Engine

    • 413 Mopar

    • 426 Chrysler Big Block V8

    • 383 B Engine

    • 413 Mopar

    • 383 B Engine

    • 318 LA Engine Mopar

    • 383 B Engine

    • 318 LA Engine Mopar

    • 360 Mopar

    • 383 B Engine

    • 318 LA Engine Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 318 LA Engine Mopar

    • 383 B Engine

    • 383 B Engine

    • 318 LA Engine Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 383 B Engine

    • 383 RB Engine

    • 383 B Engine

    • 318 LA Engine Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 318 LA Engine Mopar

    • 360 Mopar

    • 318 LA Engine Mopar

    • 318 LA Engine Mopar

    • 360 Mopar
