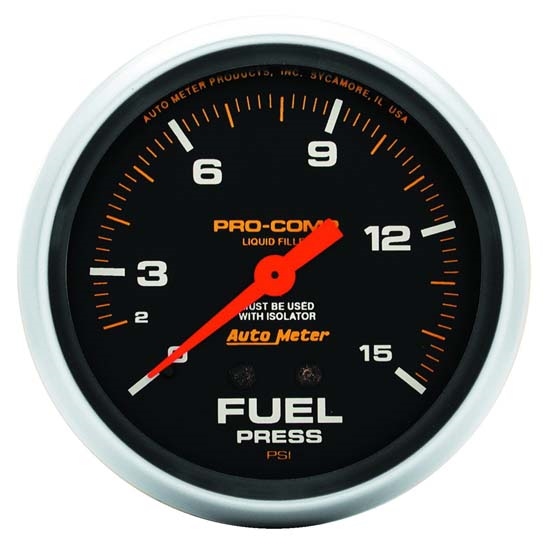

AutoMeter 5413 Pro-Comp Mechanical Fuel Press. w/Isolator Gauge

Rebate

#1825413

AutoMeter 5413 Pro-Comp Mechanical Fuel Press. w/Isolator Gauge

Liquid filled design for superior resistance to shock, vibration, and the elements.
Liquid dampened movement provides smooth pointer movement and extended service life in harsh environment applications.
Specially designed user-operated vent equalizes gauge case pressure allowing for calibration adjustments in changing temperatures and barometric pressures.

$249.99

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, 2-5/8" Gauge Diameter, Black, Lighted

Liquid filled design for superior resistance to shock, vibration, and the elements.
Liquid dampened movement provides smooth pointer movement and extended service life in harsh environment applications.
Specially designed user-operated vent equalizes gauge case pressure allowing for calibration adjustments in changing temperatures and barometric pressures.
Includes bulb and socket assembly with red and green bulb covers
Includes 4ft. Braided stainless steel hose, also requires #4 braided hose to connect isolator to fuel source

Rebates Available

See rebate details

See more details

Key Specs

MFG. Part #	5413
Brand	AutoMeter
Gauge Style	Mechanical

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

AutoMeter 5413 Details

Seeing the exact fuel pressure on your vehicle can mean the difference between extracting the most performance safely and expensive failures. Auto Meter's Mechanical Fuel Pressure Gauge will precisely measure your exact fuel pressure at levels of accuracy previously unheard of even in professional gauges. Designed for carbureted applications, a simple -4an connection makes installation easy. Don't take chances with your investment; a precise fuel pressure gauge could be the cheapest insurance you've ever bought. For the safety of the operator, a fuel pressure isolator is included.

Includes bulb and socket assembly with red and green bulb covers
Includes 4ft. Braided stainless steel hose, also requires #4 braided hose to connect isolator to fuel source
Use of isolator allows gauge to be mounted inside vehicle
Includes gauge mounting hardware and installation instructions

Ships with the following AutoMeter products:

Sending Unit(s):  Fuel Isolator
Tubing:  4 ft. braided stainless hose
Bulb & Socket:  3211
Light Covers:  Red 3214 & Green 3215
Mounting Hardware:  3245

Ships with the following AutoMeter products:

Sending Unit(s):  Fuel Isolator
Tubing:  4 ft. braided stainless hose
Bulb & Socket:  3211
Light Covers:  Red 3214 & Green 3215
Mounting Hardware:  3245

Charts

Installation Instructions (PDF)

Rebates

AutoMeter Hod Holidays Up To $150 MIR Select Parts

Purchase $100 or more in eligible AutoMeter products between November 1 and December 31, 2026 and receive a mail-in rebate ranging from $10 to $150, depending on your total qualifying purchase amount. Eligible brands include AutoMeter, Auto Gage, Dedenbear, Marine, Pro-Cycle, Spek-Pro, STACK, and AutoMeter Test Equipment products. To qualify, submit a completed rebate form, your original sales receipt or invoice, and the original UPC/barcode labels cut from each product box. All rebate requests must be postmarked by January 31, 2027. One rebate per household per rebate period; offer cannot be combined with other promotions and is valid only on new qualifying purchases. Incomplete, late, illegible, or non-compliant submissions will be rejected. Rebate requests are subject to verification and approval by AutoMeter Products, Inc., valid for U.S. customers only, and may take up to 12 weeks to process.

Guides & Documents

Fuel Pressure Gauges Installation Instructions (1825413)

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

AutoMeter 5413 Specifications

KEY SPECS
MFG. Part #	5413
Brand	AutoMeter
Gauge Style	Mechanical

GENERAL
Gauge Diameter	2-5/8"
Gauge Series	Analog
Gauge Face Color	Black
Needle Color	Fluorescent Red
Gauge Range	0-15 PSi
Lighted	Yes
Lighting Type	Incandescent
Light Color	White Incandescent
Bezel Finish	Brushed Aluminum
Sending Unit Included	Yes
Bezel Style	Super Bezel
Included Tubing	4 ft. braided stainless hose
Includes Bulb and Socket	Yes
Includes Light Covers	Yes
Includes Mounting Bracket(s)	Yes
GTIN Code	046074054136
Sold in Quantity	Each
