AutoMeter 3234 Stainless Line Kit for Press. Gauges, -3 AN,3 FT
AutoMeter 3234 Stainless Line Kit for Press. Gauges, -3 AN,3 FT
AutoMeter

|

#1823234

AutoMeter 3234 Stainless Line Kit for Press. Gauges, -3 AN,3 FT

  • 3ft hose length
  • PTFE lined hose, resistant to most fluids
  • Type 304 Stainless braid
See More

AN Size / Length:

-3 AN | 3 Foot

-4 AN | 3 Foot-4 AN | 4 Foot-3 AN | 4 Foot-4 AN | 6 Foot

$62.99

/each

Factory Shipped


Quantity

Need Help? Call to Order

Add to a list

Share

Product Summary

Universal Fit, 3" Overall Length

  • 3ft hose length
  • PTFE lined hose, resistant to most fluids
  • Type 304 Stainless braid
  • Maximum Operating Pressure - 3000 PSI
  • Burst Pressure - 12,000 PSI
See more details

Key Specs

MFG. Part #3234
BrandAutoMeter
Overall Length3"
Material TypeStainless Steel Braided
See more specs

Need To Know

Need help?

855.313.9176
View the Help Center

Quick and Easy Returns

Return Policy

AutoMeter 3234 Details

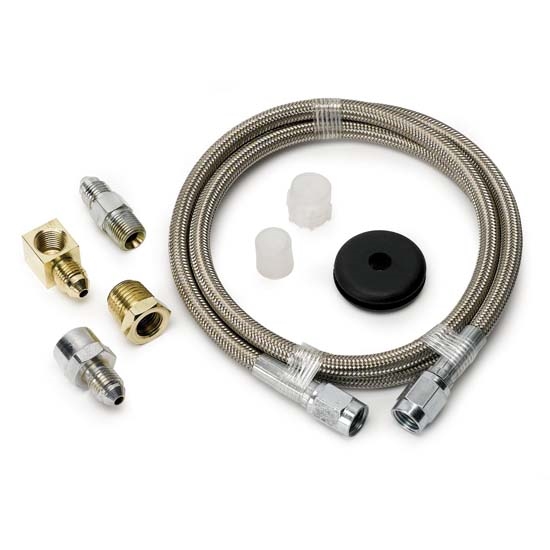

These Auto Meter tubing and line kits include 3 feet of -3AN braided stainless steel line, a firewall pass-through grommet, 1/8" NPT female right angle to -3AN male fitting, -3AN male to 1/8" NPT male fitting, -3AN male to 1/8" NPT female fitting, and an 1/8" NPT to 1/4" NPT adapter bushing. They are recommended for use with fuel pressure gauges or with mechanical pressure gauges and for remote mounting of electric gauge pressure senders.
  • Braided stainless steel
  • 3 ft. long

Ships with the following AutoMeter products:

Adapters/Fittings:  1/8" NPT female right angle to -3AN male fitting, -3AN male to 1/8" NPT male fitting, -3AN male to 1/8" NPT female fitting, 1/8" NPT to 1/4" NPT adapter bushing.

Ships with the following AutoMeter products:

Adapters/Fittings:  1/8" NPT female right angle to -3AN male fitting, -3AN male to 1/8" NPT male fitting, -3AN male to 1/8" NPT female fitting, 1/8" NPT to 1/4" NPT adapter bushing.

Charts

AutoMeter 3234 Specifications

KEY SPECS
MFG. Part #3234
BrandAutoMeter
Overall Length3"
Material TypeStainless Steel Braided
GENERAL
Included Adapter/Fitting1/8" NPT female right angle to -3AN male fitting, -3AN male to 1/8" NPT male fitting, -3AN male to 1/8" NPT female fitting, 1/8" NPT to 1/4" NPT adapter bushing.
Sold in QuantityEach
NotesLine, Braided Stainless Steel, #3 Dia., 3ft. Length, -3AN and 1/8" NPTF fittings
GTIN Code046074032349
