AutoMeter 3228 Stainless Line Kit for Press. Gauges, -4 AN,6 FT
AutoMeter 3228 Stainless Line Kit for Press. Gauges, -4 AN,6 FT
AutoMeter

|

#1823228

AutoMeter 3228 Stainless Line Kit for Press. Gauges, -4 AN,6 FT

  • 6ft hose length
  • PTFE lined hose, resistant to most fluids
  • Type 304 Stainless braid
See More

AN Size / Length:

-4 AN | 6 Foot

-4 AN | 3 Foot-4 AN | 4 Foot-3 AN | 4 Foot-3 AN | 3 Foot

$111.99

/each

Factory Shipped


Quantity

Need Help? Call to Order

Add to a list

Share

Product Summary

Universal Fit, 6" Overall Length

  • 6ft hose length
  • PTFE lined hose, resistant to most fluids
  • Type 304 Stainless braid
  • Maximum Operating Pressure - 3000 PSI
  • Burst Pressure - 12,000 PSI
See more details

Key Specs

MFG. Part #3228
BrandAutoMeter
Overall Length6"
Material TypeStainless Steel Braided
See more specs

Need To Know

Need help?

855.313.9176
View the Help Center

Quick and Easy Returns

Return Policy

AutoMeter 3228 Details

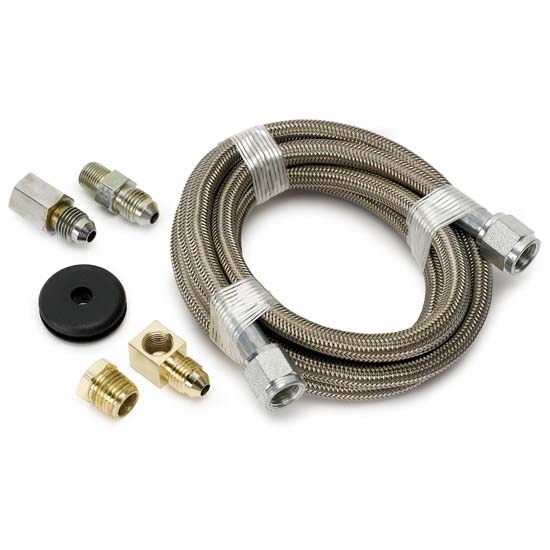

Includes 6ft. of #4 braided stainless steel line, firewall pass through grommet, 1/8" NPT female right angle to -4AN male fitting, -4AN male to 1/8" NPT male fitting, -4AN male to 1/8" NPT female fitting, 1/8" NPT to 1/4" NPT adapter bushing. Recommended for use with fuel pressure gauges. For use with mechanical pressure gauges and for remote mounting of electric gauge pressure senders.

Ships with the following AutoMeter products:

Adapters/Fittings:  1/8" NPT female right angle to -4AN male fitting, -4AN male to 1/8" NPT male fitting, -4AN male to 1/8" NPT female fitting, 1/8" NPT to 1/4" NPT adapter bushing.

Ships with the following AutoMeter products:

Adapters/Fittings:  1/8" NPT female right angle to -4AN male fitting, -4AN male to 1/8" NPT male fitting, -4AN male to 1/8" NPT female fitting, 1/8" NPT to 1/4" NPT adapter bushing.

Charts

AutoMeter 3228 Specifications

KEY SPECS
MFG. Part #3228
BrandAutoMeter
Overall Length6"
Material TypeStainless Steel Braided
GENERAL
Included Adapter/Fitting1/8" NPT female right angle to -4AN male fitting, -4AN male to 1/8" NPT male fitting, -4AN male to 1/8" NPT female fitting, 1/8" NPT to 1/4" NPT adapter bushing.
Sold in QuantityEach
NotesLine, Braided Stainless Steel, #4 Dia., 6ft. Length, -4AN and 1/8" NPTF fittings
GTIN Code046074032288
