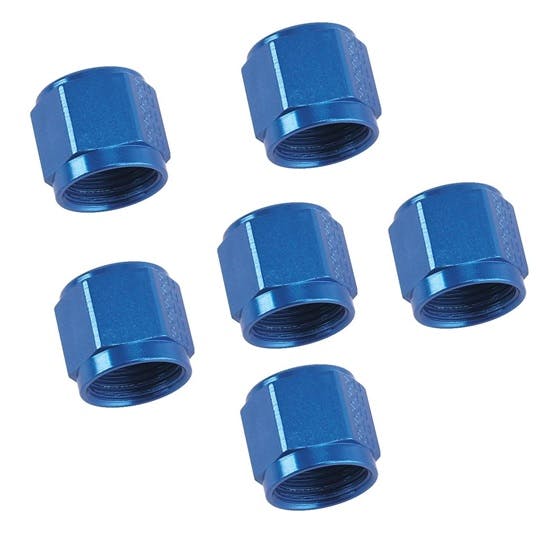

Aluminum Tube Nut Coupler, AN3 3/16 Inch
Aluminum Tube Nut Coupler, AN3 3/16 Inch

Aluminum Tube Nut Coupler, AN3 3/16 Inch

Universal Fit, Tube Fitting Nut Tube Fitting Type, -3 AN, -3 AN Tube nut Fitting End A, Blue

0 Reviews | 1 Answered Question
In Stock
Can Ship FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Aluminum Tube Nut Coupler, AN3 3/16 Inch
Aluminum Tube Nut Coupler, AN3 3/16 Inch
Aluminum Tube Nut Coupler, AN3 3/16 Inch
Aluminum Tube Nut Coupler, AN3 3/16 Inch
Aluminum Tube Nut Coupler, AN3 3/16 Inch
Aluminum Tube Nut Coupler, AN3 3/16 Inch
Aluminum Tube Nut Coupler, AN3 3/16 Inch
X
Aluminum Tube Nut Coupler, AN3 3/16 Inch
Aluminum Tube Nut Coupler, AN3 3/16 Inch
Aluminum Tube Nut Coupler, AN3 3/16 Inch
Aluminum Tube Nut Coupler, AN3 3/16 Inch
Aluminum Tube Nut Coupler, AN3 3/16 Inch
Zoomed In Image
Part # 6176055
$7.99
set
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

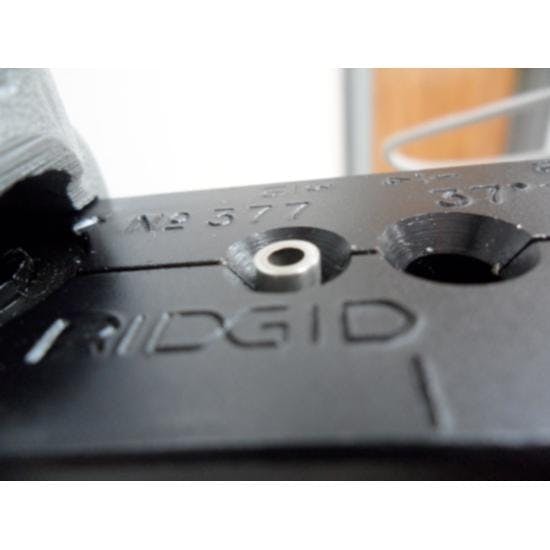

  • You need to flare the tube to 37* to match the AN fittings
  • Not for use with 45* flared lines

Details

Tube Fitting Type:
Tube Fitting Nut
AN Size:
-3 AN
Fitting End A:
-3 AN Tube nut
Hole Diameter:
0.188"
Material Type:
Aluminum
Finish:
Anodized
Color:
Blue
Thread Pitch:
3/8"-24
Angle:
Straight
Notes:
For 3/16" O.D. metal tube.
MFG. Part #:
6176055
Sold in Quantity:
Set

Info

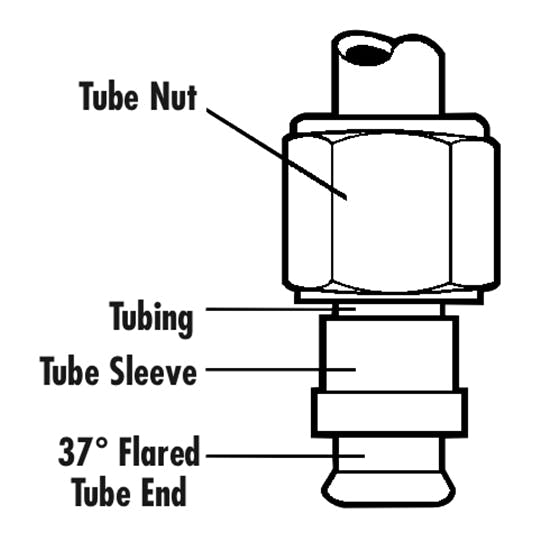

Use these tube nut couplers in conjunction with our tube sleeves (sold seperately) to seal bulkhead fittings to fuel cells, oil tanks and other applications using hard line fitting situations. You need to flare the tube to 37° to match the AN fittings. Not for use with 45° flared lines.

Fitting Thread Application Chart (GIF)
