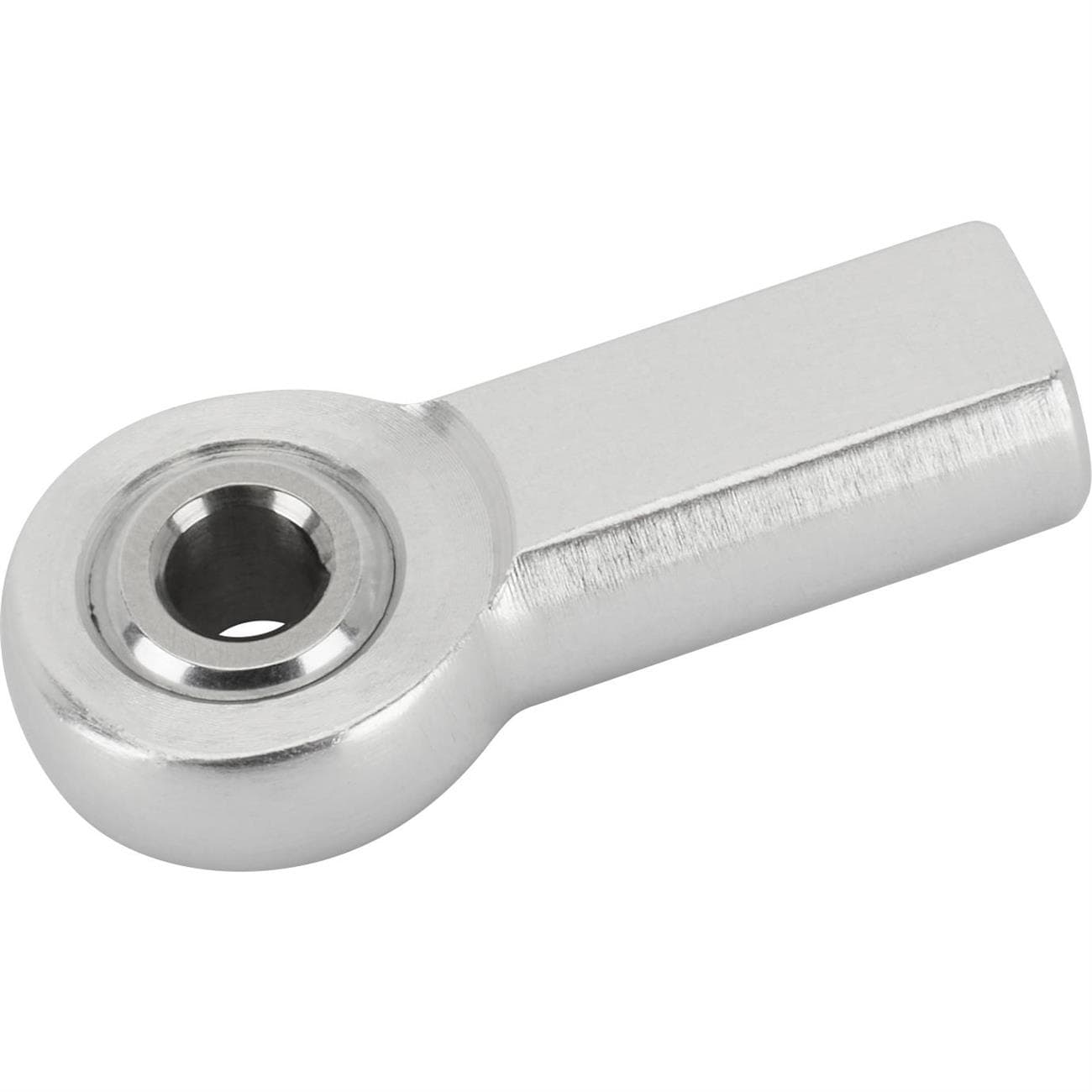

Aluminum RH Female Heim Joint Rod End, 3/16 Inch
Aluminum RH Female Heim Joint Rod End, 3/16 Inch
Universal Fit, RH Female Thread Type, Female Threads/Eyelet Rod End Attachment, Aluminum, Clear
In Stock
Can Ship FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select Vehicle
Aluminum RH Female Heim Joint Rod End, 3/16 Inch
X
Part # 1170700
$7.99
each
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
Details
Thread Type:
RH Female
Rod End Attachment:
Female Threads/Eyelet
Thread Pitch:
3/16" (10-32)
Material Type:
Aluminum
Hole Diameter:
0.19"
Rod End Style:
Kevlar/PTFE Lined
Rod End Construction:
3-piece
Grease Fitting:
No
Finish:
Anodized
Color:
Clear
MFG. Part #:
1170700
Sold in Quantity:
Each
Info
Aluminum rod ends have close tolerance, 3 piece, medium duty rod end. Hard anodized 7075-T6 aerospace quality aluminum body. Heat treated, 5210 precision ground ball, Kevlar race. Self lubricating Teflon liner to seal out dirt an debris.
Applications: Designed for motorsports application where weight is critical. All of the strength & features of the precision rod ends at half of the weight.ASSEMBLY TIP: To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.
