Part # 1170702

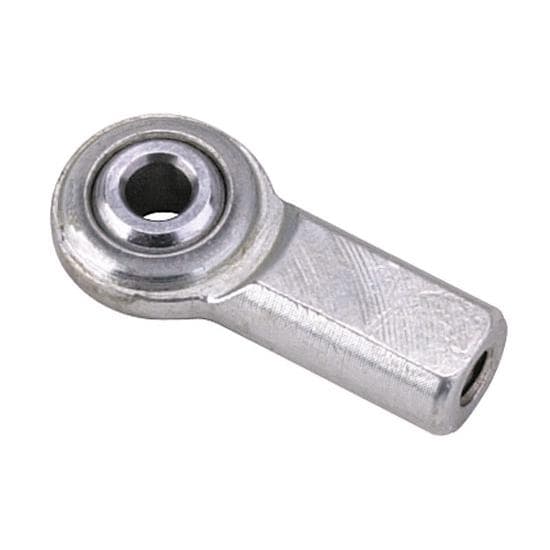

Aluminum LH Female Heim Joint Rod End, 3/16 Inch

by

|

$9.99

each

In Stock


Quantity

Select a vehicle to verify Fitment

Product Summary

Universal Fit, LH Female Thread Type, Aluminum, Clear

    Key Specs

    MFG. Part #1170702
    BrandSpeedway Motors
    Material TypeAluminum

    Need To Know

    Free Shipping on Orders Over $149

    Quick and Easy Returns

    Details

    Aluminum rod ends have close tolerance, 3 piece, medium duty rod end.  Hard anodized 7075-T6 aerospace quality aluminum body.  Heat treated, 5210 precision ground ball, Kevlar race.  Self lubricating Teflon liner to seal out dirt an debris.

    Applications: Designed for motorsports application where weight is critical.  All of the strength & features of the precision rod ends at half of the weight.

    ASSEMBLY TIP:
      To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.

    Specifications

    KEY SPECS
    MFG. Part #1170702
    BrandSpeedway Motors
    Material TypeAluminum
    GENERAL
    Thread TypeLH Female
    Rod End AttachmentFemale Threads/Eyelet
    Thread Pitch3/16" (10-32)
    Hole Diameter0.19"
    Rod End StyleKevlar/PTFE Lined
    Rod End Construction3-piece
    Grease FittingNo
    FinishAnodized
    ColorClear
    Sold in QuantityEach
