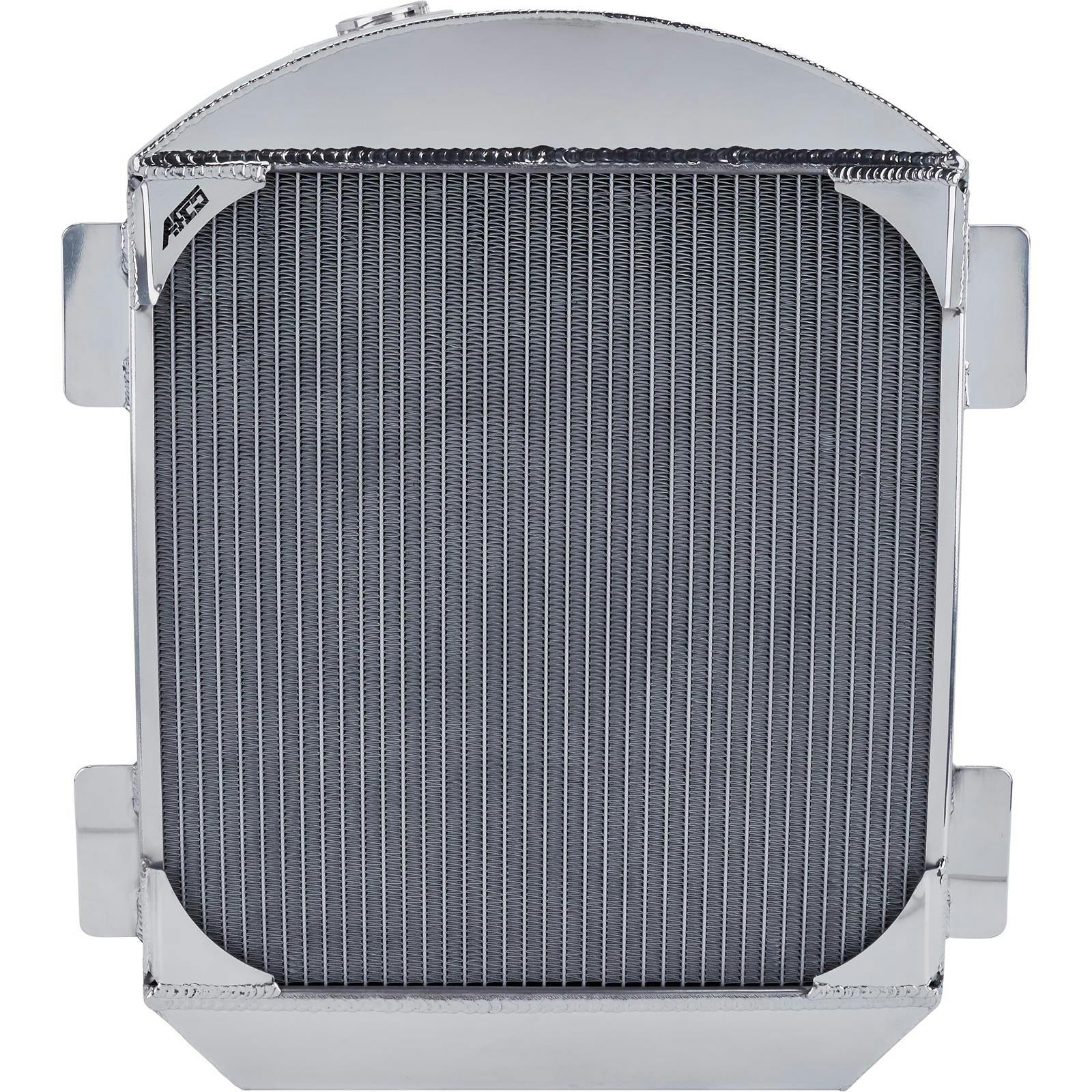

Afco 81140 Aluminum Radiator 18 x 24 Inches Universal Street Rod

$211 Off

AFCO

#10681140

Afco 81140 Aluminum Radiator 18 x 24 Inches Universal Street Rod

Name: Afco 81140 Aluminum Radiator 18 x 24 Inches Universal Street Rod
Brand: AFCO
SKU: 10681140

Write a Review

Ask a Question

Finish:

Select a finish

Fan/shroud Finish:

Select a fan/shroud finish

Trans Cooler:

Select a trans cooler

Starting from

$772.99

/each

Factory Shipped

$983.99

Save $211.00

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, Single Pass Radiator Style, Aluminum

See more details

Key Specs

MFG. Part #	Select Finish, Fan/shroud Finish and Trans Cooler
Radiator Style	Single Pass
Radiator Flow Direction	Downflow
Material Type	Aluminum
Inlet Location	Center

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Details

This universal fit street rod aluminum radiator is from Afco. It offers great performance, along with an optimized fin count ratio for maximum cooling efficiency.

17-3/4" Wide at core X 23-7/8" Tall
Mounts in the 6 cylinder position
Furnace brazed sealed core (no epoxy)
100% tested before shipping

AFCO universal fit street rod aluminum radiator. The unit is 17 3/4" W at core x 23 7/8" T. Mounts in the 6 cylinder position. It offers great fit and performance, along with an optimized fin count ratio for maximum cooling efficiency. All AFCO radiators offer a furnace brazed sealed core without the use of epoxy, and are all 100% tested before shipping. - See more at: http://www.afcodynapro.com/content/aluminum-polish-radiator-universal-street-rod-18-wide-x-24-tall-afco#sthash.NXharCuW.dpuf

When selecting Finish, Fan Shroud Finish, and Trans Cooler, here are the abbreviations:

Finish:

S = Satin Std
B = Black
P = Polished

Fan Shroud Finish

NA = No Fan and Shroud Std.
SS = Single Fan, Satin
SB = Single Fan, Black
SP = Single Fan, Polished

Trans Cooler

N = No
Y = Yes

When selecting Finish, Fan Shroud Finish, and Trans Cooler, here are the abbreviations:

Finish:

S = Satin Std
B = Black
P = Polished

Fan Shroud Finish

NA = No Fan and Shroud Std.
SS = Single Fan, Satin
SB = Single Fan, Black
SP = Single Fan, Polished

Trans Cooler

N = No
Y = Yes

Guides & Documents

Single Pass, Double Pass, Triple Pass Radiators; What’s The Difference?

How To Choose A Radiator For Your Car

Warranty Information

Speedway Motors cannot facilitate the return of defective Afco products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Afco at +1 (800)-632-2320.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

Specifications

KEY SPECS
MFG. Part #	Select Finish, Fan/shroud Finish and Trans Cooler to see
Brand	AFCO
Radiator Style	Single Pass
Radiator Flow Direction	Downflow
Material Type	Aluminum
Inlet Location	Center
Outlet Location	Lower passenger side
Row Quantity	2
Tube Size	1.00"
Overall Width Range	19.00" to 19.99"
Overall Width	19"
Overall Height Range	28.00" to 28.99"
Overall Height	28"
Overall Thickness	6"
Core Width Range	17.00" to 17.99"
Core Width	17.75"
Core Height Range	23.00" to 23.99"
Core Height	23.88"
Core Thickness	2.25"
Finish	Select Finish, Fan/shroud Finish and Trans Cooler to see
Cooling Fan	Select Finish, Fan/shroud Finish and Trans Cooler to see
Transmission Cooler	Select Finish, Fan/shroud Finish and Trans Cooler to see
Shroud Included	Select Finish, Fan/shroud Finish and Trans Cooler to see
Inlet Size	Select Finish, Fan/shroud Finish and Trans Cooler to see
Outlet Size	1.75

GENERAL
Sold in Quantity	Each
Shroud finish	Select Finish, Fan/shroud Finish and Trans Cooler to see
Color	Black
Fan Included	Select Finish, Fan/shroud Finish and Trans Cooler to see
CFM	2170 CFM
Shroud Color	Select Finish, Fan/shroud Finish and Trans Cooler to see
CFM Range	2,100-2,199 CFM
