#1061495

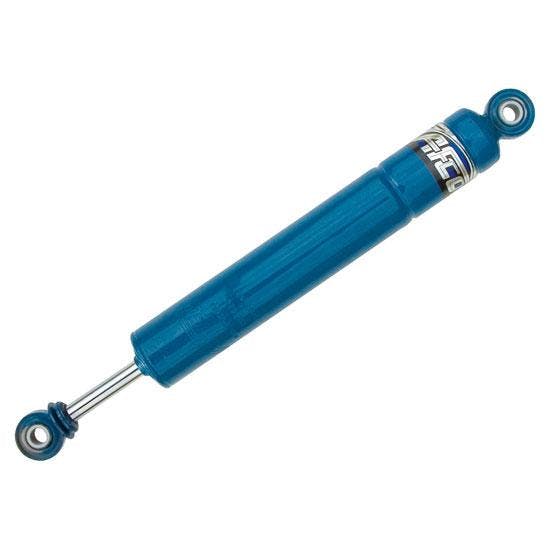

Afco 1495 14 Series Fixed Bearing Shock, 9 Inch, Comp 5/Reb 5
1 Review
|
Ask a Question
- It can be used with or without coil overs
- Can also be mounted upside-down for reduced unsprang weight
- Has a compressed length of 14.75" and an extended length measuring 23.5"
See More
$119.99
each
In Stock
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Modified, Stock Car, Twin Tube Shock Type, Painted
- It can be used with or without coil overs
- Can also be mounted upside-down for reduced unsprang weight
- Has a compressed length of 14.75" and an extended length measuring 23.5"
- Shock has a sealed body and a twin tube design
- Includes 5 compression and 5 rebound valves
See more details
Key Specs
| Shock Type | Twin Tube |
| Shock Adjustability | Non-Adjustable |
| Shock Body Material | Steel |
| Body Diameter | 2" |
| Shock Body Type | Smooth |
See more specs
Need To Know
Free Shipping on Orders Over $149
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyAFCO 1495 Details
AFCO 1495 Details
AFCO S-Series Fixed Bearing Shocks offer tremendous value by packaging race-proven design, proven value combinations, and durability in an economical, fixed bearing design that can be used with or without coilovers.
AFCO fixed bearing shocks feature quality bearing ends that allow for free movement in applications where other mounts could be bound and reduce shock effectiveness. The available standard valves, as well as split valves, allow for multiple tuning options with a simple shock swap.
- Sealed body
- Twin-Tube design
- Can be used with or without coilovers
- Can be mounted upside-down for reduced unsprung weight
- Compressed Length: 14.75"
- Extended Length: 23.50"
- Stroke: 9"
When youre ready to win, we have the winning shock!
Item Details
Compressed Length: 14.75"Extended Length: 23.50"
Comp. / Rebound: 5/5
Application
- Dirt Modifieds
- Recommended 4-Link Twin Tube Shocks-Sealed Body
- Right Rear (w/Spring Ahead)
- Rough Track Condition
- Right Rear (w/Spring Ahead)
Charts
Guides & Documents
AFCO 1495 Specifications
AFCO 1495 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 1495 |
| Brand | AFCO |
| Shock Type | Twin Tube |
| Shock Adjustability | Non-Adjustable |
| Shock Body Material | Steel |
| Body Diameter | 2" |
| Shock Body Type | Smooth |
| Shock Body Size | Small Body |
| Shock Stroke Range | 9.00" to 9.99" |
| Compression Valving | 5 |
| Rebound Valving | 5 |
| Extended Length Range | 23.00" to 23.99" |
| Extended Length | 23.5" |
| Compressed Length Range | 14.00" to 14.99" |
| Compressed Length | 14.75" |
| Finish | Painted |
| GENERAL | |
| Shock Stroke | 9.00 |
| Upper Shock Mount | 1/2" Spherical Rod End |
| Lower Shock Mount | 1/2" Spherical Rod End |
| Schrader Valve | No |
| Coil-Over Compatible | Yes |
| Valve Positions | 5 compression - 5 rebound |
| Rebuildable | No |
| Sold in Quantity | Each |
| Shock Eyelet Width | 0.625" |
| Bolt Hole Circle | .500" |
| Hardware Included | No |
