Key Specs
| Fitting Hose Size | -10 AN |
| Fitting End A | -10 AN Female |
| Fitting End B | -10 AN Hose |
| Angle | Straight |
| Material Type | Aluminum |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyAeroquip FBM1014 Details

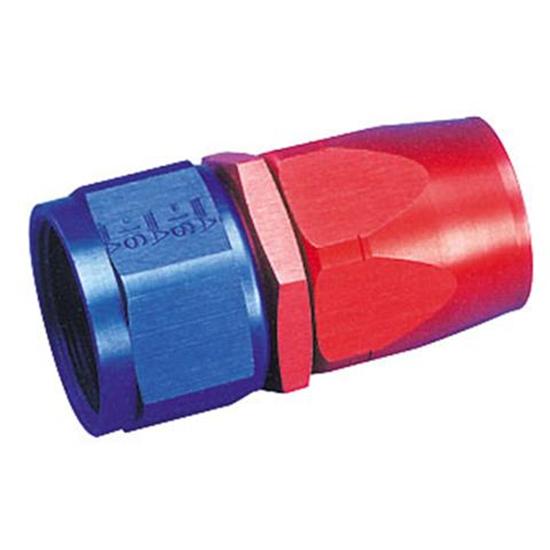

Aeroquip FBM1014 Details
This revolutionary one-piece fitting design offers motorsport enthusiasts uncompromised quality and assurance that they are using the highest performing components available. These compression-style fittings are easier to assemble and offer significantly better seal integrity than out-dated cutter-style fittings. Available in swivel with a red and blue anodized finish. For use with Aeroquip AQP® Stainless Steel Racing Hose and Aeroquip StartLite® light-weight hose (part number 617310).
- -10 AN female to push-on adapter
- Straight style fuel line hose connector/coupler
- Lightweight aluminum hose ends are completely reusable, and interchangeable
- Unique taper design ensures easy assembly
- 37° angled sealing surface guarantees a positive anti-leak seal
- Accepts a variety of lightweight aluminum AN style adapters & fittings
- Available in Red/Blue corrosion resistant finish
Straight full flow ends come in sizes of AN4, AN6, AN8, AN10, AN12, and AN16.

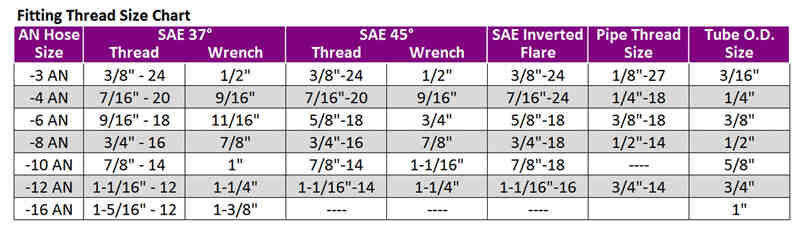

Charts
Guides & Documents
Aeroquip FBM1014 Specifications
Aeroquip FBM1014 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | FBM1014 |
| Brand | Aeroquip |
| Fitting Hose Size | -10 AN |
| Fitting End A | -10 AN Female |
| Fitting End B | -10 AN Hose |
| Angle | Straight |
| Material Type | Aluminum |
| Finish | Anodized |
| Color | Red/Blue |
| GENERAL | |
| Fitting Style | Reusable swivel |
| Reusable | Yes |
| Assembly Method | Twist-On |
| Adjustable | No |
| Sold in Quantity | Each |
| O-Rings Included | No |
| Thread Pitch | 7/8" - 14 |
| Diameter | .47" |
| GTIN Code | 678146058065 |
