Key Specs
| Fitting Hose Size | -10 AN |
| Fitting End A | -10 AN Female |
| Fitting End B | -10 AN Hose |
| Angle | 45 degree |
| Material Type | Aluminum |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyAeroquip FBM1024 Details
Aeroquip FBM1024 Details

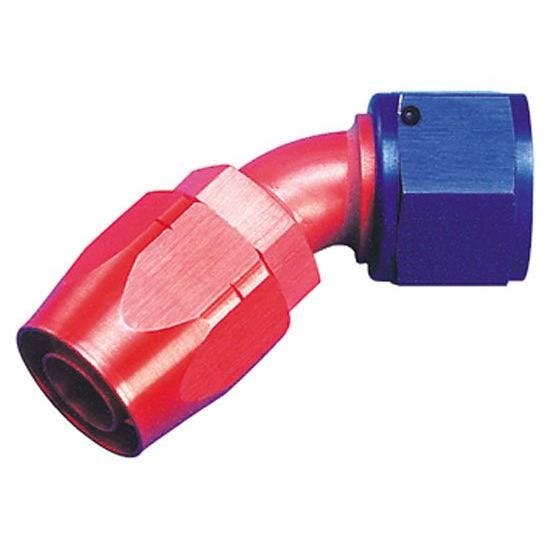

This revolutionary one-piece fitting design offers motorsport enthusiasts uncompromised quality and assurance that they are using the highest performing components available. These compression-style fittings are easier to assemble and offer significantly better seal integrity than out-dated cutter-style fittings. Available in swivel with a red and blue anodized finish. For use with Aeroquip AQP® Stainless Steel Racing Hose and Aeroquip StartLite® light-weight hose (part number 617310).
- -10 AN
- Lightweight aluminum hose ends are completely reusable, and interchangeable
- Unique taper design ensures easy assembly
- 37° angled sealing surface guarantees a positive anti-leak seal
- Accepts a variety of lightweight aluminum AN style adapters & fittings
- Available in Red/Blue corrosion resistant finish
45° Full Flow Ends come in sizes of AN4,AN6, AN8, AN10, AN12 and AN16.
Charts
Guides & Documents
Aeroquip FBM1024 Specifications
Aeroquip FBM1024 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | FBM1024 |
| Brand | Aeroquip |
| Fitting Hose Size | -10 AN |
| Fitting End A | -10 AN Female |
| Fitting End B | -10 AN Hose |
| Angle | 45 degree |
| Material Type | Aluminum |
| Finish | Anodized |
| Color | Red/Blue |
| GENERAL | |
| Fitting Style | Reusable non-swivel |
| Reusable | Yes |
| Assembly Method | Twist-On |
| Adjustable | No |
| Sold in Quantity | Each |
| O-Rings Included | No |
| Thread Pitch | 7/8" - 14 |
| GTIN Code | 678146001115 |
Ratings & Reviews
5
2 Reviews
The product stands out for its exceptional quality and durability, as affirmed by our customers. Despite some noting that it can be somewhat challenging to assemble, the product is praised for being robust and well-made. Its usability has been positively commented on when correctly installed, and customers have mentioned their willingness to repurchase the product again. To ease assembly, an aluminum vice block has been suggested. This attests to the product's quality prevailing over its minor drawbacks.
Ratings & Reviews
5
2 Reviews
The product stands out for its exceptional quality and durability, as affirmed by our customers. Despite some noting that it can be somewhat challenging to assemble, the product is praised for being robust and well-made. Its usability has been positively commented on when correctly installed, and customers have mentioned their willingness to repurchase the product again. To ease assembly, an aluminum vice block has been suggested. This attests to the product's quality prevailing over its minor drawbacks.
5
2 reviews
5
2
4
0
3
0
2
0
1
0
Filter by Ratings
Great quality but somewhat hard to assemble.
5.0
2 years ago
Chris
Memphis.
Verified
Great quality but if you are using any angle on the other end, it will be difficult to index. I ended up just putting these in my parts drawer and ordering the swivel ones. They were somewhat difficult to assemble. It takes a lot of force before the threads will engage. I ended up making a .005 oversize pilot on my lathe to push it and stretch it slightly for a few min, then pull the pilot and stick the fitting in and get the threads started. You will also want a set of aluminum vice blocks.
Would Recommend
I would buy this product again
5.0
9 years ago
Howard
Claremore.ok
Verified
Easy to install. Well made
Would Recommend
Showing 2 of 2 reviews
