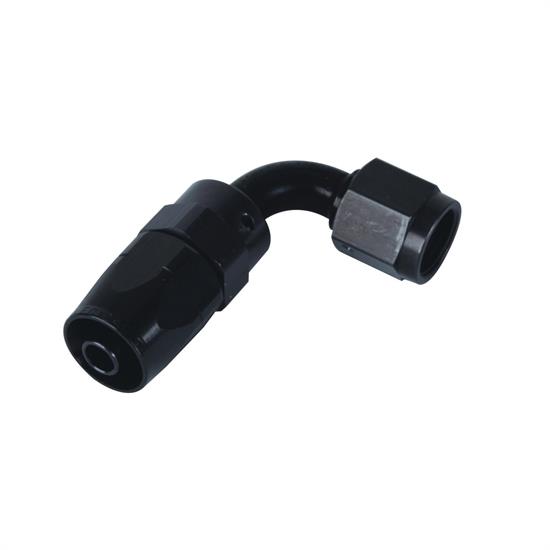

Aeroquip FBM4435 Black Hose End Coupler Fitting 90 Degree Angle -12 AN

A unique taper design ensures easy assembly
Available in a Black corrosion resistant finish
The 37° angled sealing surface guarantees a positive anti-leak seal

Angle / Color:

90 Deg / Black

Straight / Blue/Red Straight / Black 90 Deg / Blue/Red45 Deg / Black 45 Deg / Blue/Red 180 Deg / Black120 Deg / Black

$44.99

/each

In Stock

$177.35

Save $132.36

Quantity

Need Help? Call to Order

Add to a list

Product Summary

Universal Fit, -12 AN Fitting Hose Size, Aluminum

A unique taper design ensures easy assembly
Available in a Black corrosion resistant finish
The 37° angled sealing surface guarantees a positive anti-leak seal
It accepts a variety of lightweight aluminum AN style adapters & fittings
These lightweight aluminum hose ends are completely reusable, and interchangeable

See more details

Key Specs

Fitting Hose Size	-12 AN
Fitting End A	-12 AN Female
Fitting End B	-12 AN Hose
Angle	90 degree
Material Type	Aluminum

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Aeroquip FBM4435 Details

This revolutionary one-piece fitting design offers motorsport enthusiasts uncompromised quality and assurance that they are using the highest performing components available. These compression-style fittings are easier to assemble and offer significantly better seal integrity than out-dated cutter-style fittings. Available in swivel with a black anodized finish. For use with Aeroquip AQP® Stainless Steel Racing Hose and Aeroquip StartLite® light-weight hose (part number 617312).

-12 AN
Lightweight aluminum hose ends are completely reusable, and interchangeable
Unique taper design ensures easy assembly
37° angled sealing surface guarantees a positive anti-leak seal
Accepts a variety of lightweight aluminum AN style adapters & fittings
Available in a Black corrosion resistant finish

90° Full Flow Ends come in sizes of AN6, AN8, AN10 and AN12.

Charts

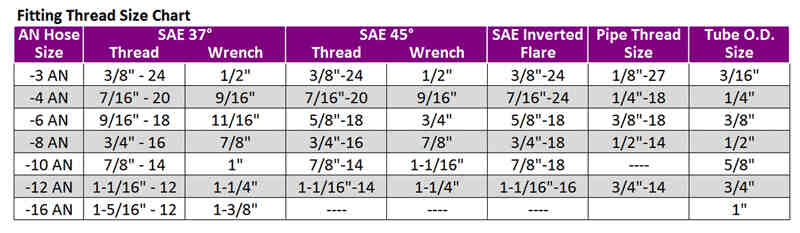

Fitting Thread Application Chart (GIF)

Guides & Documents

AN Hose Ends Technical Information (61710191)

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

Aeroquip FBM4435 Specifications

KEY SPECS
MFG. Part #	FBM4435
Brand	Aeroquip
Fitting Hose Size	-12 AN
Fitting End A	-12 AN Female
Fitting End B	-12 AN Hose
Angle	90 degree
Material Type	Aluminum
Finish	Anodized
Color	Black

GENERAL
Fitting Style	Reusable swivel
Reusable	Yes
Assembly Method	Twist-On
Adjustable	No
Sold in Quantity	Each
O-Rings Included	No
Thread Pitch	1-1/16" - 12
GTIN Code	678146025777
