Finally, a truly universal system that is built for street rods, drag racing, off-road, autocross, drifting and any other performance application you can think of! This complete unit has all the advantages of an in-tank fuel system; quiet cool operation, ideal fuel pump environments and a serious reduction in installation time and investment. In addition, this system eliminates the risk of fuel pump cavitation due to hard cornering, launching or braking thanks to innovative baffling built into each tank.

Includes Stealth 340 LPH in-tank fuel pump
Works with both carbureted and EFI systems
Return line provisions
Two AN8 vents with rollover valves
Universal 0-90 Ohm fuel level sender
Standard 12-bolt flush mount lid assembly
Natural aluminum finish
Ready to go simple installation

Item Details

20" x 19" x 10"

Charts

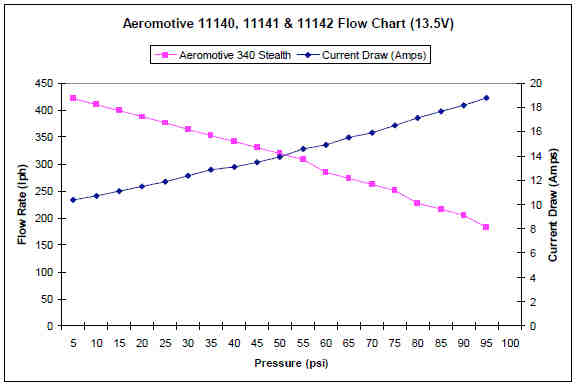

Fuel Pump Flow Chart (GIF)

Guides & Documents

Fuel Cells Technical Information (91018664)

Fuel Cells Installation Instructions (91018664)

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

Aeromotive 18664 Specifications

KEY SPECS
MFG. Part #	18664
Brand	Aeromotive
Capacity	15 gallons
Material Type	Aluminum

GENERAL
Overall Length	20"
Overall Height	10"
Overall Width	19"
Overall Length Range	20.00" to 20.99"
Overall Height Range	10.00" to 10.99"
Overall Width Range	19.00" to 19.99"
Finish	Natural
Color	Natural
Outlet Fitting Quantity	1
Outlet Fitting	-8 AN
Return Fitting	-8 AN
Fuel Cell Cap Style	Aircraft Flush Cap
Safety Foam Included	No
Pickup Tube Included	Yes
Sold in Quantity	Each
GTIN Code	684980004649

Ratings & Reviews

Be the first to write a review.

Questions & Answers

1 Question • 1 Answer

Sort Questions

I am installing a LS2 motor in my 1930 model A sedan will this cell work . Is it set up for EFI?

by flyingplowman

• 14 years ago

1 answer

View Answer

1 of 1 questions shown
