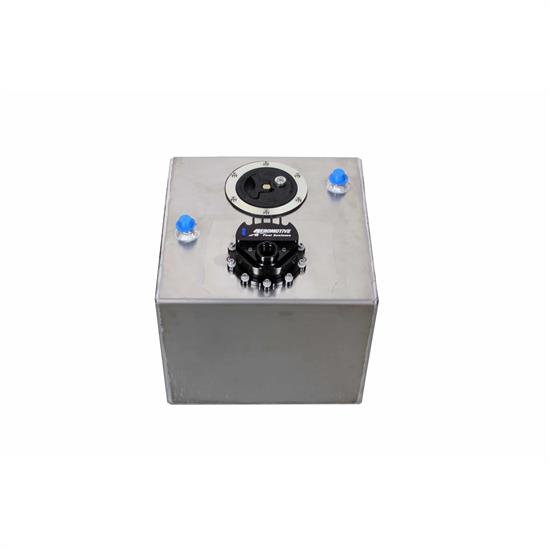

Aeromotive 18656 TVS Fuel Pump/Fuel Cell Assembly, 20 Gal, 10 GPM
Aeromotive 18656 TVS Fuel Pump/Fuel Cell Assembly, 20 Gal, 10 GPM
Universal Fit, Gasoline | Alcohol Fuel Type, Black, EFI Fuel System Type, Regulator Required
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select Vehicle
Aeromotive 18656 TVS Fuel Pump/Fuel Cell Assembly, 20 Gal, 10 GPM
X
We estimate this item will ship on or before April 13th.
Part # 91018656
$2,692.27
each
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
Details
Fuel Type:
Gasoline | Alcohol
Color:
Black
Sending Unit Included:
No
Sold in Quantity:
Each
GTIN Code:
684980011876
MFG. Part #:
18656
Electric Fuel Pump Outlet Fitting(s):
-10 AN O-Ring Female
Fuel System Type:
EFI
Free Flow Rate:
600 GPH / 2271 LPH
Fuel Filter Included:
No
Fuel Line Included:
No
Fuel Pressure Regulator Included:
No
Horsepower Rating (Force Induction):
4900 HP
Horsepower Rating (Naturally Aspirated):
6900 HP
Mounting Bracket Included:
Yes
Regulator Required:
Yes
Fuel Pump Included:
Yes
Info
Aeromotives new Brushless Gear Pumps are now built in with 2 different controllers, the orginal standard configuration and the new true variable speed controller. The orginal standard configuration provides continuous full speed operation while the new true variable speed controller allows you to control the fuel flow.
Fuel injected engines:
- Up to 6,900 FWHP on GAS – naturally aspirated
- Up to 4,900 FWHP on GAS – forced air induction
- Up to 4,830 FWHP on E85 – naturally aspirated
- Up to 3,430 FWHP on E85 – forced air induction
Features:
- E85 Compatible, reduce max FWHP by 30%
- Lighter than the traditional external mount pumps.
- Reduced current draw at higher, EFI pressures.
- Extended service life in methanol and ethanol.
- New integral spur-gear pumping mechanism.
- 20 Gallon Fuel Cell.
Important Messages
- This item ships directly from the manufacturer. It may take an additional 2 business days for Aeromotive to ship this item.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
