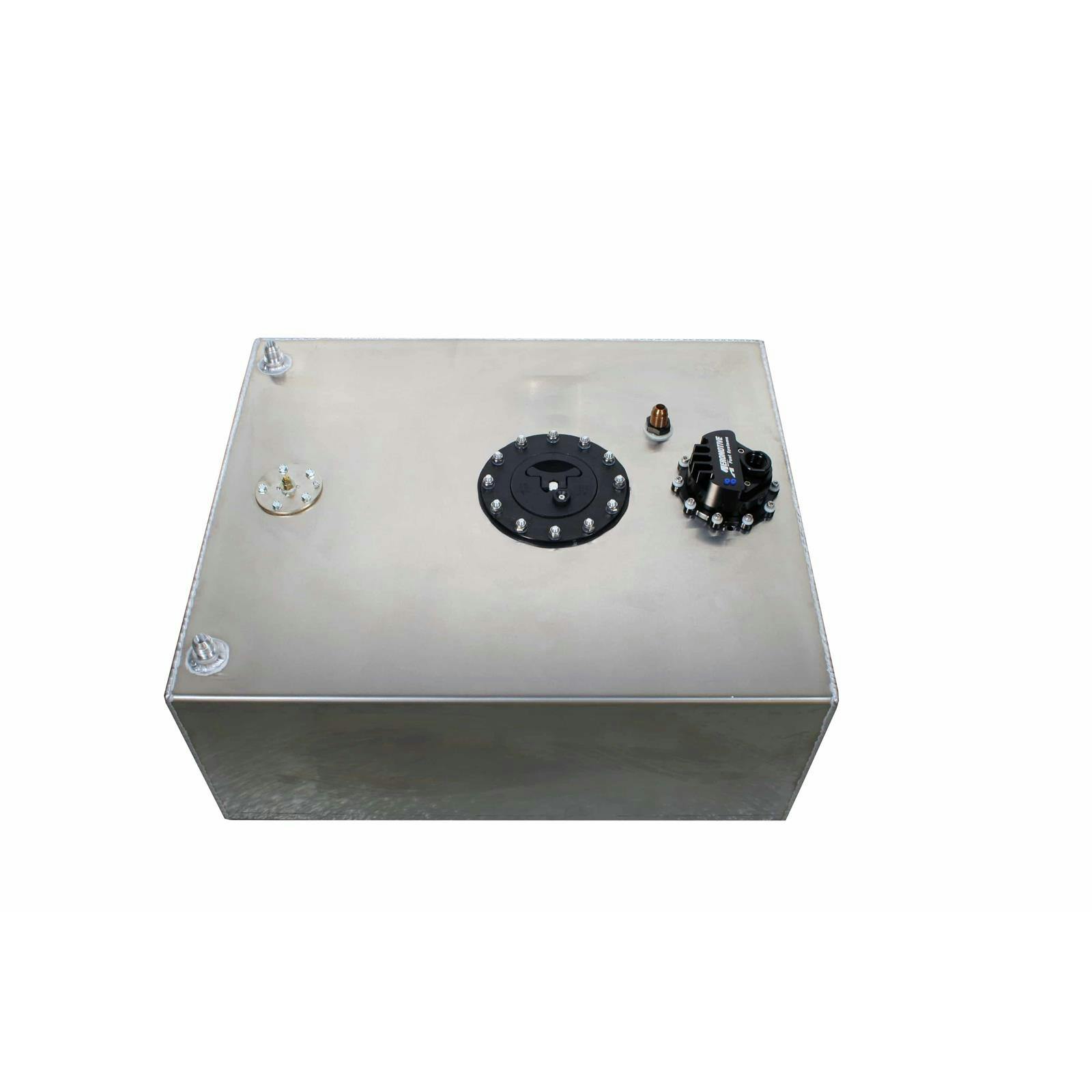

Aeromotive 18655 TVS Fuel Pump/Fuel Cell Assembly, 20 Gal, 7 GPM
$3,370.68
/each
Factory Shipped
$3,707.75
Save $337.07
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyAeromotive 18655 Details
Aeromotive 18655 Details
Aeromotives new Brushless Gear Pumps are now built in with 2 different controllers, the orginal standard configuration and the new true variable speed controller. The orginal standard configuration provides continuous full speed operation while the new true variable speed controller allows you to control the fuel flow.
Fuel injected engines:
- Up to 4,800 FWHP on GAS – naturally aspirated
- Up to 3,400 FWHP on GAS – forced air induction
- Up to 3,360 FWHP on E85 – naturally aspirated
- Up to 2,380 FWHP on E85 – forced air induction
Features:
- E85 Compatible, reduce max FWHP by 30%
- Lighter than the traditional external mount pumps.
- Reduced current draw at higher, EFI pressures.
- Extended service life in methanol and ethanol.
- New integral spur-gear pumping mechanism.
- 20 Gallon Fuel Cell.
Guides & Documents
CARB Warning
For race/ off road use only
CARB Warning
For race/ off road use only
Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.
Aeromotive 18655 Specifications
Aeromotive 18655 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 18655 |
| Brand | Aeromotive |
| GENERAL | |
| Fuel Type | Gasoline | Alcohol |
| Color | Black |
| Sending Unit Included | No |
| Sold in Quantity | Each |
| GTIN Code | 684980011869 |
| Electric Fuel Pump Outlet Fitting(s) | -10 AN O-Ring Female |
| Fuel System Type | EFI | Carb |
| Free Flow Rate | 420 GPH / 1590 LPH |
| Fuel Filter Included | No |
| Fuel Line Included | No |
| Fuel Pressure Regulator Included | No |
| Horsepower Rating (Force Induction) | 3400 HP |
| Horsepower Rating (Naturally Aspirated) | 4800 HP |
| Mounting Bracket Included | Yes |
| Regulator Required | Yes |
| Fuel Pump Included | Yes |
