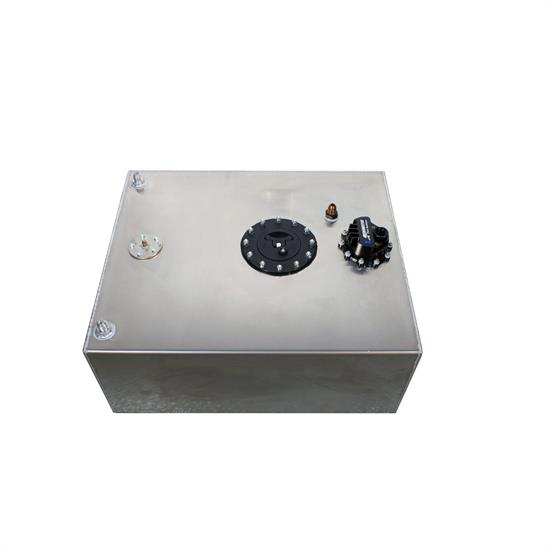

Aeromotive 18371 Spur Pro Brushless Fuel Cell, 20 Gallon

Name: Aeromotive 18371 Spur Pro Brushless Fuel Cell, 20 Gallon
Brand: Aeromotive
SKU: 10918371
Price: 2782.65 USD
Availability: InStock

Write a Review

Ask a Question

$2,782.65

/each

Factory Shipped

$3,060.92

Save $278.27

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Key Specs

MFG. Part #	18371
Brand	Aeromotive

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Aeromotive 18371 Details

The market leader in fuel delivery systems and components, Aeromotive introduces its first brushless fuel pump series. The 3.5 Brushless Gear pump provides the Pro-Series Fuel Pump performance the world has come to trust and depend on, now available with the latest Spur-Gear pumping mechanism and brushless-motor technology. Built for up to 90 psi of sustained pressure, this new pump supports Pro-Series flow at higher pressures with minimal drop in flow. This new brushless spur-gear pump is able to move more fuel and sustain higher pressures without failure.

ORB-10 outlet port.
ORB-12 inlet with integrated pickup and 100-m Prefilter.
For EFI applications use regulator P/N 13134 or P/N 13305.
For carbureted applications use regulator P/N 13202 or P/N 13212.
Capable of 90-PSI continuous operating pressure, 150 PSI peak pressure, base plus boost.
Perfect for 'blow-through' carbureted engines up to 2,000 FWHP.

Brushless motors employ sensors to monitor rotor angle to provide faster and more reliable phase shifting, producing more torque capacity and motor efficiency. Instead of the armature rotating, in a brushless motor the magnets rotate around the armature and the motor controller manages the phase shift to keep the motor rotating under load (load is related to pressure in a fuel pump). With more torque per watt and a higher torque to weight ratio, brushless motors produce lower noise and deliver higher reliability.With a higher level of efficiency, down to fractions of a second in design speed control, the new Aeromotive brushless fuel pumps provide precise control of fuel pump RPM as pressure rises, better maintaining pump RPM and flow, producing a flatter flow curve. Tight tolerances result in less current draw, less heat and extended life. Now there is the ability to upgrade to a premium brushless pump for faster, more reliable and uninterrupted fuel delivery with less power consumption and potential for wear or failure.

Guides & Documents

Fuel Cells Installation Instructions (10918371)

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

WARNING:

Cancer and Reproductive Harm – www.P65Warnings.ca.gov

CARB warning

Aeromotive 18371 Specifications

KEY SPECS
MFG. Part #	18371
Brand	Aeromotive

GENERAL
GTIN Code	684980008937
