Product Summary

Universal Fit, 3-15 Fuel Pressure Rating (psi)

  • Features a lightweight aluminum construction with a black anodized finish for added corrosion resistance
  • The Aeromotive X1 Carburetor Bypass Regulator is engineered to provide dependable fuel pressure regulation
  • Has a 3-15 PSI pressure range and a 1:1 boost reference port for easy forced induction connection
  • Both the inlet and the outlet return port have -8AN fittings
  • This regulator has a 3-15 PSI range and provides flexible performance that grows as your fuel system grows
See more details

Key Specs

MFG. Part #13304
BrandAeromotive
Material TypeAluminum
See more specs

Need To Know

Quick and Easy Returns

Return Policy

Aeromotive 13304 Details

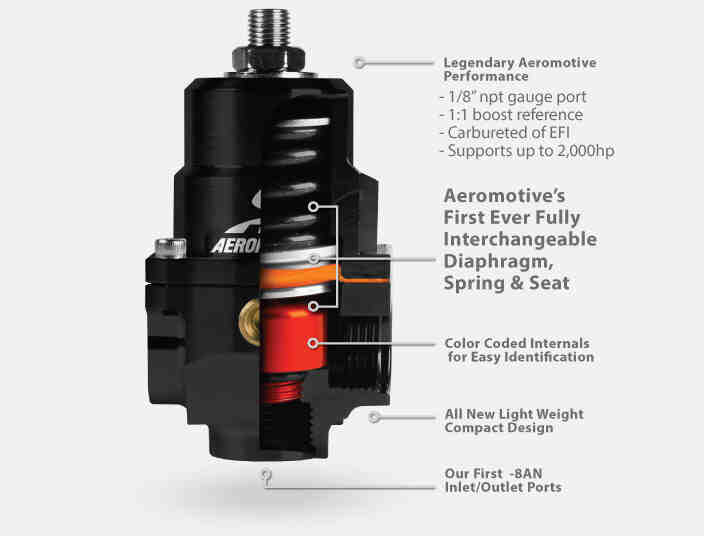

No matter the application, the Aeromotive X1 Carburetor Bypass Regulator provides dependable fuel pressure regulation. If you are making the change from a carburetor to EFI or vise versa there is no longer a need to purchase a new regulator. Simply utilize the Aeromotive 13304 conversion kit. Replace original X1 Series regulator internals with the 13304 X1 conversion kit, and you have a regulator with vastly different characteristics. The X1 Series provides flexible performance that grows as your fuel system grows.

  • Aluminum construction
  • Anodized finish
  • 3-15 PSI pressure range
  • -8 AN inlet, outlet and return port
  • 1/8" NPT gauge port
  • 1:1 boost reference port for easy forced induction connection

Charts

CARB Warning

For race/ off road use or for use on pre-1966 vehicles.

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

Aeromotive 13304 Specifications

KEY SPECS
MFG. Part #13304
BrandAeromotive
Material TypeAluminum
GENERAL
Fuel Pressure Rating (psi)3-15
Inlet Quantity1
Outlet Quantity1
Fittings IncludedNo
Sold in QuantityEach
GTIN Code684980006544
