Key Specs
| Wheel Diameter | 15 Inch |
| Width | 10" |
| Wheel Bolt Pattern (in.) | 4x4 in. |
| Wheel Bolt Pattern (mm) | 4x101.6 mm |
| Wheel Backspace | 2" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyAero 55-104020 Details
Aero 55-104020 Details

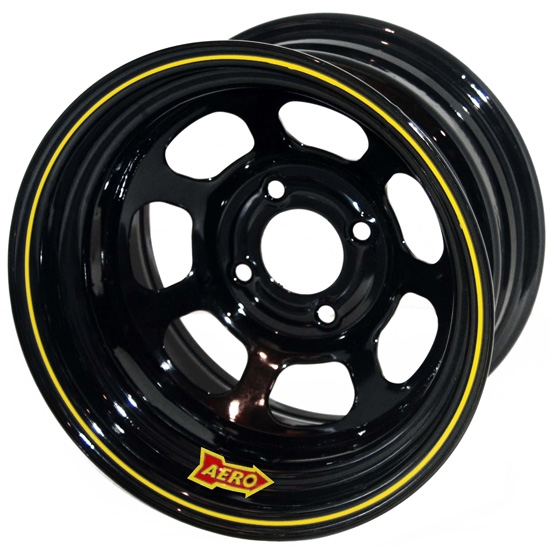

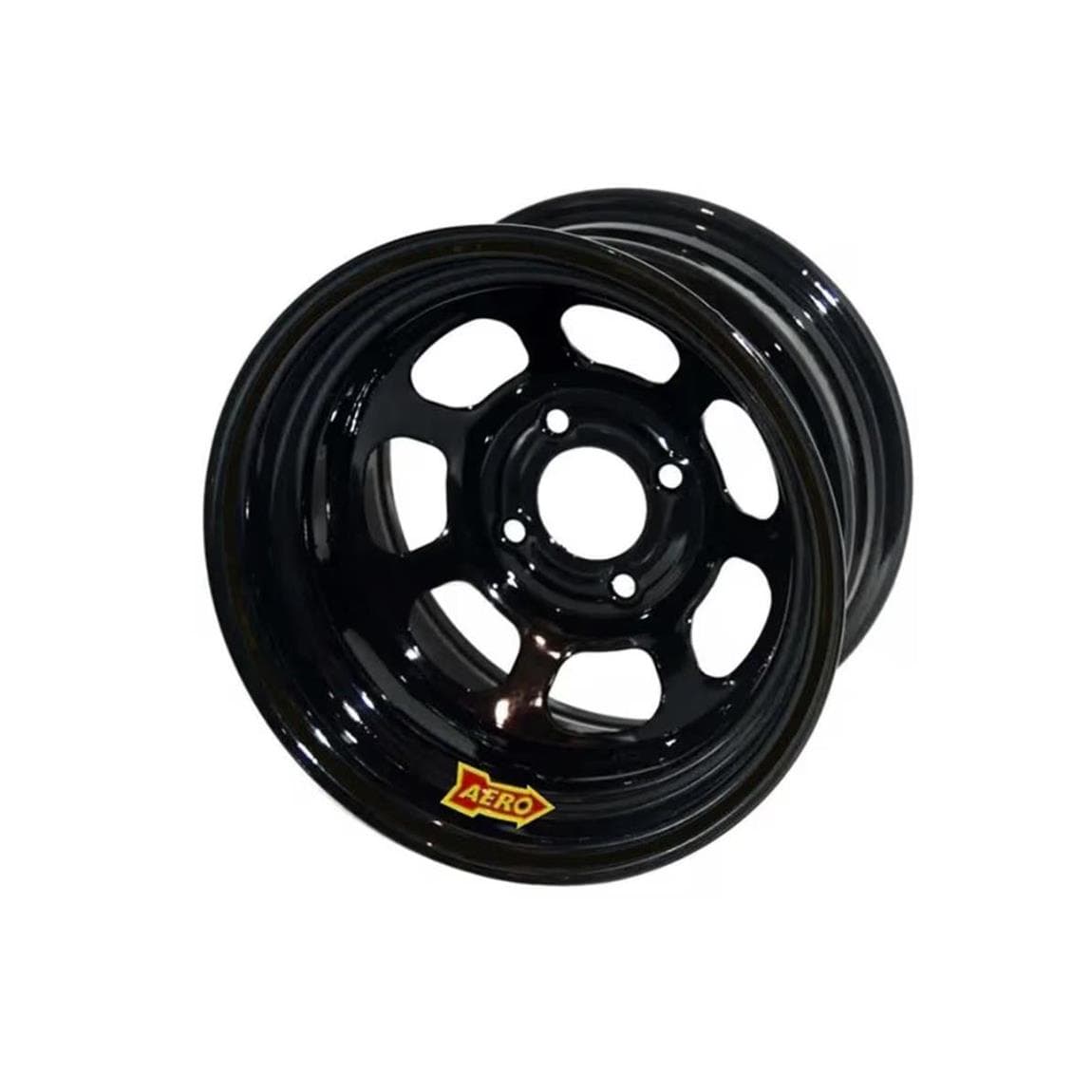

Aero Race Wheels 55 Series steel wheels are designed for oval track use. The roll-formed 55 Series wheels have a 7-hole D-window center disc made of HSLA material for strength and durability. They feature knife edged bead humps, maximum bead seats, and low run-out.
- Recommended for oval track use
- Must use 1" O.D. lug nuts with 45 degree taper
Note: The 4-on-4" bolt pattern will work on 4 on 100 mm if NOT using 5/8" studs.
Learn more about determining the proper wheel offset, torque sequence, and bolt pattern for your application by reading our tech article, Racing Wheel Principles.
Aero 55-104020 Specifications
Aero 55-104020 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 55-104020 |
| Brand | Aero |
| Wheel Diameter | 15 Inch |
| Width | 10" |
| Wheel Bolt Pattern (in.) | 4x4 in. |
| Wheel Bolt Pattern (mm) | 4x101.6 mm |
| Wheel Backspace | 2" |
| Wheel Material Type | Steel |
| Wheel Backspace Range | 2.000" - 2.499" |
| Finish | Powder Coated |
| Color | Black |
| Beadlock Included | No |
| Material Type | Steel |
| Bolt Pattern | 4 on 4" |
| Diameter | 15" |
| GENERAL | |
| Weight | 25 lbs. |
| Sold in Quantity | Each |
| Beadlock | No |
