Aero 53-224770 53 Series 15x12 Wheel, BLock, 5 on 4-3/4 BP, 7 Inch BS

-10%

#25853224770

Aero 53-224770 53 Series 15x12 Wheel, BLock, 5 on 4-3/4 BP, 7 Inch BS

Name: Aero 53-224770 53 Series 15x12 Wheel, BLock, 5 on 4-3/4 BP, 7 Inch BS
Brand: Aero
SKU: 25853224770
Price: 237.99 USD
Availability: InStock

Write a Review

1 Question

Backspace:

7 Inch

2 Inch 3 Inch 4 Inch 5 Inch

$237.99

/each

Factory Shipped

$265.32

Save $27.33

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

15 Inch Wheel Diameter, 12" Width, 7" Wheel Backspace

See more details

Key Specs

MFG. Part #	53-224770
Wheel Diameter	15 Inch
Width	12"
Wheel Bolt Pattern (in.)	5x4.75 in.
Wheel Bolt Pattern (mm)	5x120.65 mm

See more specs

Need To Know

Made to Order

This custom item will ship when completed

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Installation Details

Installation Tips

For off road use only. The following must be considered when using Aero wheels for on highway/street use when the wheel/tire assembly is being balanced. Aero wheels are lug centric, which means they are built off of, and must be balanced using, the bolt circle and NOT the wheel center hole. Improper use of a tire balancer that centers the wheel on the hub bore, not the bolt circle, will result in an incorrect reading for rim runout as the center hole is not in the perfect center of the bolt pattern. The only machine capable of performing a lug centric balance is the Hunter GSP 9700 with the flange plate bolt circle adapter and no centering cone.

Have a Question?

Call one of our U.S.-based customer service professionals.

Tech Support - Opens at NaNpm (UTC)

Aero 53-224770 Details

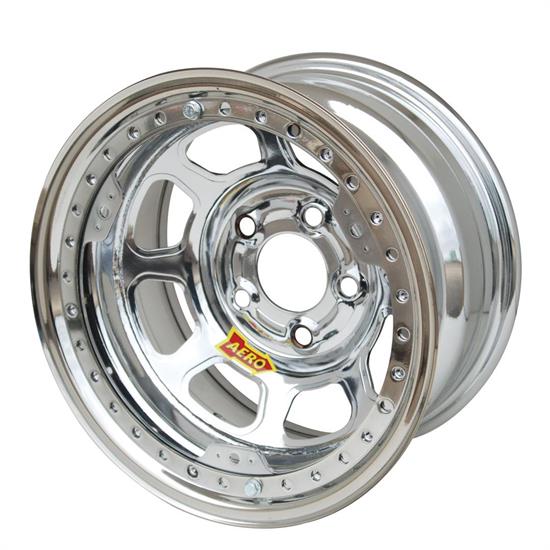

Aero Race Wheels 53 Series steel wheels are designed for dirt oval track use only. The roll-formed 53 Series wheels feature a 7-hole D-window center disc made of HSLA material for strength and durability. They also come with inner and outer beadlock rings that are CNC laser cut, using 16 zinc plated flange bolts. All beadlocks include mudcover installation kits with mudcover tabs incorporated into the inner ring to eliminate the need for welding.

Recommended for dirt track use only
Designed for vehicles up to 4000 lbs.
Must use 1" O.D. lug nuts with 45 degree taper
Standard beadlock ring color is matched to the wheel color

Learn more about determining the proper wheel offset, torque sequence, and bolt pattern for your application by reading our tech article, Racing Wheel Principles.

WARNING:

Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Aero 53-224770 Specifications

KEY SPECS
MFG. Part #	53-224770
Brand	Aero
Wheel Diameter	15 Inch
Width	12"
Wheel Bolt Pattern (in.)	5x4.75 in.
Wheel Bolt Pattern (mm)	5x120.65 mm
Wheel Backspace	7"
Wheel Material Type	Steel
Wheel Backspace Range	7.00" and greater
Finish	Chrome
Color	Chrome
Beadlock Included	Yes
Material Type	Steel
Bolt Pattern	5 on 4.75"
Diameter	15"

GENERAL
Sold in Quantity	Each
Notes	Beadlock ring color matched to wheel color.
Beadlock Functional	Yes
DOT-Approved	No
Weight	31 lbs.
Beadlock	Yes
