Add to Cart
$64.99

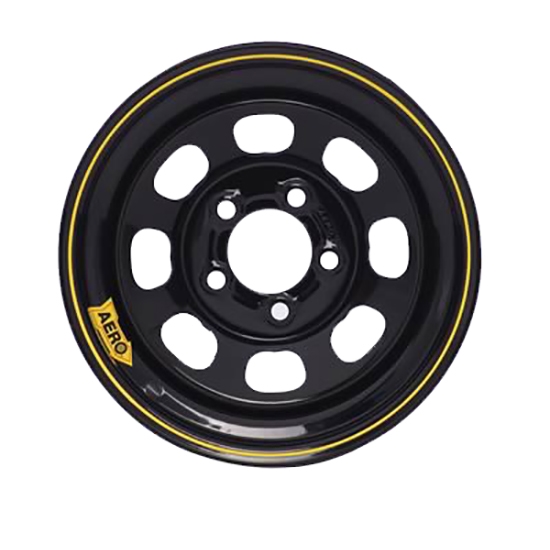

Aero 50 Series 15 Inch Race Wheel, 5x4.5 Pattern, 4 In. Backspace
Aero 50 Series 15 Inch Race Wheel, 5x4.5 Pattern, 4 In. Backspace

Aero 50 Series 15 Inch Race Wheel, 5x4.5 Pattern, 4 In. Backspace

15 Inch Wheel Diameter, Steel, 7" Width, 5x4.5 in. Wheel Bolt Pattern (in.), 4" Wheel Backspace

0 Reviews | 0 Answered Questions
In Stock
Can Ship FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Aero 50 Series 15 Inch Race Wheel, 5x4.5 Pattern, 4 In. Backspace
Aero 50 Series 15 Inch Race Wheel, 5x4.5 Pattern, 4 In. Backspace
Aero 50 Series 15 Inch Race Wheel, 5x4.5 Pattern, 4 In. Backspace
X
Aero 50 Series 15 Inch Race Wheel, 5x4.5 Pattern, 4 In. Backspace
Zoomed In Image
Part # 25850174540
$64.99
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Wheel Diameter:
15 Inch
Material Type:
Steel
Width:
7"
Wheel Bolt Pattern (in.):
5x4.5 in.
Wheel Bolt Pattern (mm):
5x114.3 mm
Wheel Backspace Range:
4.000" - 4.499"
Wheel Backspace:
4"
Finish:
Powder Coated
Color:
Black
Beadlock Included:
No
Position:
Front and Rear
Diameter:
15"
Weight:
21 lbs.
MFG. Part #:
50-174540
Sold in Quantity:
Each
Beadlock:
No
Bolt Pattern:
5 on 4.5"

Info

This 50 series steel wheel from Aero Race Wheels offers great quality and durability without breaking the bank. This economically priced 50-series wheel features a knife-edge bead hump, maximum sized bead seats, lower runout, and a HSLA material D-window center.

  • Knife edged bead humps, maximum bead seats
  • Low run-out and center disc made with HSLA material
  • 15 inch wheels
  • 7 inch width
  • 23 lbs.
  • 5 on 4-1/2" bolt pattern
  • 4" backspace
  • Black finish

Learn more about determining the proper wheel offset, torque sequence, and bolt pattern for your application by reading our tech article. Racing Wheel Principles.

Notes

For off road use only. The following must be considered when using Aero wheels for on highway/street use when the wheel/tire assembly is being balanced. Aero wheels are lug centric, which means they are built off of, and must be balanced using, the bolt circle and NOT the wheel center hole. Improper use of a tire balancer that centers the wheel on the hub bore, not the bolt circle, will result in an incorrect reading for rim runout as the center hole is not in the perfect center of the bolt pattern. The only machine capable of performing a lug centric balance is the Hunter GSP 9700 with the flange plate bolt circle adapter and no centering cone.

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
