Product Summary

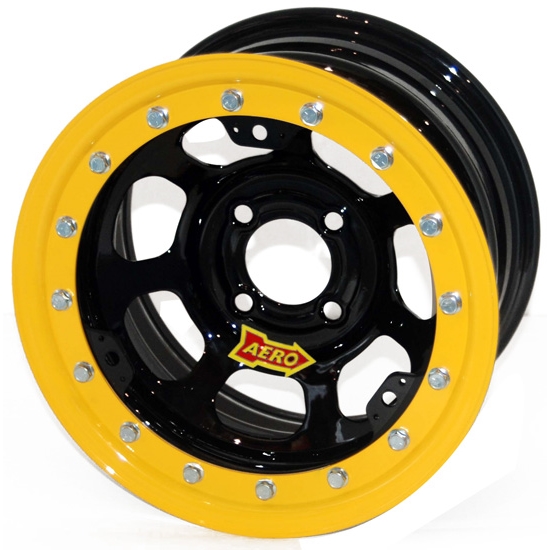

13 Inch Wheel Diameter, Steel, 8" Width, Powder Coated

    Key Specs

    Wheel Diameter13 Inch
    Material TypeSteel
    Width8"
    Wheel Bolt Pattern (in.)4x4 in.
    Wheel Bolt Pattern (mm)4x101.6 mm

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Aero 33-184040 Details

    Aero Race Wheels 33 Series steel wheels are designed for dirt oval track use only. The CNC roll-formed 33 Series wheels have very low run-out beadlocks, using 16 zinc plated flange bolts. They feature a 7-hole D-window center disc made of HSLA material and include a mudcover installation kit.  Mudcover tabs are incorporated into the inner ring to eliminate the need for welding.

    • Recommended for dirt use only
    • Designed for vehicles up to 2500 lbs.
    • Must use 1" O.D. lug nuts with 45 degree taper
    • Standard beadlock ring color is matched to the wheel color

    Note: The 4-on-4" bolt pattern will work on 4 on 100 mm if NOT using 5/8" studs.

    Learn more about determining the proper wheel offset, torque sequence, and bolt pattern for your application by reading our tech article, Racing Wheel Principles.

    Aero 33-184040 Specifications

    KEY SPECS
    MFG. Part #33-184040
    BrandAero
    Wheel Diameter13 Inch
    Material TypeSteel
    Width8"
    Wheel Bolt Pattern (in.)4x4 in.
    Wheel Bolt Pattern (mm)4x101.6 mm
    Wheel Backspace4"
    Wheel Offset-13 mm
    Wheel Backspace Range4.000" - 4.499"
    FinishPowder Coated
    ColorBlack
    Beadlock IncludedYes
    GENERAL
    Beadlock FunctionalYes
    DOT-ApprovedNo
    Diameter13"
    Weight21 lbs.
    Sold in QuantityEach
    NotesBeadlock ring color matched to wheel color.
    Lug Nut Seat Style45 Degree Conical
    BeadlockYes
    Bolt Pattern4 on 4"
