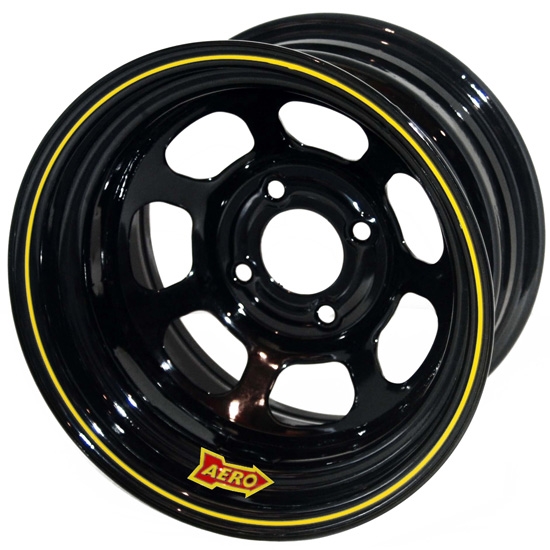

Aero 30-104240 30 Series 13x10 Inch Wheel, 4x4.25 BP, 4 Inch BS

#25830104240

Aero 30-104240 30 Series 13x10 Inch Wheel, 4x4.25 BP, 4 Inch BS

Name: Aero 30-104240 30 Series 13x10 Inch Wheel, 4x4.25 BP, 4 Inch BS
Brand: Aero
SKU: 25830104240
Price: 110.99 USD
Availability: InStock

Write a Review

Ask a Question

Backspace:

4 Inch

1 Inch 2 Inch 3 Inch 5 Inch

$110.99

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

13 Inch Wheel Diameter, 10" Width, 4" Wheel Backspace

See more details

Key Specs

Wheel Diameter	13 Inch
Width	10"
Wheel Bolt Pattern (in.)	4x4.25 in.
Wheel Bolt Pattern (mm)	4x108 mm
Wheel Backspace	4"

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Installation Details

Installation Tips

For off road use only. The following must be considered when using Aero wheels for on highway/street use when the wheel/tire assembly is being balanced. Aero wheels are lug centric, which means they are built off of, and must be balanced using, the bolt circle and NOT the wheel center hole. Improper use of a tire balancer that centers the wheel on the hub bore, not the bolt circle, will result in an incorrect reading for rim runout as the center hole is not in the perfect center of the bolt pattern. The only machine capable of performing a lug centric balance is the Hunter GSP 9700 with the flange plate bolt circle adapter and no centering cone.

Have a Question?

Call one of our U.S.-based customer service professionals.

Tech Support - Opens at NaNpm (UTC)

Aero 30-104240 Details

Aero Race Wheels 30 Series steel wheels are designed for asphalt or dirt oval track use. The roll-formed 30 Series wheels have low run-out with knife-edged bead humps. They feature a 7-hole D-window center disc made of HSLA material with a new torque ring design.

Can be used for both dirt and asphalt
Designed for vehicles up to 2500 lbs.
Must use 1" O.D. lug nuts with 45 degree taper
All 30 Series have safety bead humps

Learn more about determining the proper wheel offset, torque sequence, and bolt pattern for your application by reading our tech article, Racing Wheel Principles.

CA Prop 65

Aero 30-104240 Specifications

KEY SPECS
MFG. Part #	30-104240
Brand	Aero
Wheel Diameter	13 Inch
Width	10"
Wheel Bolt Pattern (in.)	4x4.25 in.
Wheel Bolt Pattern (mm)	4x108 mm
Wheel Backspace	4"
Wheel Material Type	Steel
Wheel Backspace Range	4.000" - 4.499"
Finish	Powder Coated
Color	Black
Beadlock Included	No
Material Type	Steel
Bolt Pattern	4 on 4.25"
Diameter	13"

GENERAL
Position	Front and Rear
Weight	19 lbs.
Sold in Quantity	Each
Beadlock	No
