#91604107-5/16

AN6 Fuel Tank Pick Up Lines, 5/16 Inch

(2) hose clamps,
(1) steel weld bung,
(1) aluminum weld bung

Size:

5/16 Inch (Fuel Tank Pickup Lines Size Chart)

$47.99

On Backorder

This part is Backordered. We currently do not have an estimate when this item will ship.

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, 12.00" Hose Length

(2) hose clamps,
(1) steel weld bung,
(1) aluminum weld bung
12" of 3/8" or 5/16" high pressure hose.
(1)Unique fitting has a -6 AN flare for your fuel line, 3/8" NPT threads to screw into the weld bung, and a hose barb past the 3/8" NPT threads to attach the pickup hose in the tank to a 3/8" or 5/16" hose barbe

See more details

Key Specs

MFG. Part #	91604107-5/16
Brand	Speedway Motors
Hose Length	12.00"
Fitting End A	5/16" Hose barb
Fitting End B	-6 AN Male

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Speedway Motors 91604107-5/16 Details

This fuel cell fuel pick-up kit includes a 12" length of high pressure push-on hose (choose 5/16" or 3/8"), a push-on hose to -6 AN flare fitting, steel and aluminum weld bungs, and hose clamps. Works great with steel or aluminum fuel cells.

Includes:

(2) hose clamps,
(1) steel weld bung,
(1) aluminum weld bung
12" of 3/8" or 5/16" high pressure hose.
(1)Unique fitting has a -6 AN flare for your fuel line, 3/8" NPT threads to screw into the weld bung, and a hose barb past the 3/8" NPT threads to attach the pickup hose in the tank to a 3/8" or 5/16" hose barbe

Charts

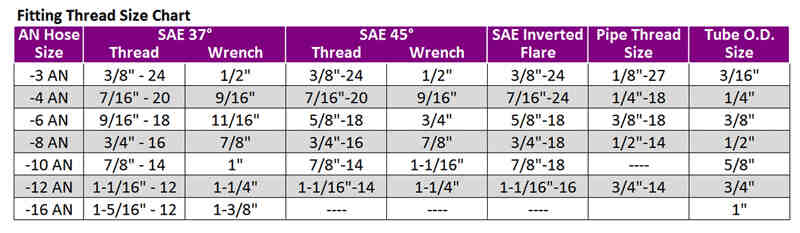

Hose Fitting Sizing Chart (GIF)

Guides & Documents

Fuel Tank Pickup Lines Sizing Chart (91604107)

CARB Warning

For race/ off road use or for use on pre-1966 vehicles.

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

Speedway Motors 91604107-5/16 Specifications

KEY SPECS
MFG. Part #	91604107-5/16
Brand	Speedway Motors
Hose Length	12.00"
Fitting End A	5/16" Hose barb
Fitting End B	-6 AN Male

GENERAL
Sold in Quantity	Kit
