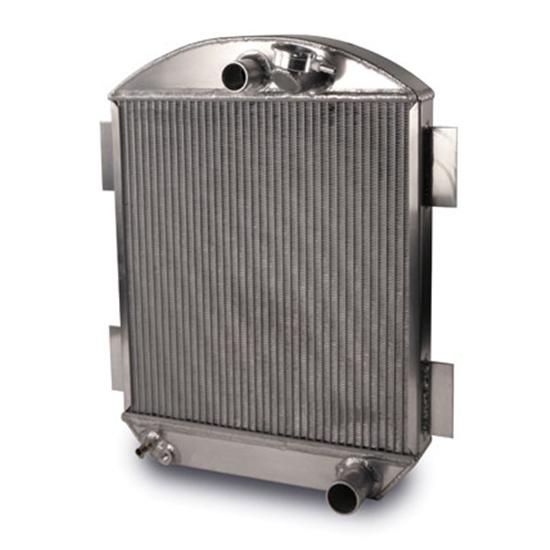

AFCO Universal Street Rod Radiator

#10680140

AFCO Universal Street Rod Radiator

Name: AFCO Universal Street Rod Radiator
Brand: AFCO
SKU: 10680140

Write a Review

1 Question

Fan/shroud Finish:

Select a fan/shroud finish

Finish:

Select a finish

Trans Cooler:

Select a trans cooler

Starting from

$699.99

each

Factory Shipped

$1,463.99

Save $764.00

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, Single Pass Radiator Style, Aluminum

See more details

Key Specs

Radiator Style	Single Pass
Radiator Flow Direction	Downflow
Material Type	Aluminum
Inlet Location	Center
Outlet Location	Lower passenger side

See more specs

Need To Know

This Product Will Ship Free

Shipping Policies & FAQs

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Details

When it comes to the cooling performance of these radiators, they are second to none. AFCO Aluminum radiators allow your car to remain at a constant temperature, which means that power delivery is more consistent. The uniformity of an all-aluminum construction radiator allows for the best pound for pound heat transfer characteristics.

100% Aluminum construction (no epoxy)
Furnace brazed core
Tanks are made of .080” 3003 aluminum for strength and durability
TIG welded by skilled craftsmen
Factory pressure-tested
Filler necks feature screw-in bleed – wont crack or leak with age

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

Item Details

Side Mount Tabs: 4" long & stick out 1-1/2"
Core Thickness: 2-1/2"
Tank Thickness: 3"When selecting Finish, Fan Shroud Finish, and Trans Cooler, here are the abbreviations:

Finish:

S = Satin Std
B = Black
P = Polished

Fan Shroud Finish

NA = No Fan and Shroud Std.
SS = Single Fan, Satin
SB = Single Fan, Black
SP = Single Fan, Polished

Trans Cooler

N = No
Y = Yes

When selecting Finish, Fan Shroud Finish, and Trans Cooler, here are the abbreviations:

Finish:

S = Satin Std
B = Black
P = Polished

Fan Shroud Finish

NA = No Fan and Shroud Std.
SS = Single Fan, Satin
SB = Single Fan, Black
SP = Single Fan, Polished

Trans Cooler

N = No
Y = Yes

Charts

AFCO Street Rod Radiator Installation Instructions (PDF)

Specs

Guides & Documents

Radiators Instruction Sheet (10680140)

Single Pass, Double Pass, Triple Pass Radiators; What’s The Difference?

How To Choose A Radiator For Your Car

CA Prop 65

Specifications

KEY SPECS
MFG. Part #	Select Fan/shroud Finish, Finish and Trans Cooler to see
Brand	AFCO
Radiator Style	Single Pass
Radiator Flow Direction	Downflow
Material Type	Aluminum
Inlet Location	Center
Outlet Location	Lower passenger side
Row Quantity	2
Tube Size	1.00"
Overall Width Range	17.00" to 17.99"
Overall Width	17.75"
Overall Height Range	24.00" to 24.99"
Overall Height	24"
Overall Thickness	Select Fan/shroud Finish, Finish and Trans Cooler to see
Core Width Range	17.00" to 17.99"
Core Width	17.38"
Core Height Range	18.00" to 18.99"
Core Height	18"
Core Thickness	2.25"
Finish	Select Fan/shroud Finish, Finish and Trans Cooler to see
Cooling Fan	Select Fan/shroud Finish, Finish and Trans Cooler to see
Transmission Cooler	Select Fan/shroud Finish, Finish and Trans Cooler to see
Shroud Included	Select Fan/shroud Finish, Finish and Trans Cooler to see
Fan Diameter	16 Inch
CFM	2170 CFM
CFM Range	2,100-2,199 CFM

GENERAL
Filler Neck Height	2.5"
Inlet Size	1.50
Amperage	17.7 amps
Shroud finish	Select Fan/shroud Finish, Finish and Trans Cooler to see
Color	Black
Fan Included	Select Fan/shroud Finish, Finish and Trans Cooler to see
Blade Material	Plastic
Shroud Color	Select Fan/shroud Finish, Finish and Trans Cooler to see
Notes	Select Fan/shroud Finish, Finish and Trans Cooler to see
Sold in Quantity	Each
