AFCO Steal Four Bladed Fan, 18 Inch and Aluminum Shroud
- Engineered for max airflow with minimal HP loss
- Built with 4 blades for greater air flow
- Has a dual bolt pattern to fit most pumps
See More
$137.99
kit
In Stock
$144.99
Save $7.00
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, 18 Inch Fan Diameter, Pull Fan Flow Type
- Engineered for max airflow with minimal HP loss
- Built with 4 blades for greater air flow
- Has a dual bolt pattern to fit most pumps
- This universal aluminum fan shroud kit can be fit to a variety of applications and works perfect with a mechanical fan
- Includes fully-formed shroud of .063" lightweight aircraft aluminum
Comes as a Kit
View Kit Components
See more details
Key Specs
| Brand | Speedway Motors |
| Fan Diameter | 18 Inch |
See more specs
Need To Know
Free Shipping on Orders Over $149
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyDetails
Details
Mechanical Fan
This fan was designed with the proper blade pitch to move the maximum amount of air possible. Four blade fans from automotive suppliers do not offer the correct size and pitch and often have to be altered for racing.
- Max airflow with minimal HP loss
- 4 blades for greater air flow
- 18"
- Dual bolt pattern to fit most pumps
- Powder-coated
Learn more about the importance of using a fan and shroud with our radiators by reading our tech article. Radiator Cooling Performance.

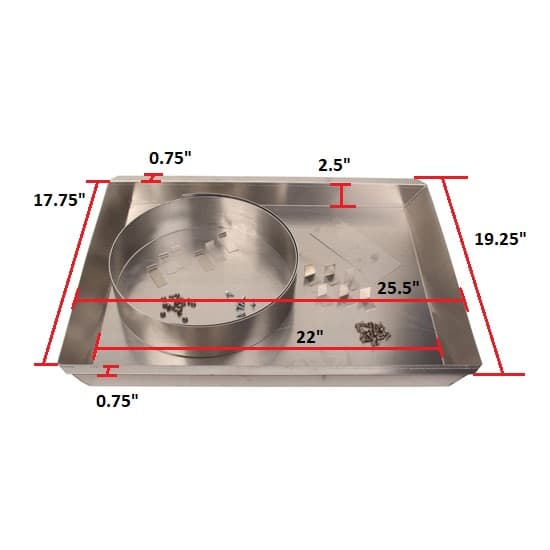

Fan Shroud
These universal fit aluminum fan shroud kits can be built to fit many applications with a belt-driven fan. The adjustable collar will accommodate 15"-20" fan diameters.
Measures 19" tall x 26" wide x 2-5/8" deep. Works good with Speedway & Afco 31" wide radiators.
- Instruction sheet
- Shroud made of 14 gauge aluminum
- Fan Ring, 3” x 65”
- Flat tab, 3” x 7”
- Brackets, 90º (6)
- Screws (6)
- Measures 19" tall x 26" wide x 2-5/8"deep
Learn more about the importance of using a fan and shroud with our radiators by reading our tech article. Radiator Cooling Performance.
Charts
Guides & Documents
Specifications
Specifications
| KEY SPECS | |
|---|---|
| Brand | Speedway Motors |
| Fan Diameter | 18 Inch |
| GENERAL | |
| Fan Quantity | Single |
| Fan Flow Type | Pull |
| Rotation | Clockwise/Standard |
| Blade Count | 4-blade |
| Blade Material | Steel |
| Blade Finish | Powder Coated |
| Blade Color | Black |
| Hub Material | Steel |
| Hub Finish | Powder Coated |
| Hub Color | Black |
| Shaft Diameter | 0.63" |
| Slot Length | 0.63" |
| Slot Width | 0.38" |
| Depth | 1.88" |
| Shroud Included | Yes |
| Sold in Quantity | Kit |
