Part # 10680251

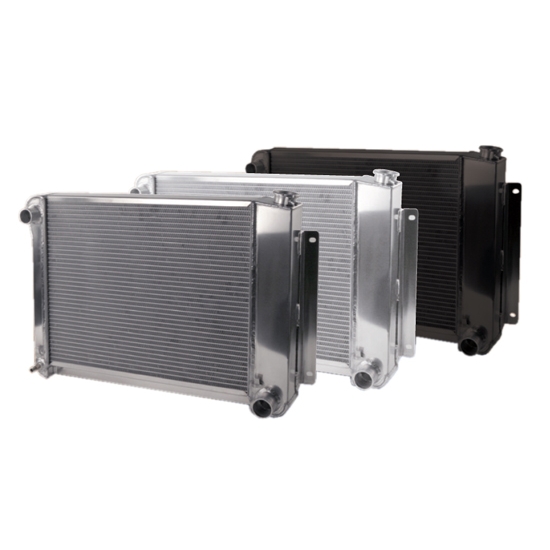

AFCO DirectFit 1967-69 Camaro/Firebird Aluminum Radiators, 28 x 18-3/8 Inch

by

|

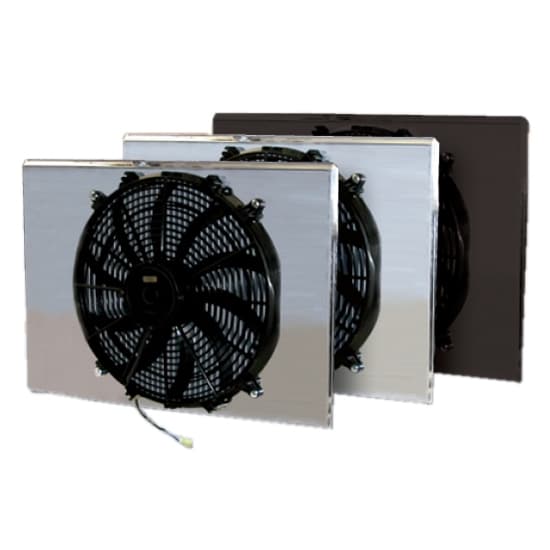

Fan/shroud Finish:

Select a fan/shroud finish

Finish:

Select a finish

Trans Cooler:

Select a trans cooler

Starting from

$684.79

each

Factory Shipped

$1,495.98

Save $811.19


Quantity

Select a vehicle to verify Fitment

Product Summary

67-69 Chevy Camaro, 67-69 Pontiac Firebird, Aluminum

    Key Specs

    MFG. Part #
    Radiator StyleSingle Pass
    Radiator Flow DirectionCrossflow
    Material TypeAluminum
    Finish

    Need To Know

    This Product Will Ship Free

    Need help? Call 800.979.0122

    Quick and Easy Returns

    Details

    AFCO manufactures two different aluminum radiators for the '67-'69 Camaro/Firebird. The 10680250N and 10680251N are built with core widths of 20-7/8" and 23" respectively to match OEM specs. These radiators allow you to replace your original unit with an AFCO aluminum radiator and retain all of your existing hardware, including fan, shroud, regulator location, etc. - NO MODIFICATIONS ARE NECESSARY.

    The smaller 26" wide radiator is ideal for a Small Block car with no A/C. If your car was equipped with the smaller 26" wide but you are running a high performance Small Block with air or a Big Block with air, your cooling answer is the 28" wide radiator.

    • 100% Aluminum construction (no epoxy)
    • Furnace Brazed Core - 2 rows of 1" tubes
    • Tanks are made of .080” 3003 aluminum for strength and durability
    • TIG welded by skilled craftsmen in the USA
    • Factory pressure-tested
    • Billet filler necks feature screw-in bleed – won't crack or leak with age

    Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance



    Charts

    Specifications

    KEY SPECS
    MFG. Part #
    BrandAFCO
    Radiator StyleSingle Pass
    Radiator Flow DirectionCrossflow
    Material TypeAluminum
    Finish
    GENERAL
    Inlet LocationUpper driver side
    Outlet LocationLower passenger side
    Row Quantity2
    Tube Size1.00"
    Overall Width Range
    Overall Width
    Overall Height Range18.00" to 18.99"
    Overall Height18.375"
    Overall Thickness
    Core Width Range
    Core Width
    Core Height Range18.00" to 18.99"
    Core Height18.375"
    Core Thickness2.25"
    Cooling Fan
    Transmission Cooler
    Shroud Included
    Inlet Size1.50
    Outlet Size1.75
    Amperage
    Shroud finish
    ColorBlack
    Fan Included
    Fan Diameter
    CFM
    Blade MaterialPlastic
    Shroud Color
    CFM Range
    Sold in QuantityEach
