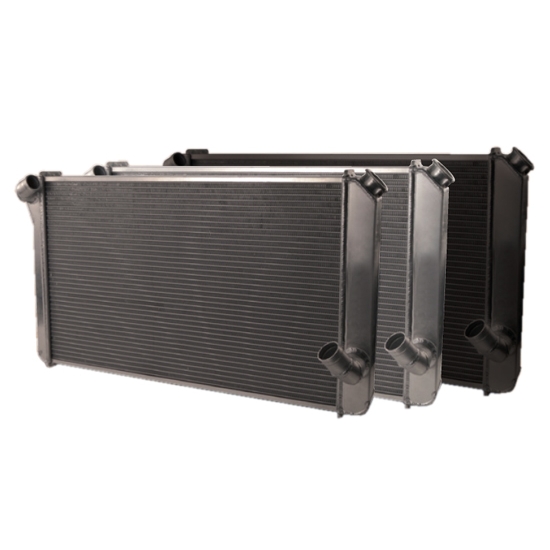

AFCO Direct Fit 1973-76 Corvette Aluminum Radiators
Starting from
$629.99
/each
Factory Shipped
$688.99
Save $59.00
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Key Specs
| Radiator Style | Single Pass |
| Radiator Flow Direction | Crossflow |
| Material Type | Aluminum |
| Inlet Location | Upper driver side |
| Outlet Location | Lower passenger side |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyDetails
Details
AFCO's Direct Fit aluminum radiators will bolt directly into your C3 Vette with no hassles. AFCO ensures that the bolt holes will line up, cooling lines are in the proper locations, and OEM fan shrouds and accessories bolt up with ease. Plus, with two rows of 1" cores perfectly matched to the application, this unit has the capacity to cool both Small Blocks and Big Blocks (even with a power adder!).
- 100% aluminum construction (no epoxy)
- Furnace brazed core - 2 rows of 1" tubes
- Tanks are made of .080” aluminum for strength and durability
- TIG welded by skilled craftsmen
- Factory fan shroud provisions
- Factory pressure-tested
- Billet filler necks feature screw-in bleed – won't crack or leak with age
Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.
When selecting Finish and Fan Shroud Finish, here are the abbreviations:
Finish
S = Satin
B = Black
P = Polished
Fan Shroud Finish
NA = No Fan and Shroud
SS = Single Fan, Satin
SP = Single Fan, Polished
SB = Single Fan, Black
DS = Dual Fan, Satin
DP = Dual Fan, Polished
DB = Dual Fan, Black
When selecting Finish and Fan Shroud Finish, here are the abbreviations:
Finish
S = Satin
B = Black
P = Polished
Fan Shroud Finish
NA = No Fan and Shroud
SS = Single Fan, Satin
SP = Single Fan, Polished
SB = Single Fan, Black
DS = Dual Fan, Satin
DP = Dual Fan, Polished
DB = Dual Fan, Black
Charts
Instructions (PDF)
Specs
- Core Thickness: 2-1/4"
- Inlet Diameter: 1.5" O.D.
- Outlet Diameter: 1.75" O.D.
- Brass Drain Cock Fitting: 1/4" NPT (included)
- Transmission Cooler Ports: 1/4" NPT
- Filler Neck Hose Barb: 1/8" Straight (included)
Guides & Documents
Warranty Information
Click for details
Warranty Information
Click for details
Specifications
Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | Select Fan/shroud Finish, Finish and Trans Cooler to see |
| Brand | AFCO |
| Radiator Style | Single Pass |
| Radiator Flow Direction | Crossflow |
| Material Type | Aluminum |
| Inlet Location | Upper driver side |
| Outlet Location | Lower passenger side |
| Row Quantity | 2 |
| Tube Size | 1.00" |
| Overall Width Range | 32.00" to 32.99" |
| Overall Width | 32.5" |
| Overall Height Range | 18.00" to 18.99" |
| Overall Height | 18.75" |
| Core Height Range | 18.00" to 18.99" |
| Core Height | 18.75" |
| Core Thickness | 2.25" |
| Finish | Select Fan/shroud Finish, Finish and Trans Cooler to see |
| Cooling Fan | Select Fan/shroud Finish, Finish and Trans Cooler to see |
| Transmission Cooler | Select Fan/shroud Finish, Finish and Trans Cooler to see |
| Shroud Included | Select Fan/shroud Finish, Finish and Trans Cooler to see |
| Inlet Size | Select Fan/shroud Finish, Finish and Trans Cooler to see |
| Outlet Size | 1.75 |
| GENERAL | |
| Amperage | Select Fan/shroud Finish, Finish and Trans Cooler to see |
| Shroud finish | Select Fan/shroud Finish, Finish and Trans Cooler to see |
| Color | Black |
| Fan Included | Select Fan/shroud Finish, Finish and Trans Cooler to see |
| Fan Diameter | Select Fan/shroud Finish, Finish and Trans Cooler to see |
| CFM | Select Fan/shroud Finish, Finish and Trans Cooler to see |
| Blade Material | Plastic |
| Shroud Color | Select Fan/shroud Finish, Finish and Trans Cooler to see |
| CFM Range | Select Fan/shroud Finish, Finish and Trans Cooler to see |
| Sold in Quantity | Each |
