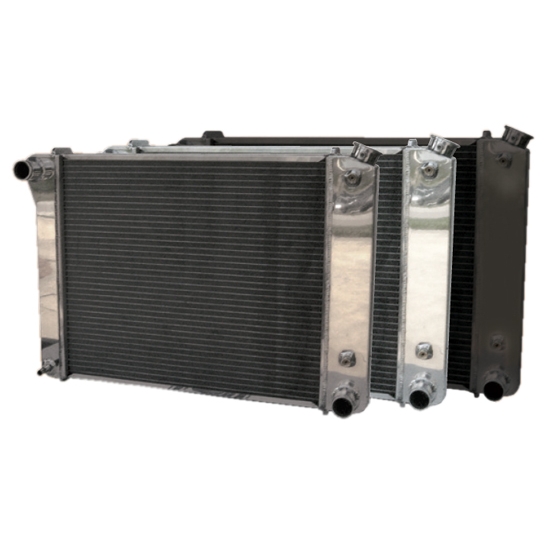

The 1968-1974 second generation Nova utilized a cross flow saddle mount radiator in two different core sizes. Some standard models were fitted with a 20-3/8" core while Big Blocks and most Small Blocks received the 23" core. AFCO engineered these radiators to fit in the stock location of the 23" radiator while still retaining the factory fan shroud. No modifications to the vehicle are required.

Built-in mounting brackets w/ pre-drilled holes
Factory fan shroud provisions
Inlets and outlets are factory-style and in stock locations
Billet filler neck offers strength and higher quality appearance over stamped
Inlets and outlets are positioned correctly for ease of flow
100% aluminum construction (no epoxy)
Furnace brazed core - 2 rows of 1" tubes
TIG welded by skilled craftsmen

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

When selecting Finish and Fan Shroud Finish, here are the abbreviations:

Finish

S = Satin
B = Black
P = Polished

Fan Shroud Finish

NA = No Fan and Shroud
SS = Single Fan, Satin
SP = Single Fan, Polished
SB = Single Fan, Black
DS = Dual Fan, Satin
DP = Dual Fan, Polished
DB = Dual Fan, Black

When selecting Finish and Fan Shroud Finish, here are the abbreviations:

Finish

S = Satin
B = Black
P = Polished

Fan Shroud Finish

NA = No Fan and Shroud
SS = Single Fan, Satin
SP = Single Fan, Polished
SB = Single Fan, Black
DS = Dual Fan, Satin
DP = Dual Fan, Polished
DB = Dual Fan, Black

Charts

Instructions (PDF)

Specs

Core Thickness: 2-1/4"
Inlet Diameter: 1.5"
Outlet Diameter: 1.5"
Brass Drain Cock Fitting: 1/4" NPT (included)
Transmission Cooler Ports: 1/4" NPT
Filler Neck Hose Barb: 1/8" Straight (included)

Guides & Documents

Radiators Installation Instructions (10680288)

Warranty Information

Click for details

Speedway Motors cannot facilitate the return of defective Afco products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Afco at +1 (800)-632-2320.

CA Prop 65

Specifications

KEY SPECS
MFG. Part #	Select Fan/shroud Finish, Finish and Trans Cooler to see
Brand	AFCO
Radiator Style	Single Pass
Radiator Flow Direction	Crossflow
Material Type	Aluminum
Inlet Location	Upper driver side
Outlet Location	Lower passenger side
Row Quantity	2
Tube Size	1.00"
Overall Width Range	25.00" to 25.99"
Overall Width	25.5"
Overall Height Range	17.00" to 17.99"
Overall Height	17.75"
Overall Thickness	6"
Core Width Range	22.00" to 22.99"
Core Width	22.5"
Core Height Range	17.00" to 17.99"
Core Height	17.75"
Core Thickness	2.25"
Finish	Select Fan/shroud Finish, Finish and Trans Cooler to see
Cooling Fan	Select Fan/shroud Finish, Finish and Trans Cooler to see
Transmission Cooler	Select Fan/shroud Finish, Finish and Trans Cooler to see
Shroud Included	Select Fan/shroud Finish, Finish and Trans Cooler to see
Inlet Size	Select Fan/shroud Finish, Finish and Trans Cooler to see
Outlet Size	1.75
Radiator Cap Included	No

GENERAL
Amperage	Select Fan/shroud Finish, Finish and Trans Cooler to see
Shroud finish	Select Fan/shroud Finish, Finish and Trans Cooler to see
Color	Black
Fan Included	Select Fan/shroud Finish, Finish and Trans Cooler to see
Fan Diameter	Select Fan/shroud Finish, Finish and Trans Cooler to see
CFM	Select Fan/shroud Finish, Finish and Trans Cooler to see
Blade Material	Plastic
Shroud Color	Select Fan/shroud Finish, Finish and Trans Cooler to see
CFM Range	Select Fan/shroud Finish, Finish and Trans Cooler to see
Sold in Quantity	Each
