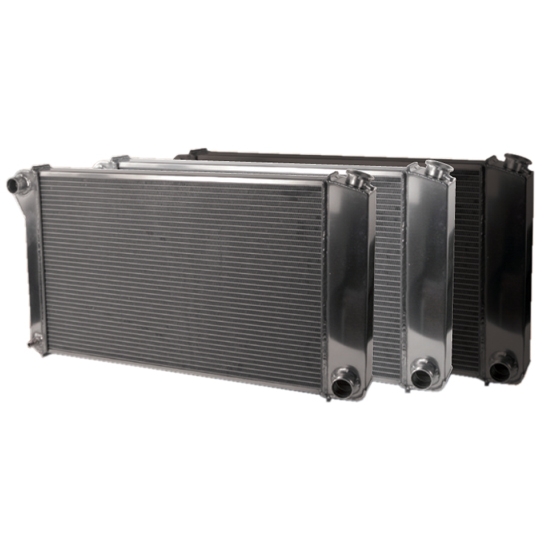

AFCO's Direct Fit Aluminum radiators will bolt directly into your car with no hassles. AFCO ensures that the bolt holes will line up, cooling lines are in the proper locations, and OEM fan shrouds and accessories bolt up with ease. Plus, with two rows of 1" cores perfectly matched to the application, this unit has the capacity to cool both Small Blocks and Big Blocks (even with a power adder!). Be sure to check the application tab for vehicle fitment!

Mount Saddle Width: 2-1/2"
Brass Drain Cock Fitting: 1/4" NPT (included)
Transmission Cooler Ports: 1/4" NPT
Filler Neck Hose Barb: 1/8" Straight (included)
100% aluminum construction (no epoxy)
Furnace brazed core - 2 rows of 1" tubes
Tanks are made of .080” aluminum for strength and durability
TIG welded by skilled craftsmen
Factory fan shroud provisions
Inlet/Outlet in factory locations
Billet filler necks feature screw-in bleed – won't crack or leak with age

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

When selecting Finish and Fan Shroud Finish, here are the abbreviations:

Finish

S = Satin
B = Black
P = Polished

Fan Shroud Finish

NA = No Fan and Shroud
SS = Single Fan, Satin
SP = Single Fan, Polished
SB = Single Fan, Black
DS = Dual Fan, Satin
DP = Dual Fan, Polished
DB = Dual Fan, Black

When selecting Finish and Fan Shroud Finish, here are the abbreviations:

Finish

S = Satin
B = Black
P = Polished

Fan Shroud Finish

NA = No Fan and Shroud
SS = Single Fan, Satin
SP = Single Fan, Polished
SB = Single Fan, Black
DS = Dual Fan, Satin
DP = Dual Fan, Polished
DB = Dual Fan, Black

Application

Fits:

1967-77 Pontiac Lemans
1968-77 Chevelle
1968-74 Pontiac GTO
1968-73 Pontiac Tempest
1969-73 Buick Skylark/GS
1967-77 Olds Cutlass/442
1970-77 Monte Carlo
1971-79 Chevy Fullsize Cars
1972-77 Pontiac Grand Prix
1973-77 Buick Regal

Charts

1967-79 GM Radiator Installation Instructions (PDF)

Specs

Guides & Documents

Radiators Installation Instructions (10680253)

Warranty Information

Click for details

Speedway Motors cannot facilitate the return of defective Afco products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Afco at +1 (800)-632-2320.

CA Prop 65

Specifications

KEY SPECS
MFG. Part #	Select Fan/shroud Finish, Trans Cooler and Finish to see
Brand	AFCO
Radiator Style	Single Pass
Radiator Flow Direction	Crossflow
Material Type	Aluminum
Inlet Location	Upper driver side
Outlet Location	Lower passenger side
Row Quantity	2
Tube Size	1.00"
Overall Width Range	34.00" to 34.99"
Overall Width	34.31"
Overall Height Range	18.00" to 18.99"
Overall Height	18.75"
Overall Thickness	3"
Core Width Range	27.00" to 27.99"
Core Width	27.44"
Core Height Range	17.00" to 17.99"
Core Height	17.75"
Core Thickness	Select Fan/shroud Finish, Trans Cooler and Finish to see
Finish	Select Fan/shroud Finish, Trans Cooler and Finish to see
Cooling Fan	Select Fan/shroud Finish, Trans Cooler and Finish to see
Transmission Cooler	Select Fan/shroud Finish, Trans Cooler and Finish to see
Shroud Included	Select Fan/shroud Finish, Trans Cooler and Finish to see
Inlet Size	Select Fan/shroud Finish, Trans Cooler and Finish to see

GENERAL
Amperage	Select Fan/shroud Finish, Trans Cooler and Finish to see
Shroud finish	Select Fan/shroud Finish, Trans Cooler and Finish to see
Color	Black
Fan Included	Select Fan/shroud Finish, Trans Cooler and Finish to see
Fan Diameter	Select Fan/shroud Finish, Trans Cooler and Finish to see
CFM	Select Fan/shroud Finish, Trans Cooler and Finish to see
Blade Material	Plastic
Shroud Color	Select Fan/shroud Finish, Trans Cooler and Finish to see
CFM Range	Select Fan/shroud Finish, Trans Cooler and Finish to see
Sold in Quantity	Each
