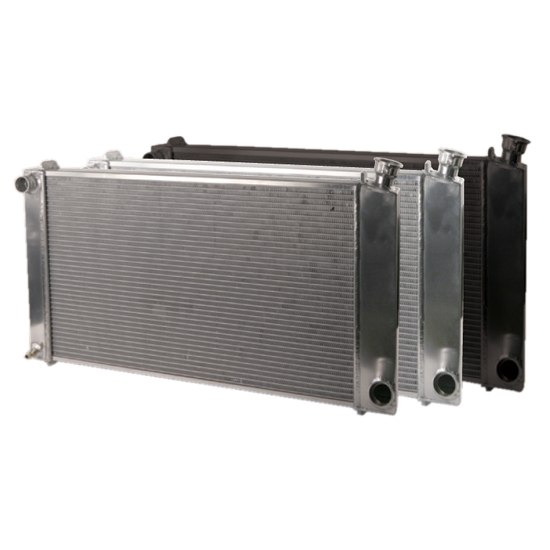

AFCO Direct Fit 1967-72 GM Pickup Aluminum Radiators

-9%

AFCO Direct Fit 1967-72 GM Pickup Aluminum Radiators
AFCO

|

#10680243

AFCO Direct Fit 1967-72 GM Pickup Aluminum Radiators

Finish:

Select a finish

Fan/shroud Finish:

Select a fan/shroud finish

Trans Cooler:

Select a trans cooler

Starting from

$629.99

/each

Factory Shipped

$692.99

Save $63.00


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Single Pass Radiator Style, Aluminum, 2 Row Quantity

    See more details

    Key Specs

    MFG. Part #Select Fan/shroud Finish, Finish and Trans Cooler
    Radiator StyleSingle Pass
    Radiator Flow DirectionCrossflow
    Material TypeAluminum
    Inlet LocationUpper driver side
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    Details

    AFCOs Direct Fit series radiators for Chevy & GMC trucks are designed to cool anything from a standard Small Block all the way up to a high horsepower Big Block. The aluminum cross flow radiator bolts in using factory fan shroud for a simple installation. Fits 2WD and 4WD 1967-72 GM full-size pickup trucks (1/2-ton, 3/4-ton and 1-ton chassis).

    • Built-in mounting brackets w/ pre-drilled holes
    • Factory fan shroud provisions
    • Inlets and outlets are factory-style and in stock locations
    • Billet filler neck offers strength and higher quality appearance over stamped
    • Inlets and outlets are positioned correctly for ease of flow
    • 100% aluminum construction (no epoxy)
    • Furnace brazed core - 2 rows of 1" tubes
    • TIG welded by skilled craftsmen

    Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

    Item Details

    *Please see Notes tab for index abbreviations.*
    Brass Drain Cock Fitting: 1/4" NPT (included)
    Transmission Cooler Ports: 1/4" NPT
    Filler Neck Hose Barb: 1/8" Straight (included)

    When selecting Finish, Fan Shroud Finish, and Trans Cooler, here are the abbreviations:

    Finish

    • S = Satin
    • B = Black
    • P = Polished

    Fan Shroud Finish

    • NA = No Fan and Shroud
    • SS = Single Fan, Satin
    • SP = Single Fan, Polished
    • SB = Single Fan, Black
    • DS = Dual Fan, Satin
    • DP = Dual Fan, Polished
    • DB = Dual Fan, Black

    Trans Cooler

    • N = No
    • Y = Yes

    When selecting Finish, Fan Shroud Finish, and Trans Cooler, here are the abbreviations:

    Finish

    • S = Satin
    • B = Black
    • P = Polished

    Fan Shroud Finish

    • NA = No Fan and Shroud
    • SS = Single Fan, Satin
    • SP = Single Fan, Polished
    • SB = Single Fan, Black
    • DS = Dual Fan, Satin
    • DP = Dual Fan, Polished
    • DB = Dual Fan, Black

    Trans Cooler

    • N = No
    • Y = Yes

    Charts

    Warranty Information

    Click for details

    Speedway Motors cannot facilitate the return of defective Afco products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Afco at +1 (800)-632-2320.

    Specifications

    KEY SPECS
    MFG. Part #Select Fan/shroud Finish, Finish and Trans Cooler to see
    BrandAFCO
    Radiator StyleSingle Pass
    Radiator Flow DirectionCrossflow
    Material TypeAluminum
    Inlet LocationUpper driver side
    Outlet LocationLower passenger side
    Row Quantity2
    Tube Size1.00"
    Overall Width Range34.00" to 34.99"
    Overall Width34.13"
    Overall Height Range16.00" to 16.99"
    Overall Height16.88"
    Overall Thickness3"
    Core Width Range27.00" to 27.99"
    Core Width27.44"
    Core Height Range16.00" to 16.99"
    Core Height16.875"
    Core Thickness2.25"
    FinishSelect Fan/shroud Finish, Finish and Trans Cooler to see
    Cooling FanSelect Fan/shroud Finish, Finish and Trans Cooler to see
    Transmission CoolerSelect Fan/shroud Finish, Finish and Trans Cooler to see
    Shroud IncludedSelect Fan/shroud Finish, Finish and Trans Cooler to see
    Inlet SizeSelect Fan/shroud Finish, Finish and Trans Cooler to see
    GENERAL
    Sold in QuantityEach
    Filler Neck Height1.94"
    AmperageSelect Fan/shroud Finish, Finish and Trans Cooler to see
    Shroud finishSelect Fan/shroud Finish, Finish and Trans Cooler to see
    ColorBlack
    Fan IncludedSelect Fan/shroud Finish, Finish and Trans Cooler to see
    Fan DiameterSelect Fan/shroud Finish, Finish and Trans Cooler to see
    CFMSelect Fan/shroud Finish, Finish and Trans Cooler to see
    Blade MaterialPlastic
    Shroud ColorSelect Fan/shroud Finish, Finish and Trans Cooler to see
    CFM RangeSelect Fan/shroud Finish, Finish and Trans Cooler to see

    Questions & Answers

    1 Question • 1 Answer

    Is the fan a pusher or a puller?
