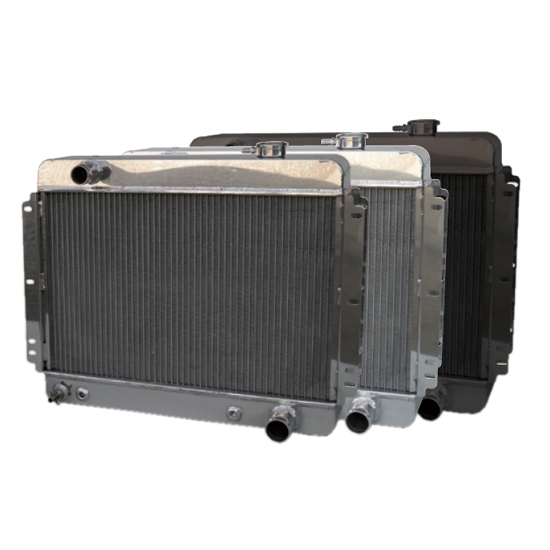

AFCO Direct Fit 1962-67 Chevy II Nova Radiators, Downflow
AFCO Direct Fit 1962-67 Chevy II Nova Radiators, Downflow
AFCO

|

#10680286

AFCO Direct Fit 1962-67 Chevy II Nova Radiators, Downflow

Finish:

Select a finish

Fan/shroud Finish:

Select a fan/shroud finish

Trans Cooler:

Select a trans cooler

Starting from

Factory Shipped


This item is currently not available

Shop all AFCO Direct Fit Aluminum Radiators

Product Summary

Single Pass Radiator Style, Aluminum, 2 Row Quantity

    See more details

    Key Specs

    MFG. Part #Select Fan/shroud Finish, Finish and Trans Cooler
    Radiator StyleSingle Pass
    Radiator Flow DirectionDownflow
    Material TypeAluminum
    Inlet LocationUpper driver side
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    Details

    The '62-'67 Nova continues to be the choice of many car builders today for their ability to achieve high horsepower-to-weight ratios. AFCO designed these OEM-style vertical core radiators to maintain the OEM styling, while gaining increased cooling capacity. It bolts into the stock mounting hole locations for simple installation. No cutting or drilling is required.

    • Built-in mounting brackets w/ pre-drilled holes
    • Factory fan shroud provisions
    • Inlets and outlets are factory-style and in stock locations
    • Billet filler neck offers strength and higher quality appearance over stamped
    • Inlets and outlets are positioned correctly for ease of flow
    • 100% aluminum construction (no epoxy)
    • Furnace brazed core - 2 rows of 1" tubes
    • TIG welded by skilled craftsmen

    Note: Use 1966-67 thermostat housing and upper hose. The 6-Cylinder shroud will not fit with the bracket assembly on this radiator.

    Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

    When selecting Finish and Fan Shroud Finish, here are the abbreviations:

    Finish

        S = Satin
        B = Black
        P = Polished


    Fan Shroud Finish

        NA = No Fan and Shroud
        SS = Single Fan, Satin
        SP = Single Fan, Polished
        SB = Single Fan, Black
        DS = Dual Fan, Satin
        DP = Dual Fan, Polished

    DB =  Dual Fan, Black

    F/SS/Y= Fan Shroud Only

    When selecting Finish and Fan Shroud Finish, here are the abbreviations:

    Finish

        S = Satin
        B = Black
        P = Polished


    Fan Shroud Finish

        NA = No Fan and Shroud
        SS = Single Fan, Satin
        SP = Single Fan, Polished
        SB = Single Fan, Black
        DS = Dual Fan, Satin
        DP = Dual Fan, Polished

    DB =  Dual Fan, Black

    F/SS/Y= Fan Shroud Only

    Charts

    Specs

    • Overall Height:  20-1/4"
    • Overall Width:  23-1/4"
    • Brackets for shroud and mount to cradle are 25" on center holes
    • Core Thickness:  2-1/4"
    • Inlet Diameter:  1.5"
    • Outlet Diameter:  1.75"
    • Brass Drain Cock Fitting:  1/4" NPT (included)
    • Transmission Cooler Ports:  1/4" NPT
    • Filler Neck Hose Barb:  1/8" Straight (included)

    Warranty Information

    Click for details

    Speedway Motors cannot facilitate the return of defective Afco products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Afco at +1 (800)-632-2320.

    Specifications

    KEY SPECS
    MFG. Part #Select Fan/shroud Finish, Finish and Trans Cooler to see
    BrandAFCO
    Radiator StyleSingle Pass
    Radiator Flow DirectionDownflow
    Material TypeAluminum
    Inlet LocationUpper driver side
    Outlet LocationLower passenger side
    Row Quantity2
    Tube Size1.00"
    Overall Width Range23.00" to 23.99"
    Overall WidthSelect Fan/shroud Finish, Finish and Trans Cooler to see
    Overall Height RangeSelect Fan/shroud Finish, Finish and Trans Cooler to see
    Overall HeightSelect Fan/shroud Finish, Finish and Trans Cooler to see
    Overall ThicknessSelect Fan/shroud Finish, Finish and Trans Cooler to see
    Core Width Range22.00" to 22.99"
    Core Width22.25"
    Core Height Range17.00" to 17.99"
    Core Height17"
    Core Thickness2.25"
    FinishSelect Fan/shroud Finish, Finish and Trans Cooler to see
    Cooling FanSelect Fan/shroud Finish, Finish and Trans Cooler to see
    Transmission CoolerSelect Fan/shroud Finish, Finish and Trans Cooler to see
    Shroud IncludedSelect Fan/shroud Finish, Finish and Trans Cooler to see
    Inlet SizeSelect Fan/shroud Finish, Finish and Trans Cooler to see
    Outlet SizeSelect Fan/shroud Finish, Finish and Trans Cooler to see
    Radiator Cap IncludedNo
    GENERAL
    Sold in QuantityEach
    NotesIncludes fan. For AFCO radiator with trans cooler.
    AmperageSelect Fan/shroud Finish, Finish and Trans Cooler to see
    Shroud finishSelect Fan/shroud Finish, Finish and Trans Cooler to see
    ColorBlack
    Fan IncludedSelect Fan/shroud Finish, Finish and Trans Cooler to see
    Fan DiameterSelect Fan/shroud Finish, Finish and Trans Cooler to see
    CFMSelect Fan/shroud Finish, Finish and Trans Cooler to see
    Blade MaterialPlastic
    Shroud ColorSelect Fan/shroud Finish, Finish and Trans Cooler to see
    CFM RangeSelect Fan/shroud Finish, Finish and Trans Cooler to see

    Questions & Answers

    3 Questions • 3 Answers

    I have a 383 stroker twin turbo sbc. What are the hp ratings on these and what which would work best in a 64 Chevy II ? I am looking for a set up with a electric fan setup

    by DARoss

    • 10 years ago

    1 answer

    View Answer

    Will this work well with 350 V8?

    by leadfoot

    • 10 years ago

    1 answer

    View Answer

    Is it for automatic hook-up

    by larry rebuilding19 63 nova stationwagon

    • 10 years ago

    1 answer

    View Answer

    3 of 3 questions shown
