AFCO 80186NDP-U 1.5 Inch Tube Double Pass Radiator 24 x 19 Chevy

Name: AFCO 80186NDP-U 1.5 Inch Tube Double Pass Radiator 24 x 19 Chevy
Brand: AFCO
SKU: 10680186NDPU
Price: 494.99 USD
Availability: InStock

Write a Review

Ask a Question

$494.99

/each

Factory Shipped

$529.99

Save $35.00

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, Double Pass Radiator Style, Aluminum

See more details

Key Specs

MFG. Part #	80186NDP-U
Radiator Style	Double Pass
Radiator Flow Direction	Crossflow
Material Type	Aluminum
Inlet Location	Upper passenger side

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

AFCO 80186NDP-U Details

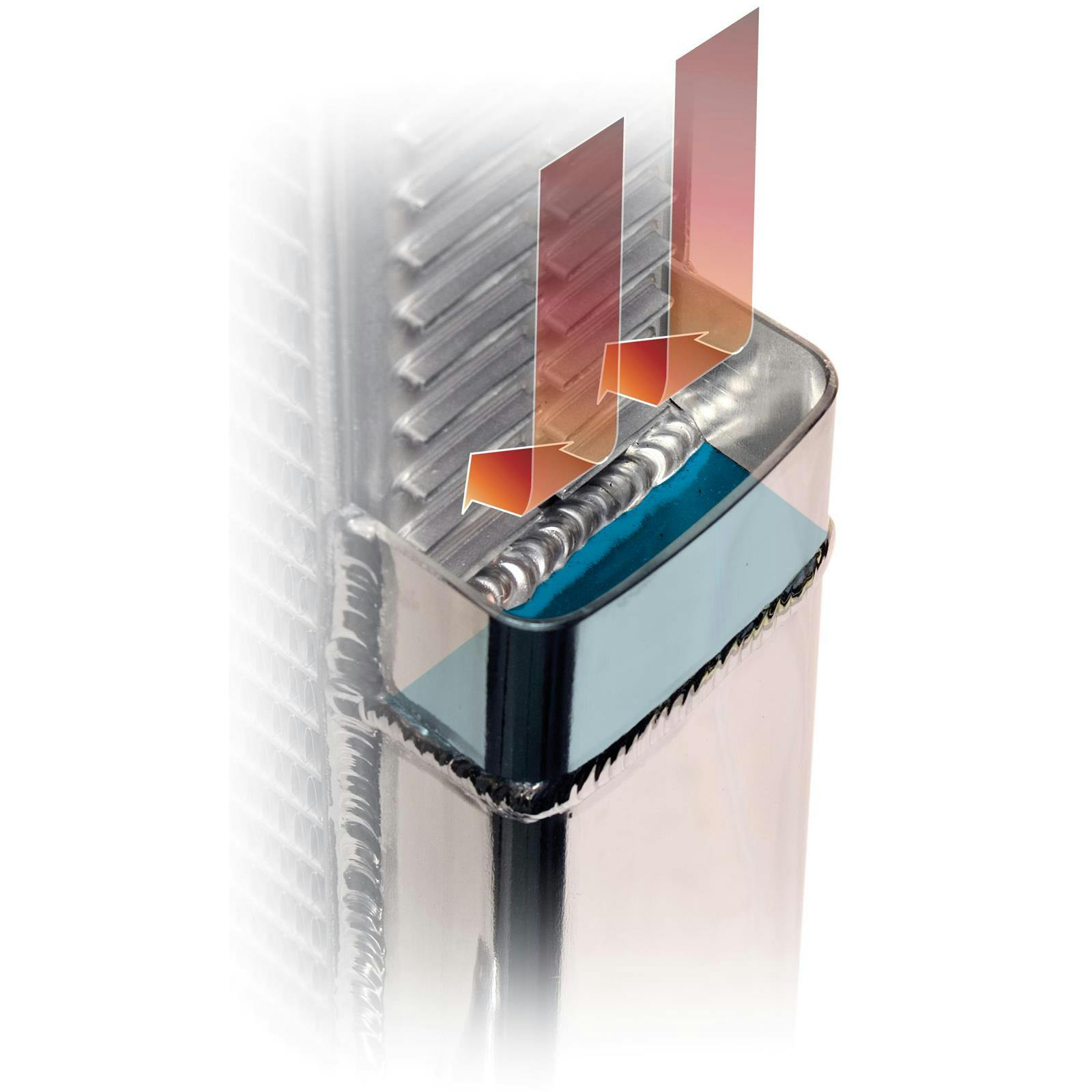

AFCO Racing Products is proud to announce our new lightweight double pass radiator for modifieds.This is the easiest and most cost effective way to shave as much as 10 pounds off the front of your car, allowing you to concentrate ballast and improve handling. The radiator features a new 1.5” thick core for improved air-flow. The new lightweight double pass radiator has the standard features you have come to trust from AFCO, such as furnace brazed tubes with no epoxy. These race proven lightweight radiators fit the same footprint as our standard radiators and installation is simple with no major modifications needed for mounting.

Shaves 10 lbs. from the front of your car.
Features an increased number of tubes and fins in the same height package.
Standard water pressure bung for easy plumbing.

Guides & Documents

Single Pass, Double Pass, Triple Pass Radiators; What’s The Difference?

How To Choose A Radiator For Your Car

Warranty Information

Speedway Motors cannot facilitate the return of defective Afco products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Afco at +1 (800)-632-2320.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

AFCO 80186NDP-U Specifications

KEY SPECS
MFG. Part #	80186NDP-U
Brand	AFCO
Radiator Style	Double Pass
Radiator Flow Direction	Crossflow
Material Type	Aluminum
Inlet Location	Upper passenger side
Outlet Location	Lower passenger side
Row Quantity	1
Tube Size	1.5"
Overall Width Range	24.00" to 24.99"
Overall Width	24"
Overall Height Range	20.00" to 20.99"
Overall Height	20"
Overall Thickness	2"
Core Width Range	20.00" to 20.99"
Core Width	20.5"
Core Height Range	18.00" to 18.99"
Core Height	18.75"
Core Thickness	1.5"
Finish	Satin
Cooling Fan	Not Included
Transmission Cooler	No
Shroud Included	No

GENERAL
Sold in Quantity	Each
Fan Included	No
