Product Summary

Double Pass Radiator Style, Aluminum, 1 Row Quantity

    Key Specs

    MFG. Part #80185NDP-20
    Radiator StyleDouble Pass
    Radiator Flow DirectionCrossflow
    Material TypeAluminum
    FinishSatin

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

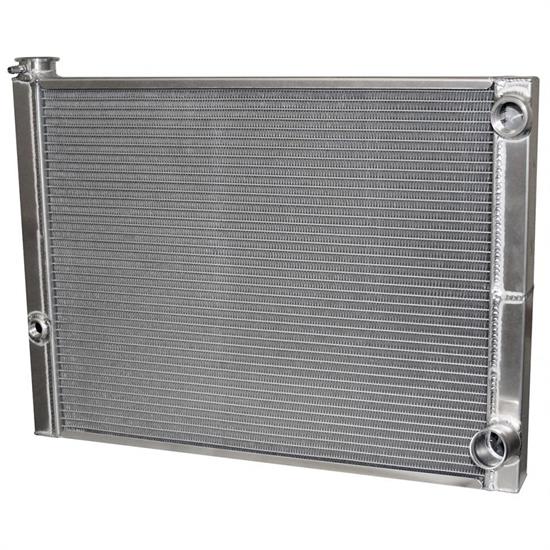

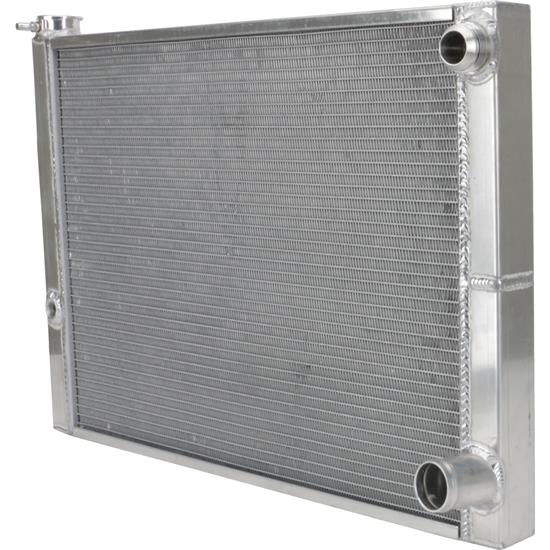

    AFCO Racing is proud to announce the new series of 19” x 27-1/2” lightweight double pass radiators. This is the easiest and most cost effective way to shave as much as 10 pounds off the front of your dirt Late Model, allowing you to concentrate ballast and improve handling. The radiator features a new 1.5” thick core for improved air-flow. These race proven lightweight radiators fit like a standard radiator and installation is simple with no major modifications needed for mounting. All AFCO Radiators are 100% TIG-welded with no epoxy used and are 100% pressure tested.

    • Features an increased number of tubes and fins in the same height package
    • Optimum fin per inch ratio promotes maximum cooling
    • Standard water pressure bung for easy plumbing
    • -20 AN Male right hand inlet, 1-3/4” right hand outlet
    • 20” overall height
    • 24” core width
    • 18-3/4” tank height
    • 27-1/2 tank width
    • 2” tank thickness
    • 10 lbs. dry weight

    Specifications

    KEY SPECS
    MFG. Part #80185NDP-20
    BrandAFCO
    Radiator StyleDouble Pass
    Radiator Flow DirectionCrossflow
    Material TypeAluminum
    FinishSatin
    GENERAL
    Inlet LocationUpper passenger side
    Outlet LocationLower passenger side
    Row Quantity1
    Tube Size1.50"
    Overall Width Range27.00" to 27.99"
    Overall Width27.5"
    Overall Height Range20.00" to 20.99"
    Overall Height20"
    Overall Thickness2.00"
    Core Width Range24.00" to 24.99"
    Core Width24"
    Core Height Range19.00" to 19.99"
    Core Height19"
    Core Thickness1.50"
    Cooling FanNot Included
    Transmission CoolerNo
    Shroud IncludedNo
    Outlet Size1.75
    Inlet Fitting-20 AN Male
    Fan IncludedNo
    Radiator Cap IncludedNo
    Sold in QuantityEach
