AFCO 80184NDP-U Dirt Modified Lightweight Double Pass Radiator

$100 Off

#10680184NDPU

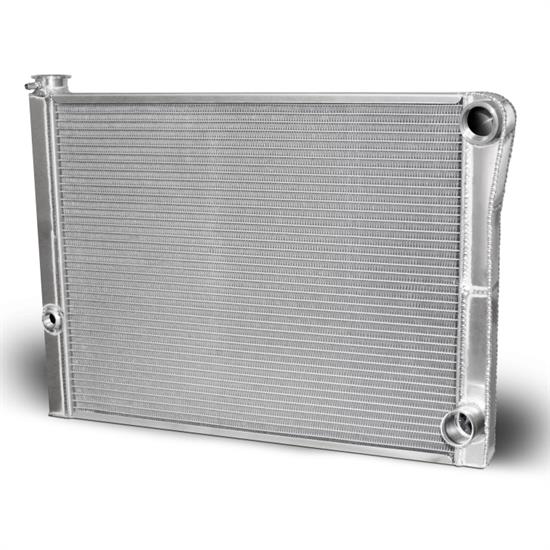

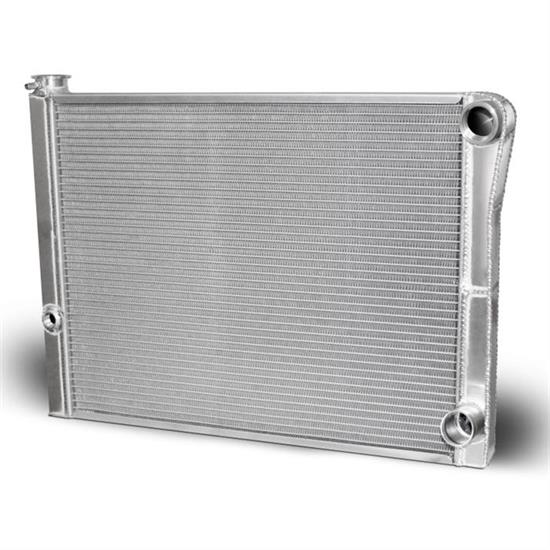

AFCO 80184NDP-U Dirt Modified Lightweight Double Pass Radiator

Name: AFCO 80184NDP-U Dirt Modified Lightweight Double Pass Radiator
Brand: AFCO
SKU: 10680184NDPU
Price: 399.99 USD
Availability: InStock
Rating: 5 (1 reviews)

1 Review

Ask a Question

It features an increased number of tubes and fins in the same height package
The optimum fin per inch ratio promotes maximum cooling
Comes with a standard water pressure bung for easy plumbing

$399.99

/each

In Stock

$499.99

Save $100.00

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Double Pass Radiator Style, Aluminum, 1 Row Quantity

It features an increased number of tubes and fins in the same height package
The optimum fin per inch ratio promotes maximum cooling
Comes with a standard water pressure bung for easy plumbing
Has a -20 AN Female right hand inlet, 1-3/4” right hand outlet
Measures 20” on overall height and the tank is only 2" in depth

See more details

Key Specs

MFG. Part #	80184NDP-U
Radiator Style	Double Pass
Radiator Flow Direction	Crossflow
Material Type	Aluminum
Inlet Location	Upper passenger side

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

AFCO 80184NDP-U Details

AFCO Racing is proud to announce the new series of 19” x 25-7/8” lightweight double pass radiators. This is the easiest and most cost effective way to shave as much as 10 pounds off the front of your dirt Modified, allowing you to concentrate ballast and improve handling. The radiator features a new 1.5” thick core for improved air-flow. These race proven lightweight radiators fit like a standard radiator and installation is simple with no major modifications needed for mounting. All AFCO Radiators are 100% TIG-welded with no epoxy used and are 100% pressure tested.

Features an increased number of tubes and fins in the same height package
Optimum fin per inch ratio promotes maximum cooling
Standard water pressure bung for easy plumbing
-20 AN Female right hand inlet, 1-3/4” right hand outlet
20” overall height
18-3/4” tank height
25-7/8” tank width
22-3/8” core width
2” tank thickness
1/2" NPT water pressure bung in left tank
13 lbs. dry weight

Guides & Documents

Single Pass, Double Pass, Triple Pass Radiators; What’s The Difference?

How To Choose A Radiator For Your Car

Warranty Information

Speedway Motors cannot facilitate the return of defective Afco products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Afco at +1 (800)-632-2320.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

AFCO 80184NDP-U Specifications

KEY SPECS
MFG. Part #	80184NDP-U
Brand	AFCO
Radiator Style	Double Pass
Radiator Flow Direction	Crossflow
Material Type	Aluminum
Inlet Location	Upper passenger side
Outlet Location	Lower passenger side
Row Quantity	1
Tube Size	1.5"
Overall Width Range	25.00" to 25.99"
Overall Width	25.88"
Overall Height Range	20.00" to 20.99"
Overall Height	20"
Overall Thickness	2"
Core Width Range	22.00" to 22.99"
Core Width	22.38"
Core Height Range	18.00" to 18.99"
Core Height	18.75"
Core Thickness	1.5"
Finish	Satin
Cooling Fan	Not Included
Transmission Cooler	No
Shroud Included	No
Outlet Size	1.75
Radiator Cap Included	No

GENERAL
Sold in Quantity	Each
Inlet Fitting	-20 AN Female
Fan Included	No
