Product Summary

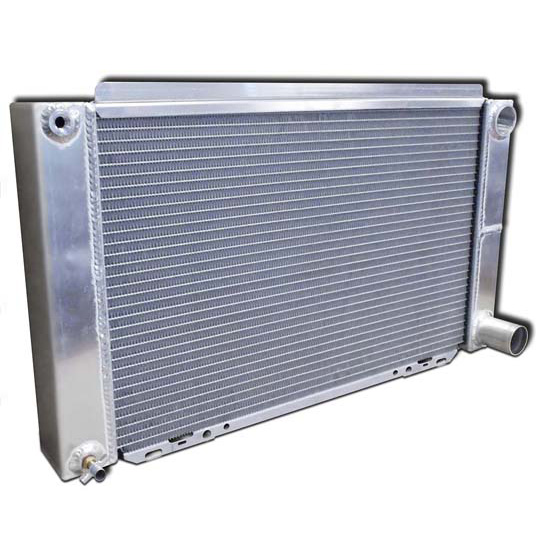

Double Pass Radiator Style, Aluminum, 2 Row Quantity

    Key Specs

    MFG. Part #80122N
    Radiator StyleDouble Pass
    Radiator Flow DirectionCrossflow
    Material TypeAluminum
    FinishSatin

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

    • 100% Pressure Tested
    • Optimum fin per inch ratio for maximum cooling
    • Bleeder and drain included
    • 1" NPT inlet, 1-3/4" outlet
    • Mounting flanges provided for mounting fans
    • TIG welded - No epoxy

    Specifications

    KEY SPECS
    MFG. Part #80122N
    BrandAFCO
    Radiator StyleDouble Pass
    Radiator Flow DirectionCrossflow
    Material TypeAluminum
    FinishSatin
    GENERAL
    Inlet LocationUpper passenger side
    Outlet LocationLower passenger side
    Row Quantity2
    Overall Width Range27.00" to 27.99"
    Overall Width27"
    Overall Height Range15.00" to 15.99"
    Overall Height15"
    Overall Thickness3.00"
    Core Width Range22.00" to 22.99"
    Core Width22.38"
    Core Height Range14.00" to 14.99"
    Core Height14.875"
    Cooling FanNot Included
    Transmission CoolerNo
    Shroud IncludedNo
    Outlet Size1.75
    Inlet Fitting1" NPT
    Fan IncludedNo
    Sold in QuantityEach
