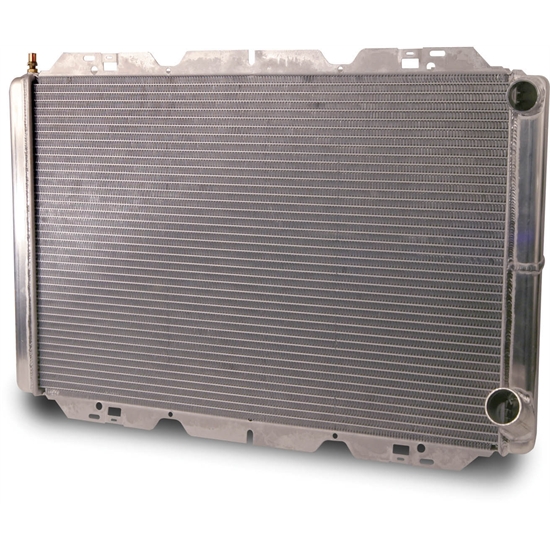

AFCO 80120N Double Pass Racing Radiator, 30-7/8 In. Wide, 1.5 In Inlet

-9%

#10680120N

AFCO 80120N Double Pass Racing Radiator, 30-7/8 In. Wide, 1.5 In Inlet

Engineered to provide more cooling over standard type radiators, with less than 2 oz. of added weight
The common temperature drops are 10-20 degrees when replacing a standard configuration radiator of equal core size
Radiators gain their efficiency by first passing the fluid over the top half of the radiator and then the bottom half

$406.99

/each

In Stock

$449.99

Save $43.00

Order soon, only 1 left in stock!

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Double Pass Radiator Style, Aluminum, 2 Row Quantity

Engineered to provide more cooling over standard type radiators, with less than 2 oz. of added weight
The common temperature drops are 10-20 degrees when replacing a standard configuration radiator of equal core size
Radiators gain their efficiency by first passing the fluid over the top half of the radiator and then the bottom half
Built using a 360 degree TIG-welded baffle that splits the radiator core into two sections
Made entirely of aluminum and weighs only 15 lbs.

See more details

Key Specs

MFG. Part #	80120N
Radiator Style	Double Pass
Radiator Flow Direction	Crossflow
Material Type	Aluminum
Inlet Location	Upper passenger side

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

AFCO 80120N Details

AFCO Double Pass provide more cooling over standard type radiators, with less than 2 oz. of added weight. Common temperature drops are 10-20 degrees when replacing a standard configuration radiator of equal core size. Keeps your mind off the water temp and puts it onto the race track.

Double pass radiators gain their efficiency by first passing the fluid over the top half of the radiator and then the bottom half, giving the radiator the ability to dissipate heat twice.

AFCO uses an exclusive 360 degree TIG-welded baffle that splits the radiator core into two sections. This 360 degree baffle effectively creates two radiators out of one and assures that you wont have any coolant that has entered the radiator but never made it across the core. This is superior to utilizing silicone to seal internal baffles, or worse, a partial weld that allows the coolant to bypass the radiator core completely.

360 Degree Welded - Internal baffle ensures no "short cuts" past the baffle due to internal leaks.

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

Item Details

Filler Location: None
Outlet Angle Up/In: 30°/10°
Dry Weight: 15 LBS
1/4 FMT Pipe Fitted w/ Air Bleed

Specs

Guides & Documents

Single Pass, Double Pass, Triple Pass Radiators; What’s The Difference?

How To Choose A Radiator For Your Car

Warranty Information

Speedway Motors cannot facilitate the return of defective Afco products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Afco at +1 (800)-632-2320.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

AFCO 80120N Specifications

KEY SPECS
MFG. Part #	80120N
Brand	AFCO
Radiator Style	Double Pass
Radiator Flow Direction	Crossflow
Material Type	Aluminum
Inlet Location	Upper passenger side
Outlet Location	Lower passenger side
Row Quantity	2
Tube Size	1.00"
Overall Width Range	30.00" to 30.99"
Overall Width	30.75"
Overall Height Range	21.00" to 21.99"
Overall Height	21.13"
Overall Thickness	3.125"
Core Width Range	27.00" to 27.99"
Core Width	27.38"
Core Height Range	18.00" to 18.99"
Core Height	18.5"
Core Thickness	2.25"
Finish	Satin
Cooling Fan	Not Included
Transmission Cooler	No
Shroud Included	No
Inlet Size	1.5
Radiator Cap Included	No

GENERAL
Sold in Quantity	Each
Notes	1/4" NPT air bleed fitting.
Fan Included	No
