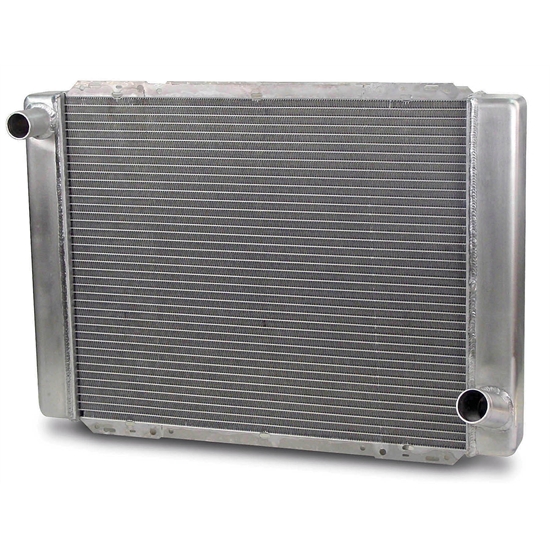

AFCO 80101-1N Universal Racing Radiator, No Filler, 27-1/2 Inch Chevy
$373.99
/each
Factory Shipped
$454.99
Save $81.00
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Key Specs
| MFG. Part # | 801011N |
| Radiator Style | Single Pass |
| Radiator Flow Direction | Crossflow |
| Material Type | Aluminum |
| Inlet Location | Upper driver side |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyAFCO 801011N Details
AFCO 801011N Details
Of all the components in the cooling system, the performance of the radiator is the most critical. Afco understands the vital role the radiator plays in protecting the investment you have in your car. That is why they make no excuses or compromises in constructing the best aftermarket radiators in the industry. Dont trust your pride and joy to anything less than Afco quality.
Afco radiators allow your car to remain at constant temperature, which means that power delivery is more consistent. Using years of experience, advanced design, and thorough testing, Afco radiators are designed to promote optimal air flow and cooling by utilizing appropriate fin count, tube size, core thickness, and fin serration for each particular application.
- 100% Aluminum construction (no epoxy)
- 100% TIG welded
- 100% pressure-tested
- Cast filler necks feature screw-in-bleed, wont crack or leak with age
Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.
Item Details
Filler Loc: NoneOutlet Angle Up/In: 30°/10°
Dry Weight: 13.7 LBS
Charts
106-801011N Instructions (PDF)
Guides & Documents
Warranty Information
Click for details
Warranty Information
Click for details
AFCO 801011N Specifications
AFCO 801011N Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 801011N |
| Brand | AFCO |
| Radiator Style | Single Pass |
| Radiator Flow Direction | Crossflow |
| Material Type | Aluminum |
| Inlet Location | Upper driver side |
| Outlet Location | Lower passenger side |
| Row Quantity | 2 |
| Tube Size | 1.00" |
| Overall Width Range | 27.00" to 27.99" |
| Overall Width | 27.25" |
| Overall Height Range | 19.00" to 19.99" |
| Overall Height | 19.75" |
| Overall Thickness | 3" |
| Core Width Range | 22.00" to 22.99" |
| Core Width | 22.25" |
| Core Height Range | 18.00" to 18.99" |
| Core Height | 18.25" |
| Core Thickness | 2.25" |
| Finish | Satin |
| Cooling Fan | Not Included |
| Transmission Cooler | No |
| Shroud Included | No |
| Inlet Size | 1.5 |
| Radiator Cap Included | No |
| GENERAL | |
| Sold in Quantity | Each |
| Fan Included | No |
