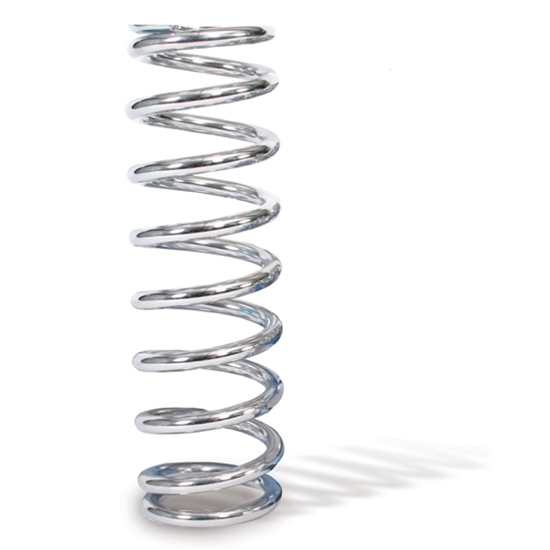

AFCO 23425CR 10 Inch Extreme Chrome Coil-Over Spring, 425 Rate

#10623425CR

AFCO 23425CR 10 Inch Extreme Chrome Coil-Over Spring, 425 Rate

Name: AFCO 23425CR 10 Inch Extreme Chrome Coil-Over Spring, 425 Rate
Brand: AFCO
SKU: 10623425CR
Price: 80.99 USD
Availability: InStock

Write a Review

Ask a Question

Spring Rate:

425 lb

400 lb 350 lb 250 lb 115 lb 150 lb 275 lb 200 lb 175 lb 225 lb 450 lb 325 lb 500 lb 125 lb 140 lb 550 lb 600 lb 165 lb 375 lb

$80.99

/each

In Stock

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, Universal Position, 425 lbs. Spring Rate

See more details

Key Specs

MFG. Part #	23425CR
Position	Universal
Spring Rate	425 lbs.
Free Height	10"
Inside Diameter	2.63"

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

AFCO 23425CR Details

Whether you are building a purpose-built drag strip machine or a beautiful show car, Extreme Chrome coilover springs will provide the strength, durability and show stopping good looks you desire.

Industry exclusive 360° polished wire
High quality REAL chrome finish
Looks great from any angle - not just on the outside edge
2-5/8" inside diameter

All AFCOILS® carry a lifetime warranty to remain within 2% of the original nominal free height.

Charts

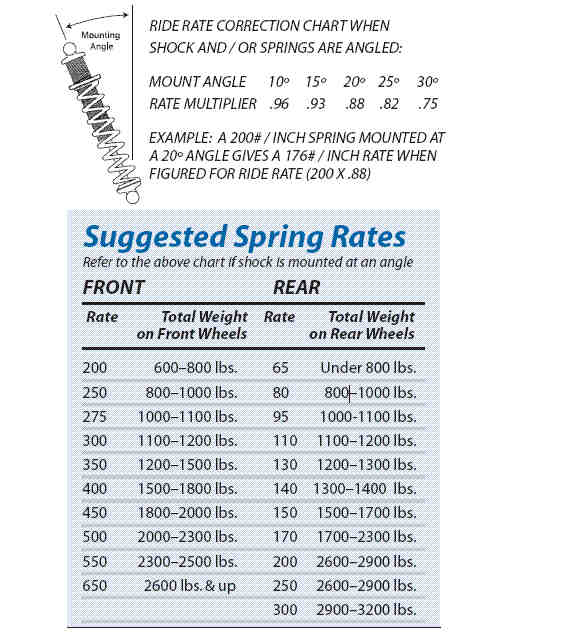

AFCOILS® Spring Rate Guide (GIF)

Coil-Over Mounting Guide (GIF)

Guides & Documents

Coil Springs Technical Information (10623425CR)

Warranty Information

AFCOILS® springs are manufactured using the finest spring material available. They are designed for extended life and consistent performance. They are guaranteed to do the job for which they are designed for as long as they are owned by the original purchaser.

AFCO will replace any AFCOILS® spring that ever exceeds the maximum allowable 2% loss of free height from original nominal specification. One way freight is included.

Guarantee applies to original retail purchaser only.
Damaged springs not covered by warranty.
Spring must be returned to AFCO freight prepaid along with a copy of the original invoice.
No other warranty, either expressed or implied, applies to AFCOILS® springs.

(Warranty not valid without invoice.) Speedway Motors cannot facilitate the return of defective Afco products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Afco at +1 (800)-632-2320.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

AFCO 23425CR Specifications

KEY SPECS
MFG. Part #	23425CR
Brand	AFCO
Position	Universal
Spring Rate	425 lbs.
Free Height	10"
Inside Diameter	2.63"
Material Type	Steel
Finish	Chrome
Color	Natural
Spring Rate Range	400 - 499 lbs.

GENERAL
Sold in Quantity	Each
Progressive Rate Spring	No
Coil Spring End (A)	Square
Coil Spring End (B)	Square
