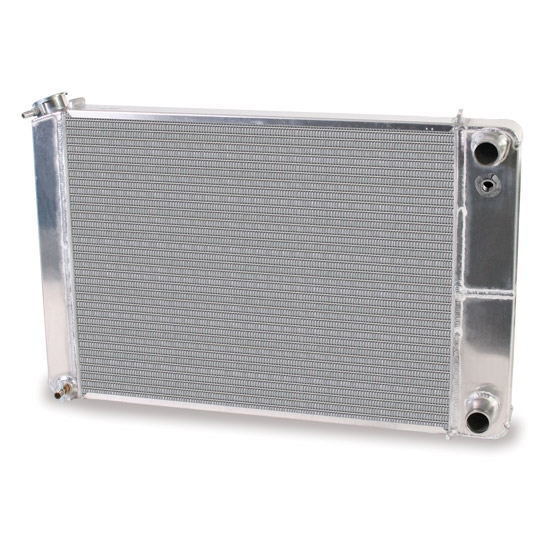

AFCO 1973-1987 Chevy Truck LS Swap Aluminum Radiators

-8%

#10684242

AFCO 1973-1987 Chevy Truck LS Swap Aluminum Radiators

Name: AFCO 1973-1987 Chevy Truck LS Swap Aluminum Radiators
Brand: AFCO
SKU: 10684242
Rating: 4 (1 reviews)

1 Review

1 Question

Finish:

Select a finish

Fan/shroud Finish:

Select a fan/shroud finish

Trans Cooler:

Select a trans cooler

Starting from

$629.99

/each

Factory Shipped

$689.99

Save $60.00

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Double Pass Radiator Style, Aluminum, 2 Row Quantity

See more details

Key Specs

MFG. Part #	Select Fan/shroud Finish, Finish and Trans Cooler
Radiator Style	Double Pass
Radiator Flow Direction	Crossflow
Material Type	Aluminum
Inlet Location	Upper passenger side

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Details

These LS conversion radiators are built with the correct inlet and outlet required for the engine swap. They are 100% TIG welded, 100% pressure tested and use no epoxy or sealers. These double pass radiators were designed for the rigors of racing, but we added the mounts to allow their superior design on the street. After all, there are more important things to be doing than installing your radiator - like enjoying your truck on the road!

Uses the same tools to install your new radiator as you did to remove the old one
Factory fan shroud provisions on many models
Drain plugs included
Billet filler neck offers strength and higher quality appearance over stamped
TIG welded by skilled craftsmen
Inlets and outlets are positioned correctly for ease of flow

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

When selecting Finish and Fan Shroud Finish, here are the abbreviations:

Finish

S = Satin
B = Black
P = Polished

Fan Shroud Finish

NA = No Fan and Shroud
SS = Single Fan, Satin
SP = Single Fan, Polished
SB = Single Fan, Black
DS = Dual Fan, Satin
DP = Dual Fan, Polished
DB = Dual Fan, BlackWhen selecting Finish and Fan Shroud Finish, here are the abbreviations:

Finish

S = Satin
B = Black
P = Polished

Fan Shroud Finish

NA = No Fan and Shroud
SS = Single Fan, Satin
SP = Single Fan, Polished
SB = Single Fan, Black
DS = Dual Fan, Satin
DP = Dual Fan, Polished
DB = Dual Fan, Black

Charts

Instructions (PDF)

Guides & Documents

Radiators Installation Instructions (10684242)

Warranty Information

Speedway Motors cannot facilitate the return of defective Afco products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Afco at +1 (800)-632-2320.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

Specifications

KEY SPECS
MFG. Part #	Select Fan/shroud Finish, Finish and Trans Cooler to see
Brand	AFCO
Radiator Style	Double Pass
Radiator Flow Direction	Crossflow
Material Type	Aluminum
Inlet Location	Upper passenger side
Outlet Location	Lower passenger side
Row Quantity	2
Tube Size	1.00"
Overall Width Range	34.00" to 34.99"
Overall Width	34.19"
Overall Height Range	20.00" to 20.99"
Overall Height	Select Fan/shroud Finish, Finish and Trans Cooler to see
Overall Thickness	3"
Core Width Range	28.00" to 28.99"
Core Width	28.38"
Core Height Range	19.00" to 19.99"
Core Height	19"
Core Thickness	2.25"
Finish	Select Fan/shroud Finish, Finish and Trans Cooler to see
Cooling Fan	Select Fan/shroud Finish, Finish and Trans Cooler to see
Transmission Cooler	Select Fan/shroud Finish, Finish and Trans Cooler to see
Shroud Included	Select Fan/shroud Finish, Finish and Trans Cooler to see
Inlet Size	1.38

GENERAL
Sold in Quantity	Each
Amperage	Select Fan/shroud Finish, Finish and Trans Cooler to see
Shroud finish	Select Fan/shroud Finish, Finish and Trans Cooler to see
Color	Black
Fan Included	Select Fan/shroud Finish, Finish and Trans Cooler to see
Fan Diameter	Select Fan/shroud Finish, Finish and Trans Cooler to see
CFM	Select Fan/shroud Finish, Finish and Trans Cooler to see
Blade Material	Plastic
Shroud Color	Select Fan/shroud Finish, Finish and Trans Cooler to see
CFM Range	Select Fan/shroud Finish, Finish and Trans Cooler to see

Ratings & Reviews

1 Review

Write A Review

1 reviews

Filter by Ratings

Sort Reviews

Great for big block Chevy

4.0

12 years ago

Rigs

Branson mo.

Verified

I used ths on a big block 73 Chevy blazer conversion. The single pass would not cool below 210 on a plus 90 day. This dual pass did the tricks. The truck now runs 180 all the time. There is plenty of reserve for towing. To improve it a1and3/4 bung on the return would be nice. Also the fill flat at highest point and not on angle to get all air out easier.

Would Recommend

Showing 1 of 1 reviews

Questions & Answers

1 Question • 1 Answer

Sort Questions

What are the inlet/outlet sizes for the transmission cooler option on this swap radiator? Are they -6AN?

by Alex

• a year ago

1 answer

View Answer

1 of 1 questions shown
