-7%
-7%
|
#10681276
Starting from
$734.99
/each
Factory Shipped
$797.99
Save $63.00
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
| MFG. Part # | Select Fan/shroud Finish, Finish and Trans Cooler |
| Radiator Style | Single Pass |
| Radiator Flow Direction | Downflow |
| Material Type | Aluminum |
| Inlet Location | Upper passenger side |
Need help?
855.313.9176Quick and Easy Returns

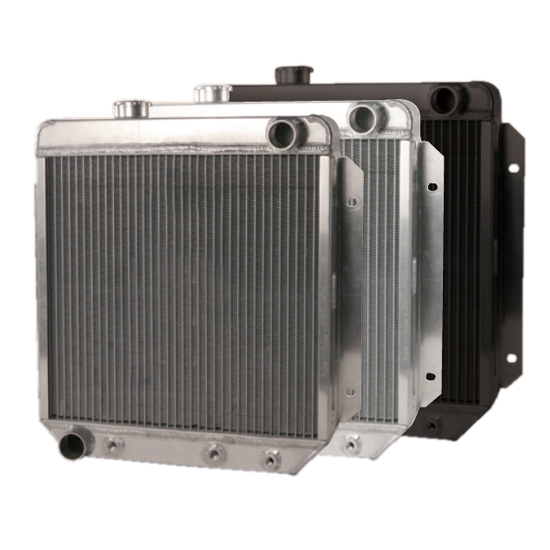

Return PolicyAFCOs Direct Fit Aluminum radiators will bolt directly into your Ford Falcon, Mercury Comet, or Ford Mustang with no hassles. AFCO ensures that the bolt holes will line up, cooling lines are in the proper locations, and OEM fan shrouds and accessories bolt up with ease. Plus, with two rows of 1" cores perfectly matched to the application, this unit has the capacity to cool HiPo Small Blocks (even with a power adder!).
For 1963-1966 Falcon/Comet/Mustang w/ V-8 engine.
Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.
Guides & Documents
CA WARNING:
Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov
| KEY SPECS | |
|---|---|
| MFG. Part # | Select Fan/shroud Finish, Finish and Trans Cooler to see |
| Brand | AFCO |
| Radiator Style | Single Pass |
| Radiator Flow Direction | Downflow |
| Material Type | Aluminum |
| Inlet Location | Upper passenger side |
| Outlet Location | Lower driver side |
| Row Quantity | 2 |
| Tube Size | 1.00" |
| Overall Width Range | 17.00" to 17.99" |
| Overall Width | 17" |
| Overall Height Range | 19.00" to 19.99" |
| Overall Height | 19" |
| Overall Thickness | 3" |
| Core Width Range | 17.00" to 17.99" |
| Core Width | 17" |
| Core Height Range | 15.00" to 15.99" |
| Core Height | 15" |
| Core Thickness | 2.25" |
| Finish | Select Fan/shroud Finish, Finish and Trans Cooler to see |
| Cooling Fan | Select Fan/shroud Finish, Finish and Trans Cooler to see |
| Transmission Cooler | Select Fan/shroud Finish, Finish and Trans Cooler to see |
| Shroud Included | Select Fan/shroud Finish, Finish and Trans Cooler to see |
| Inlet Size | Select Fan/shroud Finish, Finish and Trans Cooler to see |
| GENERAL | |
| Sold in Quantity | Each |
| Amperage | 17.7 amps |
| Shroud finish | Select Fan/shroud Finish, Finish and Trans Cooler to see |
| Color | Black |
| Fan Included | Select Fan/shroud Finish, Finish and Trans Cooler to see |
| Fan Diameter | 16 Inch |
| CFM | 2170 CFM |
| Blade Material | Plastic |
| Shroud Color | Select Fan/shroud Finish, Finish and Trans Cooler to see |
| CFM Range | 2,100-2,199 CFM |
2 Questions • 2 Answers
I cannot tell from the images whether or not the fan is pushing or pulling air through the radiator. Please enlighten me. Thanks
by George
• 5 years ago
1 answer
View Answer
What is the overall thickness of the AFCO 81276-P-SP-N with the fan shroud assembly?
by George
• 6 years ago
1 answer
View Answer
2 of 2 questions shown
