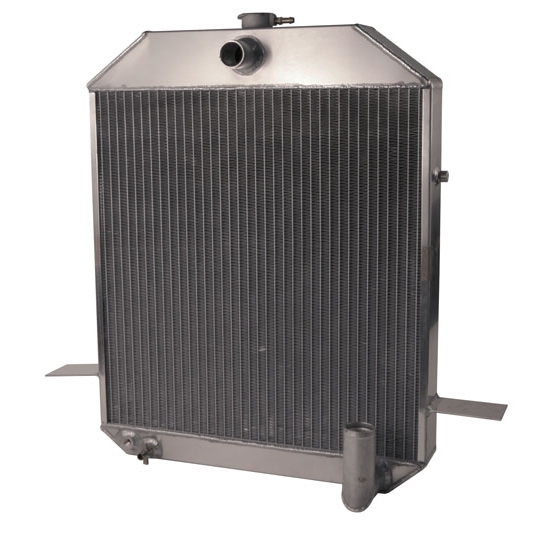

When it comes to the cooling performance of these radiators, they are second to none. AFCO Aluminum radiators allow your car to remain at a constant temperature, which means that power delivery is more consistent. The uniformity of an all-aluminum construction radiator allows for the best pound for pound heat transfer characteristics.

100% Aluminum construction (no epoxy)
Furnace brazed core
Has 2 rows of 1.25" tubes
Tanks are made of .080” 3003 aluminum for strength and durability
TIG welded by skilled craftsmen
Factory pressure-tested
Filler necks feature screw-in bleed – won't crack or leak with age

Fits:

1939-40 Ford Deluxe
1940 Ford
1940-41 Ford Truck

NOTE: Due to the modified nature of these vehicles, some radiators will require a minimum of drilling, etc. to mount.

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

When selecting Finish and Fan Shroud Finish, here are the abbreviations:

Finish

S = Satin
B = Black
P = Polished

Fan Shroud Finish

NA = No Fan and Shroud
SS = Single Fan, Satin
SP = Single Fan, Polished
SB = Single Fan, Black
DS = Dual Fan, Satin
DP = Dual Fan, Polished
DB = Dual Fan, BlackWhen selecting Finish and Fan Shroud Finish, here are the abbreviations:

Finish

S = Satin
B = Black
P = Polished

Fan Shroud Finish

NA = No Fan and Shroud
SS = Single Fan, Satin
SP = Single Fan, Polished
SB = Single Fan, Black
DS = Dual Fan, Satin
DP = Dual Fan, Polished
DB = Dual Fan, Black

Charts

Instructions (PDF)

Guides & Documents

Radiators Installation Instructions (10680172)

Warranty Information

Click for details

Speedway Motors cannot facilitate the return of defective Afco products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Afco at +1 (800)-632-2320.

CA Prop 65

Specifications

KEY SPECS
MFG. Part #	Select Fan/shroud Finish, Finish and Trans Cooler to see
Brand	AFCO
Radiator Style	Single Pass
Radiator Flow Direction	Downflow
Material Type	Aluminum
Inlet Location	Center
Outlet Location	Lower passenger side
Row Quantity	2
Tube Size	1.25"
Overall Width Range	20.00" to 20.99"
Overall Width	20.68"
Overall Height Range	26.00" to 26.99"
Overall Height	26"
Overall Thickness	Select Fan/shroud Finish, Finish and Trans Cooler to see
Core Width Range	20.00" to 20.99"
Core Width	20.25"
Core Height Range	20.00" to 20.99"
Core Height	20.68"
Core Thickness	2.75"
Finish	Select Fan/shroud Finish, Finish and Trans Cooler to see
Cooling Fan	Select Fan/shroud Finish, Finish and Trans Cooler to see
Transmission Cooler	No
Shroud Included	Select Fan/shroud Finish, Finish and Trans Cooler to see
Inlet Size	Select Fan/shroud Finish, Finish and Trans Cooler to see
Radiator Cap Included	No

GENERAL
Filler Neck Height	Select Fan/shroud Finish, Finish and Trans Cooler to see
Amperage	17.7 amps
Shroud finish	Select Fan/shroud Finish, Finish and Trans Cooler to see
Color	Black
Fan Included	Select Fan/shroud Finish, Finish and Trans Cooler to see
Fan Diameter	16 Inch
CFM	2170 CFM
Blade Material	Plastic
Shroud Color	Black
CFM Range	2,100-2,199 CFM
Notes	1/4" NPT fitting for drain. 4.00" mounting tabs on both sides.
Sold in Quantity	Each
