AFCO 1938 Chevy Aluminum Radiator, Chevy Engine

-8%

AFCO

#10680143

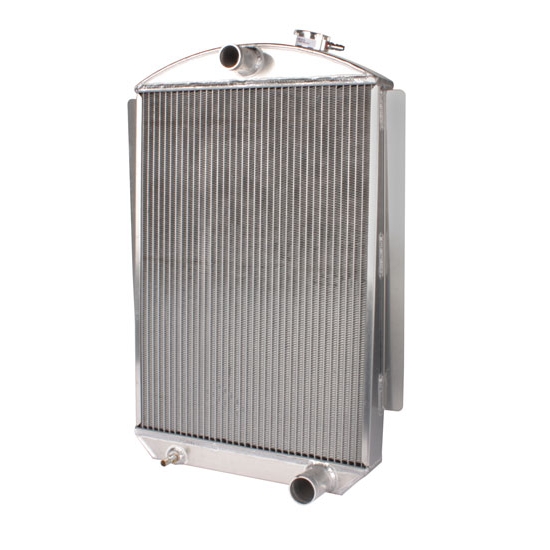

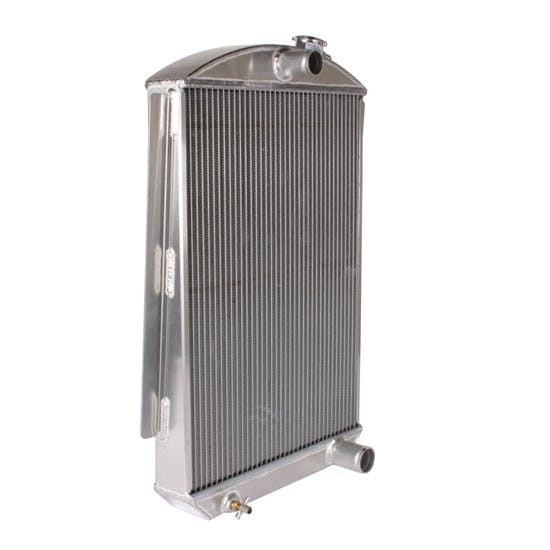

AFCO 1938 Chevy Aluminum Radiator, Chevy Engine

Name: AFCO 1938 Chevy Aluminum Radiator, Chevy Engine
Brand: AFCO
SKU: 10680143
Rating: 5 (2 reviews)

2 Reviews

2 Questions

Finish:

Select a finish

Fan/shroud Finish:

Select a fan/shroud finish

Trans Cooler:

Select a trans cooler

Starting from

$699.99

/each

Factory Shipped

$766.99

Save $67.00

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Single Pass Radiator Style, Aluminum, 2 Row Quantity

See more details

Key Specs

Radiator Style	Single Pass
Radiator Flow Direction	Downflow
Material Type	Aluminum
Inlet Location	Center
Outlet Location	Lower passenger side

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Details

When it comes to the cooling performance of these radiators, they are second to none. AFCO Aluminum radiators allow your car to remain at a constant temperature, which means that power delivery is more consistent. The uniformity of an all-aluminum construction radiator allows for the best pound for pound heat transfer characteristics.

For 1938 Chevrolet passenger cars.

100% Aluminum construction (no epoxy)
Furnace brazed core
Tanks are made of .080” 3003 aluminum for strength and durability
TIG welded by skilled craftsmen
Factory pressure-tested
Filler necks feature screw-in bleed – won't crack or leak with age

NOTE: Due to the modified nature of these vehicles, some radiators will require a minimum of drilling, etc. to mount.

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

When selecting Finish, Fan Shroud Finish, and Trans Cooler, here are the abbreviations:

Finish:

S = Satin Std
B = Black
P = Polished

Fan Shroud Finish

NA = No Fan and Shroud Std.
SS = Single Fan, Satin
SB = Single Fan, Black
SP = Single Fan, Polished

Trans Cooler

N = No
Y = YesWhen selecting Finish, Fan Shroud Finish, and Trans Cooler, here are the abbreviations:

Finish:

S = Satin Std
B = Black
P = Polished

Fan Shroud Finish

NA = No Fan and Shroud Std.
SS = Single Fan, Satin
SB = Single Fan, Black
SP = Single Fan, Polished

Trans Cooler

N = No
Y = Yes

Charts

Instructions (PDF)

Guides & Documents

Radiators Installation Instructions (10680143)

Warranty Information

Click for details

Speedway Motors cannot facilitate the return of defective Afco products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Afco at +1 (800)-632-2320.

CA Prop 65

Specifications

KEY SPECS
MFG. Part #	Select Finish, Fan/shroud Finish and Trans Cooler to see
Brand	AFCO
Radiator Style	Single Pass
Radiator Flow Direction	Downflow
Material Type	Aluminum
Inlet Location	Center
Outlet Location	Lower passenger side
Row Quantity	2
Overall Width Range	17.00" to 17.99"
Overall Width	17"
Overall Height Range	27.00" to 27.99"
Overall Height	27.13"
Core Width Range	17.00" to 17.99"
Core Width	17"
Finish	Select Finish, Fan/shroud Finish and Trans Cooler to see
Cooling Fan	Select Finish, Fan/shroud Finish and Trans Cooler to see
Transmission Cooler	Select Finish, Fan/shroud Finish and Trans Cooler to see
Shroud Included	Select Finish, Fan/shroud Finish and Trans Cooler to see
Fan Diameter	16 Inch
CFM	2170 CFM
CFM Range	2,100-2,199 CFM

GENERAL
Inlet Size	Select Finish, Fan/shroud Finish and Trans Cooler to see
Amperage	17.7 amps
Shroud finish	Select Finish, Fan/shroud Finish and Trans Cooler to see
Color	Black
Fan Included	Select Finish, Fan/shroud Finish and Trans Cooler to see
Blade Material	Plastic
Shroud Color	Select Finish, Fan/shroud Finish and Trans Cooler to see
Sold in Quantity	Each

Ratings & Reviews

2 Reviews

Overall Assessment

Customers highly regard the product for its unbeatable quality and practicality, praising its longevity and flawless performance even after 4 years of use. The product is ideal for car air conditioning in hotter climates, maintaining a steady temperature. Besides, its fit and aesthetics are also applauded, adding value to vintage cars. The product notably outperforms alternatives like brass radiators, offering superior cooling ability, making customers extremely satisfied. It stands as a reliable solution for enhancing car features and driving comfort.

Write A Review

2 reviews

Filter by Ratings

Sort Reviews

Great product. I bought my rad 4 years ago .

5.0

4 years ago

38 chop

Sarasota, Fl.

Been best money spent. Fl. Car with ac. Runs 180 all day. 4 years with no problem.

Would Recommend

I now have a happy 1938 Chevy.

5.0

10 years ago

Happy 38

Sarasota, Fl.

Verified

Rad was the answer for my 38. Looks great fit great. Very happy with rad. Adding AC to car and this is going to make it happen. Had brass rad but didn't work well enough in the Fl. summer temps. Very happy owner.

Would Recommend

Showing 2 of 2 reviews
