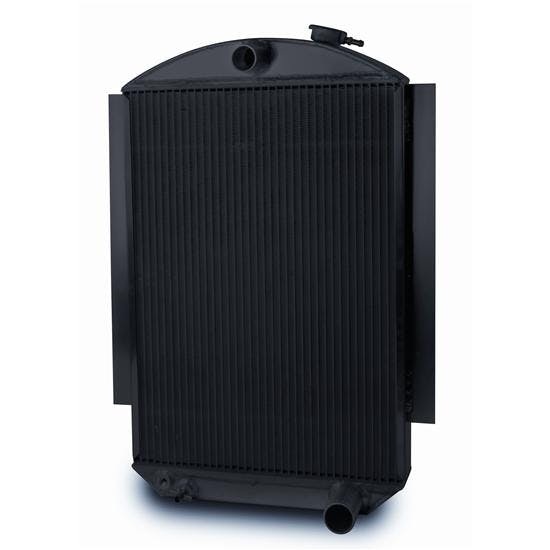

AFCO 1937 and 1939 Chevy Aluminum Radiator, Chevy Engine
AFCO 1937 and 1939 Chevy Aluminum Radiator, Chevy Engine
AFCO

|

#10680144

AFCO 1937 and 1939 Chevy Aluminum Radiator, Chevy Engine

Finish:

Select a finish

Fan/shroud Finish:

Select a fan/shroud finish

Trans Cooler:

Select a trans cooler

Starting from

$784.99

/each

Factory Shipped

$799.99

Save $15.00


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Single Pass Radiator Style, Aluminum, 2 Row Quantity

    See more details

    Key Specs

    Radiator StyleSingle Pass
    Radiator Flow DirectionSelect Fan/shroud Finish, Finish and Trans Cooler
    Material TypeAluminum
    Inlet LocationCenter
    Outlet LocationLower passenger side
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    Details

    When it comes to the cooling performance of these radiators, they are second to none. AFCO Aluminum radiators allow your car to remain at a constant temperature, which means that power delivery is more consistent. The uniformity of an all-aluminum construction radiator allows for the best pound for pound heat transfer characteristics.

    For 1937 and 1939 Chevrolet passenger cars (not 1938 models).

    • 100% Aluminum construction (no epoxy)
    • Furnace brazed core
    • Tanks are made of .080” 3003 aluminum for strength and durability
    • TIG welded by skilled craftsmen
    • Factory pressure-tested
    • Filler necks feature screw-in bleed – won't crack or leak with age
    • Overall Height:  27"
    • Overall Width:  17"
    • Core Height:  22.38"

    NOTE: Due to the modified nature of these vehicles, some radiators will require a minimum of drilling, etc. to mount.

    Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

    When selecting Finish and Fan Shroud Finish, here are the abbreviations:

    Finish

    S = Satin
    B = Black
    P = Polished

    Fan Shroud Finish

    NA = No Fan and Shroud
    SS = Single Fan, Satin
    SP = Single Fan, Polished
    SB = Single Fan, Black
    DS = Dual Fan, Satin
    DP = Dual Fan, Polished
    DB = Dual Fan, BlackWhen selecting Finish and Fan Shroud Finish, here are the abbreviations:

    Finish

    S = Satin
    B = Black
    P = Polished

    Fan Shroud Finish

    NA = No Fan and Shroud
    SS = Single Fan, Satin
    SP = Single Fan, Polished
    SB = Single Fan, Black
    DS = Dual Fan, Satin
    DP = Dual Fan, Polished
    DB = Dual Fan, Black

    Charts

    Warranty Information

    Click for details

    Speedway Motors cannot facilitate the return of defective Afco products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Afco at +1 (800)-632-2320.

    Specifications

    KEY SPECS
    MFG. Part #Select Fan/shroud Finish, Finish and Trans Cooler to see
    BrandAFCO
    Radiator StyleSingle Pass
    Radiator Flow DirectionSelect Fan/shroud Finish, Finish and Trans Cooler to see
    Material TypeAluminum
    Inlet LocationCenter
    Outlet LocationLower passenger side
    Row Quantity2
    Tube Size1.00"
    Overall Width Range16.00" to 16.99"
    Overall Width16.75"
    Overall Height Range26.00" to 26.99"
    Overall Height26"
    Overall ThicknessSelect Fan/shroud Finish, Finish and Trans Cooler to see
    Core Width Range16.00" to 16.99"
    Core Width16.5"
    Core Height Range20.00" to 20.99"
    Core Height20"
    Core Thickness2.25"
    FinishSelect Fan/shroud Finish, Finish and Trans Cooler to see
    Cooling FanSelect Fan/shroud Finish, Finish and Trans Cooler to see
    Transmission CoolerSelect Fan/shroud Finish, Finish and Trans Cooler to see
    Shroud IncludedSelect Fan/shroud Finish, Finish and Trans Cooler to see
    Inlet SizeSelect Fan/shroud Finish, Finish and Trans Cooler to see
    GENERAL
    Filler Neck HeightSelect Fan/shroud Finish, Finish and Trans Cooler to see
    Amperage17.7 amps
    Shroud finishSelect Fan/shroud Finish, Finish and Trans Cooler to see
    ColorBlack
    Fan IncludedSelect Fan/shroud Finish, Finish and Trans Cooler to see
    Fan Diameter16 Inch
    CFM2170 CFM
    Blade MaterialPlastic
    Shroud ColorSelect Fan/shroud Finish, Finish and Trans Cooler to see
    CFM Range2,100-2,199 CFM
    NotesSelect Fan/shroud Finish, Finish and Trans Cooler to see
    Sold in QuantityEach
