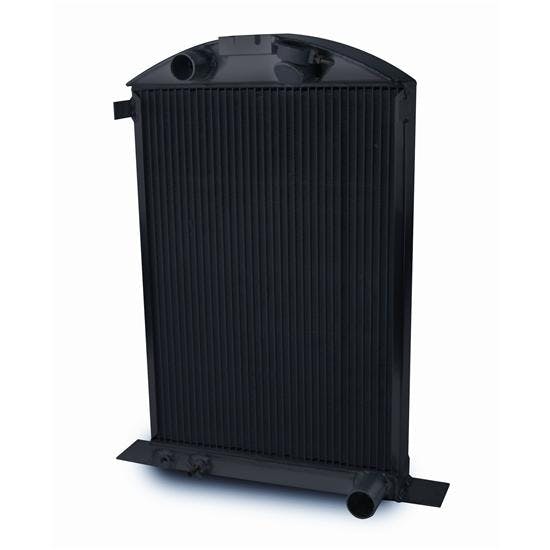

AFCO 1937-38 Ford Aluminum Radiator, Chevy Engine
Starting from
$706.99
/each
In Stock
$808.99
Save $102.00
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Key Specs
| Radiator Style | Single Pass |
| Radiator Flow Direction | Downflow |
| Material Type | Aluminum |
| Inlet Location | Upper driver side |
| Outlet Location | Lower passenger side |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyDetails
Details
When it comes to the cooling performance of these radiators, they are second to none. AFCO Aluminum radiators allow your car to remain at a constant temperature, which means that power delivery is more consistent. The uniformity of an all-aluminum construction radiator allows for the best pound for pound heat transfer characteristics.
- 100% Aluminum construction (no epoxy)
- Furnace brazed core
- Tanks are made of .080” 3003 aluminum for strength and durability
- TIG welded by skilled craftsmen
- Factory pressure-tested
- Filler necks feature screw-in bleed – won't crack or leak with age
NOTE: Due to the modified nature of these vehicles, some radiators will require a minimum of drilling, etc. to mount.
Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.
When selecting Finish and Fan Shroud Finish, here are the abbreviations:
Finish
S = Satin
B = Black
P = Polished
Fan Shroud Finish
NA = No Fan and Shroud
SS = Single Fan, Satin
SP = Single Fan, Polished
SB = Single Fan, Black
DS = Dual Fan, Satin
DP = Dual Fan, Polished
DB = Dual Fan, BlackWhen selecting Finish and Fan Shroud Finish, here are the abbreviations:
Finish
S = Satin
B = Black
P = Polished
Fan Shroud Finish
NA = No Fan and Shroud
SS = Single Fan, Satin
SP = Single Fan, Polished
SB = Single Fan, Black
DS = Dual Fan, Satin
DP = Dual Fan, Polished
DB = Dual Fan, Black
Application
- 1937 Ford
- 1938 Ford
- 1937-39 Ford Std.
Charts
Specs
Guides & Documents
Warranty Information
Click for details
Warranty Information
Click for details
Specifications
Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | Select Finish, Fan/shroud Finish and Trans Cooler to see |
| Brand | AFCO |
| Radiator Style | Single Pass |
| Radiator Flow Direction | Downflow |
| Material Type | Aluminum |
| Inlet Location | Upper driver side |
| Outlet Location | Lower passenger side |
| Row Quantity | 2 |
| Tube Size | Select Finish, Fan/shroud Finish and Trans Cooler to see |
| Overall Width Range | 16.00" to 16.99" |
| Overall Width | 16.5" |
| Overall Height Range | 27.00" to 27.99" |
| Overall Height | 27" |
| Overall Thickness | 4" |
| Core Width Range | 16.00" to 16.99" |
| Core Width | 16.5" |
| Core Height Range | 22.00" to 22.99" |
| Core Height | 22.375" |
| Core Thickness | 2.25" |
| Finish | Select Finish, Fan/shroud Finish and Trans Cooler to see |
| Cooling Fan | Select Finish, Fan/shroud Finish and Trans Cooler to see |
| Transmission Cooler | No |
| Shroud Included | Select Finish, Fan/shroud Finish and Trans Cooler to see |
| Radiator Cap Included | No |
| Fan Diameter | 16 Inch |
| CFM | 2170 CFM |
| CFM Range | 2,100-2,199 CFM |
| GENERAL | |
| Inlet Size | Select Finish, Fan/shroud Finish and Trans Cooler to see |
| Amperage | 17.7 amps |
| Shroud finish | Select Finish, Fan/shroud Finish and Trans Cooler to see |
| Color | Black |
| Fan Included | Select Finish, Fan/shroud Finish and Trans Cooler to see |
| Blade Material | Plastic |
| Shroud Color | Black |
| Sold in Quantity | Each |
